Oil Seal Replacement - Valve Oil Seal / Front Oil Seal

EM-99prose procedure

SR engine (SR20DE/SR20DET) per SR section header.

Continued from EM-98

Valve Oil Seal (Cont'd)

  1. 9
    Apply engine oil to new valve oil seal and install it with Tool.

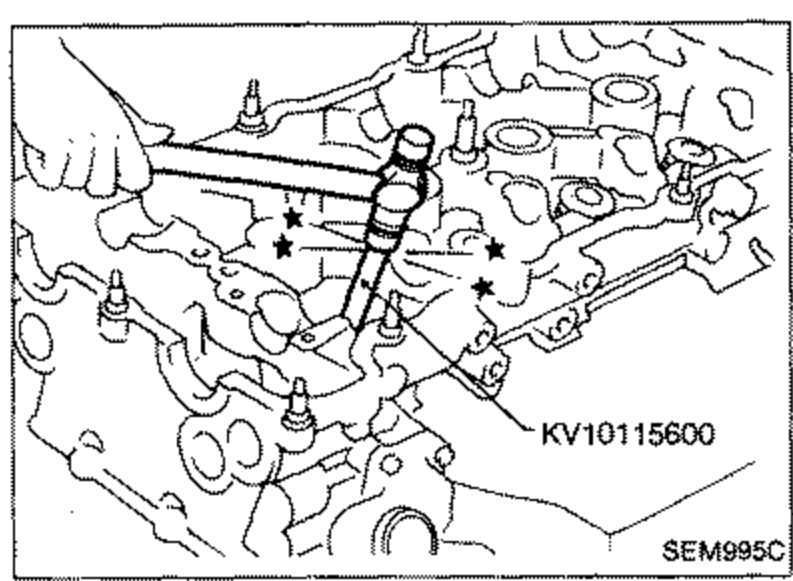

    Cylinder head valve area with Tool KV10115600 installing a new valve oil seal. Star symbols mark seal positions. Label 'KV10115600'.
    SEM995C
Valve oil seal installed height
10.7mm (0.421 in)

Front Oil Seal

  1. 1
    Remove the following parts: Engine under cover; Front R.H. wheel and engine side cover; Drive belts; Crankshaft pulley.
  2. 2
    Remove front oil seal. Be careful not to scratch front cover.
    Be careful not to scratch front cover.
    A hand using a screwdriver-type tool to pry out the front oil seal from the front cover. Illustrates removal of the front oil seal taking care not to scratch the front cover.
    SEM997C
