Timing Chain - Installation (Cont'd)

EM-96prose procedure

SR20DE vs SR20DET distinction: SR20DET adds intercooler support bracket (step 27). Oil filter/power steering pump bracket layout differs between SR20DE and SR20DET (step 26).

Continued from EM-95

Installation (Cont'd)

  1. 25

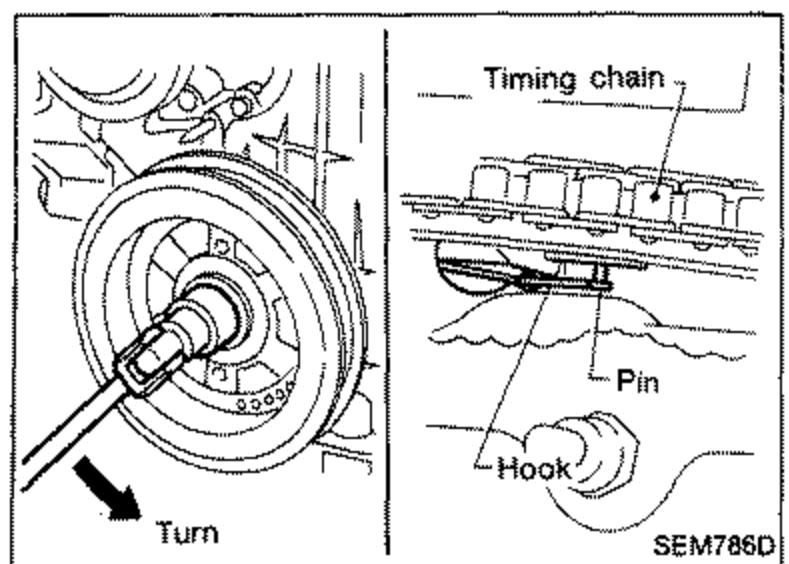

    If hook does not release automatically, turn crankshaft counterclockwise until it does release.
    Two-part view of the crankshaft/timing chain. Left side shows a black arrow labeled 'Turn' indicating to turn the crankshaft counterclockwise. Right side shows the timing chain with 'Pin' and 'Hook' labels, illustrating releasing the tensioner hook.
    SEM786D
  2. 26

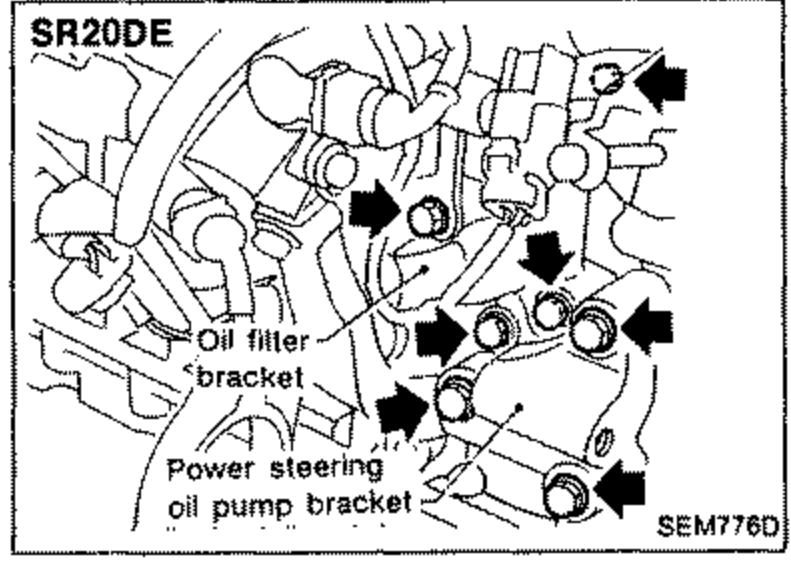

    Install oil filter bracket and power steering oil pump bracket.
    SR20DE engine front showing oil filter bracket and power steering oil pump bracket installation. Black arrows point to mounting bolt locations. Labels 'Oil filter bracket' and 'Power steering oil pump bracket'.
    SEM776D
  3. 27

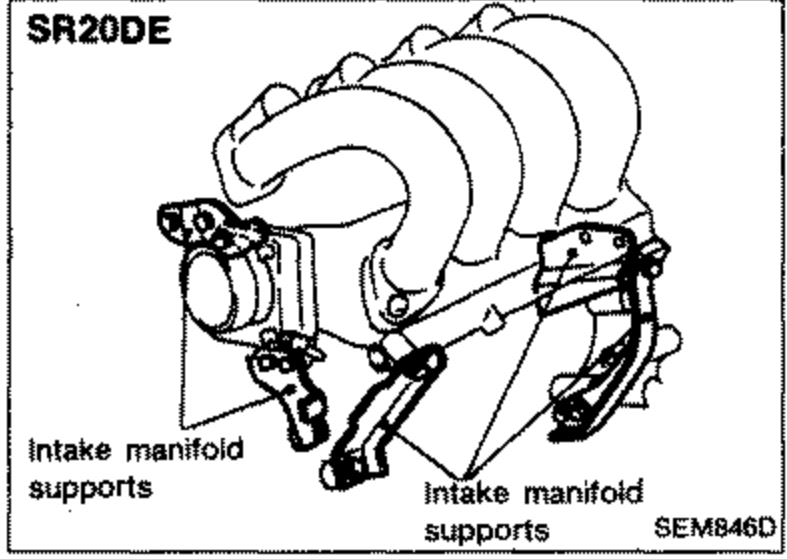

    SR20DE: Install intake manifold supports. SR20DET: Install intake manifold supports and intercooler support bracket.
    SR20DE intake manifold showing intake manifold supports being installed at two lower mounting points, both labeled 'Intake manifold supports'.
    SEM846D
