Intake Manifold - Disassembly and Assembly (Cont'd)

EM-103prose procedure

SR20DE and SR20DET disassembly/assembly procedures presented separately. I.A.A. unit and air chamber are SR20DET-specific.

Continued from EM-102

Disassembly and Assembly (Cont'd)

Disassembly and Assembly - SR20DE (Cont'd)

  1. 2
    Install intake manifold collector.

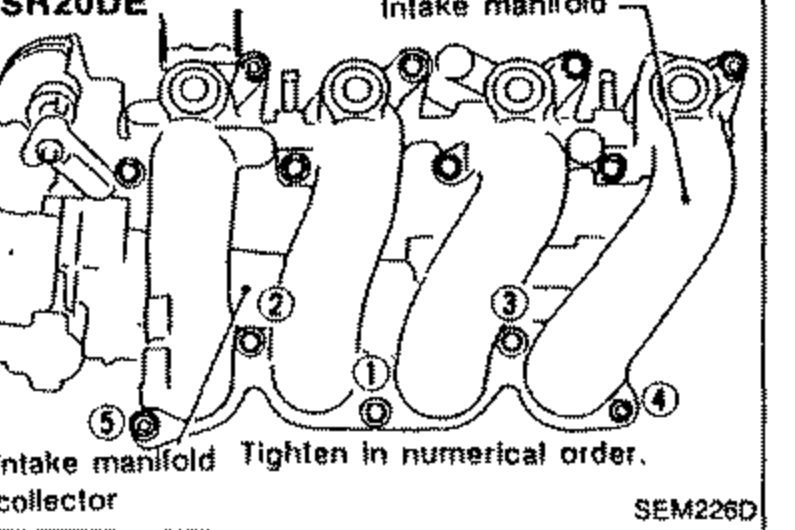

    SR20DE intake manifold collector with circled numbers 1 through 5 indicating bolt tightening order for installation. Labels 'Intake manifold', 'Intake manifold collector', and 'Tighten in numerical order.'
    SEM226D

SR20DET

Disassembly and Assembly - SR20DET

  1. 1
    Remove intake manifold collector.

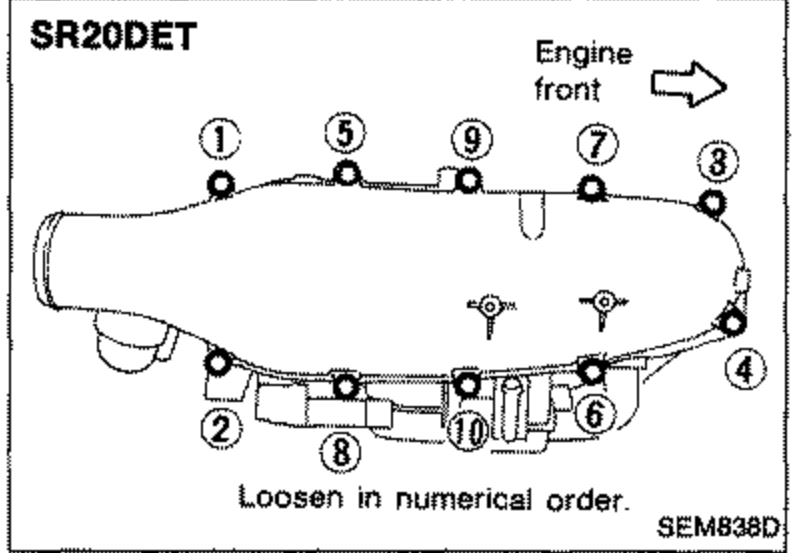

    SR20DET intake manifold collector with circled numbers 1 through 9 indicating bolt loosening order. Labels 'Engine front' with arrow and 'Loosen in numerical order.'
    SEM838D
  2. 2
    Remove air chamber and I.A.A. unit.

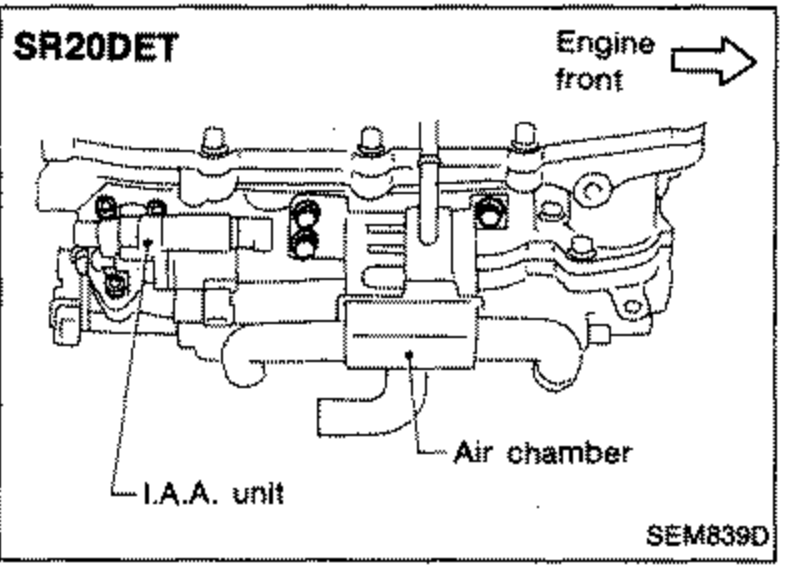

    SR20DET showing the I.A.A. unit and air chamber. Labels 'I.A.A. unit', 'Air chamber', and 'Engine front' with arrow.
    SEM839D
  3. 3
    Remove injector tube assembly. Refer to "Injector Removal and Installation" in EF & EC section.
  4. 4
    Remove intake manifold.

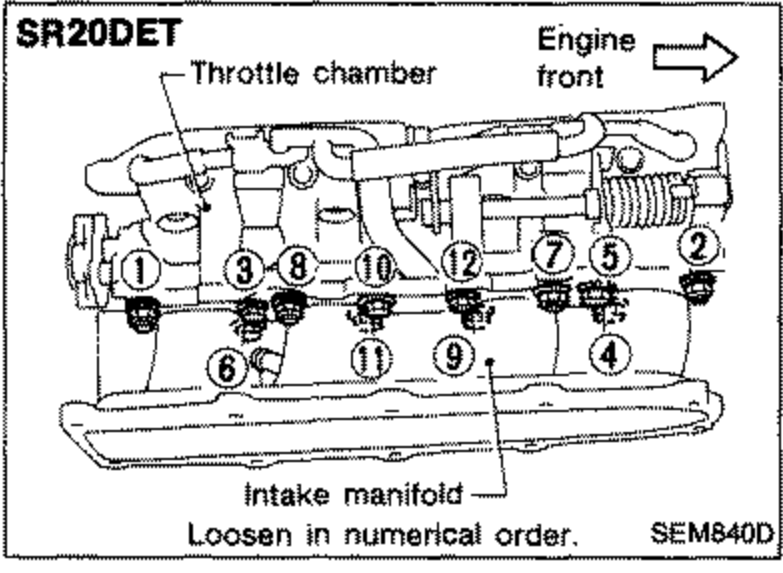

    SR20DET intake manifold with throttle chamber and numbered bolts indicating loosening order. Labels 'Throttle chamber', 'Intake manifold', 'Engine front' with arrow, and 'Loosen in numerical order.'
    SEM840D
  5. 5
    Install intake manifold.

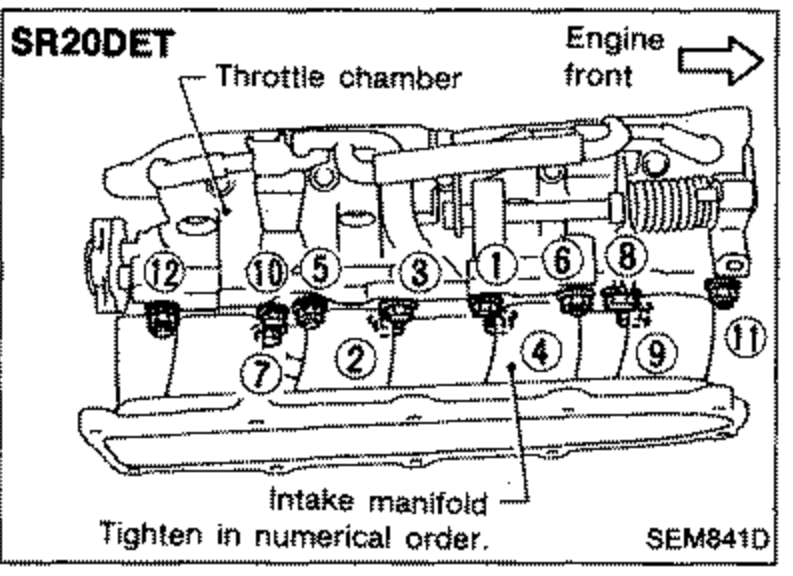

    SR20DET intake manifold with throttle chamber and numbered bolts indicating tightening order for installation. Labels 'Throttle chamber', 'Intake manifold', 'Engine front' with arrow, and 'Tighten in numerical order.'
    SEM841D
  6. 6
    Install injector tube assembly. Refer to "Injector Removal and Installation" in EF & EC section.
  7. 7
    Install air chamber and I.A.A. unit.
