Engine Removal - Removal (Cont'd) / Installation

EM-53prose procedure

Step 9: 2WD removes engine+transaxle; 4WD removes engine+transaxle+transfer. Buffer rod height adjustment for M/T: 2WD = 55 ± 1 mm, 4WD = 89.0 - 91.0 mm.

Continued from EM-52

Removal (Cont'd)

  1. 9
    Remove engine with transaxle as shown. (2WD models) Remove engine with transaxle and transfer. (4WD models)

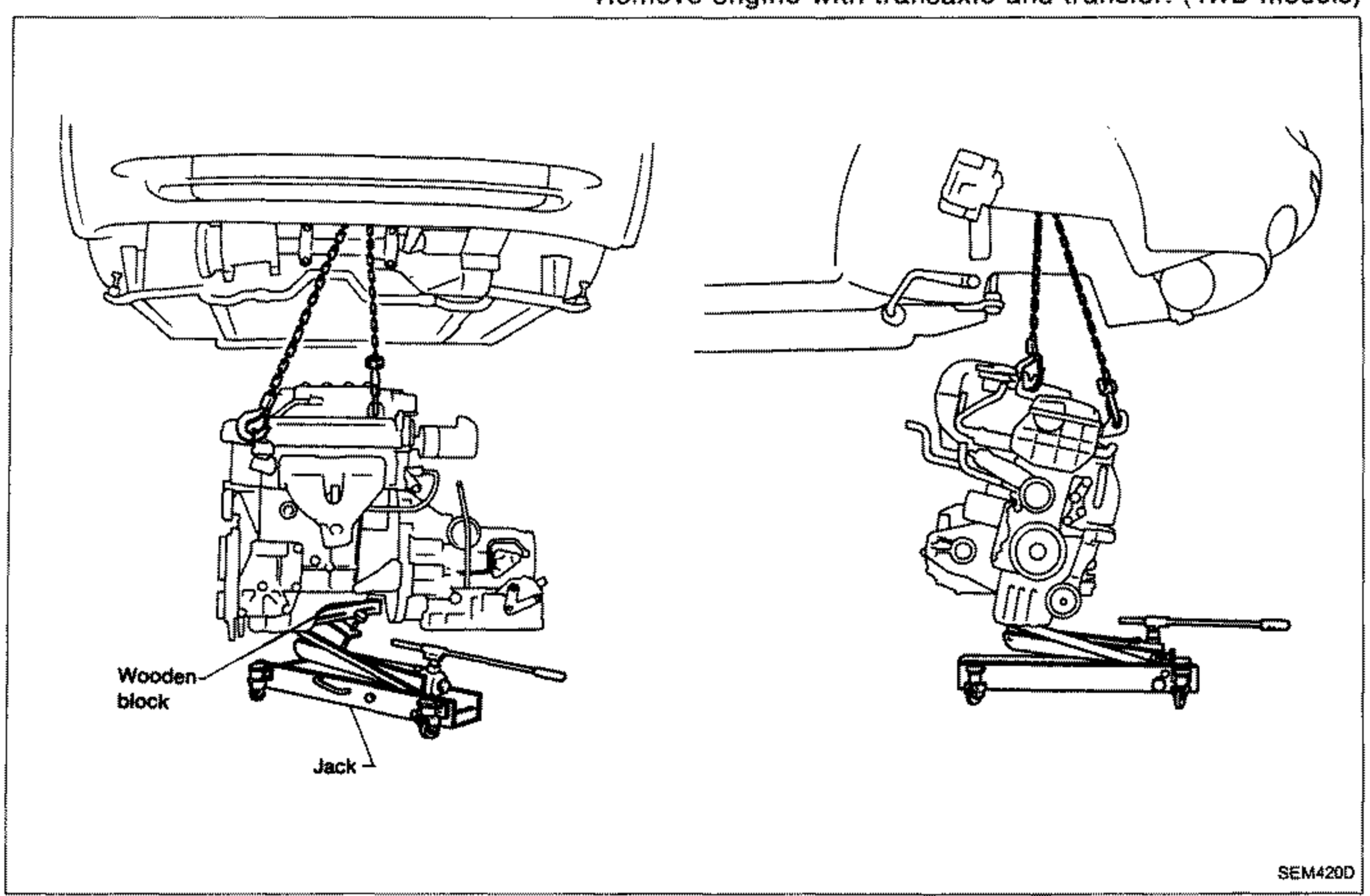

    Two side views of the vehicle with the engine being lowered out from underneath using chains attached to engine slingers, supported on a transmission jack with a wooden block. Left view labeled with 'Wooden block' and 'Jack'; right view shows engine/transaxle assembly lowered onto the jack.
    SEM420D

Installation

Installation is the reverse order of removal.
2WD models2.17 ± 0.04 in
55 ± 1mm
4WD models3.504 - 3.583 in
89.0 - 91.0mm
