Cylinder Head - Assembly (Cont'd) / Valve Clearance Adjustment

EM-123prose procedure

Rocker arm spring retainer smoothness check is SR20DET only. Valve clearance adjustment procedure shown is for SR20DE.

Continued from EM-122

Assembly (Cont'd)

Valve Clearance Adjustment

SR20DE

Select a suitable shim when replacing valve, cylinder head, shim, rocker arm guide and/or valve seat with new one(s), as follows:

Valve Clearance Adjustment (SR20DE)

  1. 1
    Install valve component parts to cylinder head (Except shim).
    Always replace rocker arm guide with a new one.

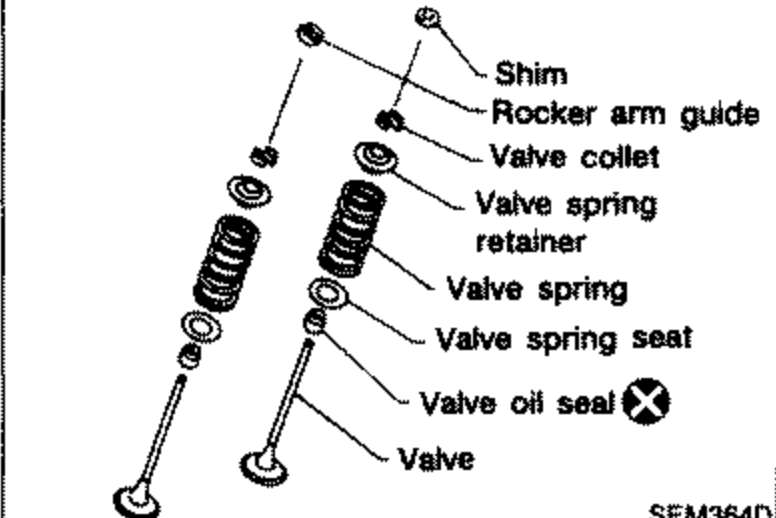

    Exploded view of valve assembly components: shim, rocker arm guide, valve collet, valve spring retainer, valve spring, valve spring seat, valve oil seal (marked X to replace), and valve. Labels for each component listed top to bottom.
    SEM364D
  2. 2
    Remove hydraulic lash adjuster.
  3. 3

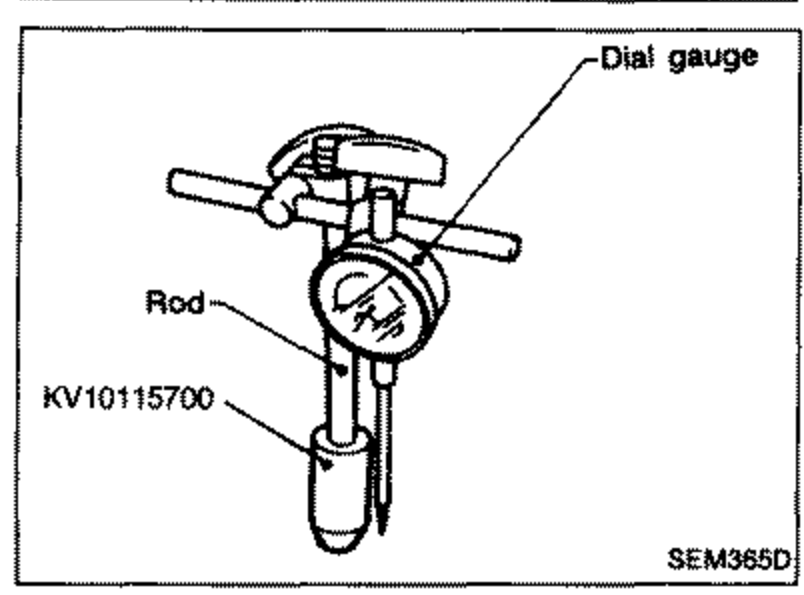

    Install Tool* into hydraulic lash adjuster fixing hole. * Tool (KV10115700) is screwed into magnetic stand rod used with dial gauge.
    Illustration showing Tool KV10115700 (a rod screwed into a magnetic stand rod used with a dial gauge) installed into the hydraulic lash adjuster fixing hole. Labels: 'Dial gauge', 'Rod', 'KV10115700'.
    SEM365D
