Engine Removal - Removal (Cont'd)

EM-139prose procedure

Step 15 (R.H. rear engine mounting) is 4WD models only. Figures distinguish 2WD vs 4WD mounting locations.

Continued from EM-138

Removal (Cont'd)

  1. 14

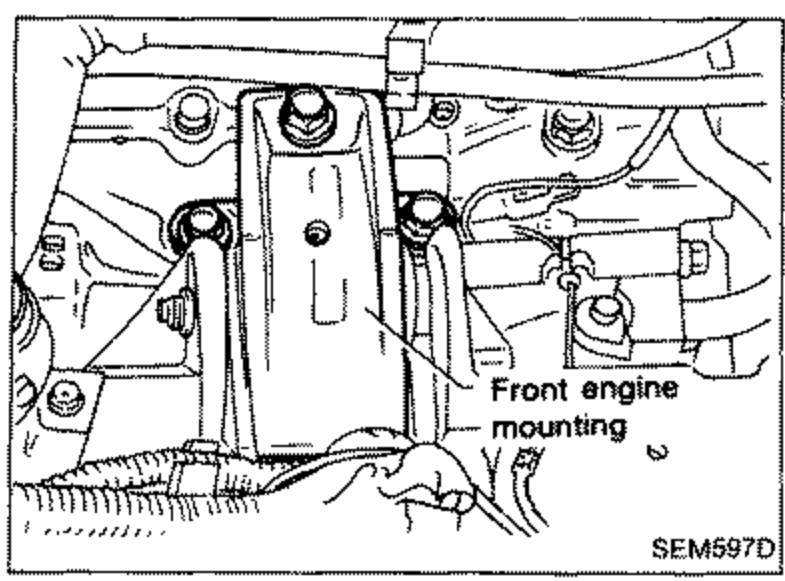

    Remove front engine mounting.
    Engine bay view showing the front engine mounting with the location labelled. Used for the front engine mounting removal step.
    SEM697D
  2. 15

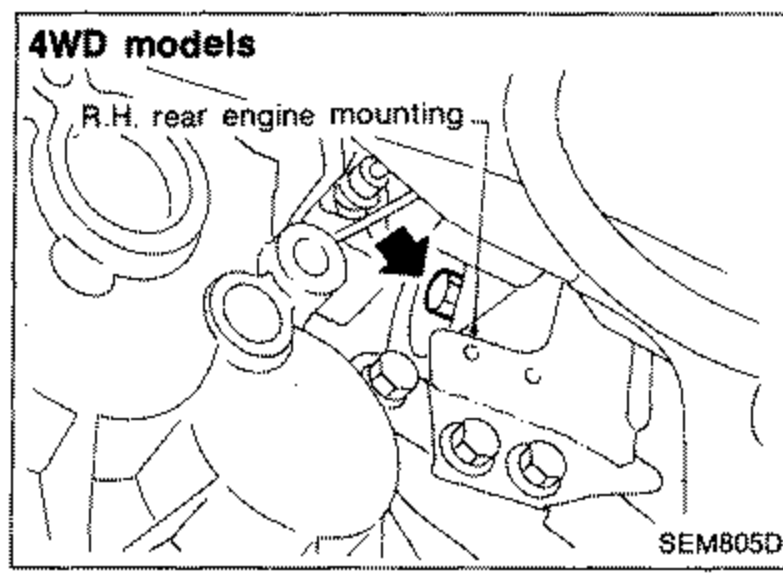

    Remove R.H. rear engine mounting. (4WD models only)
    4WD models view showing the R.H. rear engine mounting with an arrow indicating the removal point. Label points to 'R.H. rear engine mounting'.
    SEM805D
  3. 16

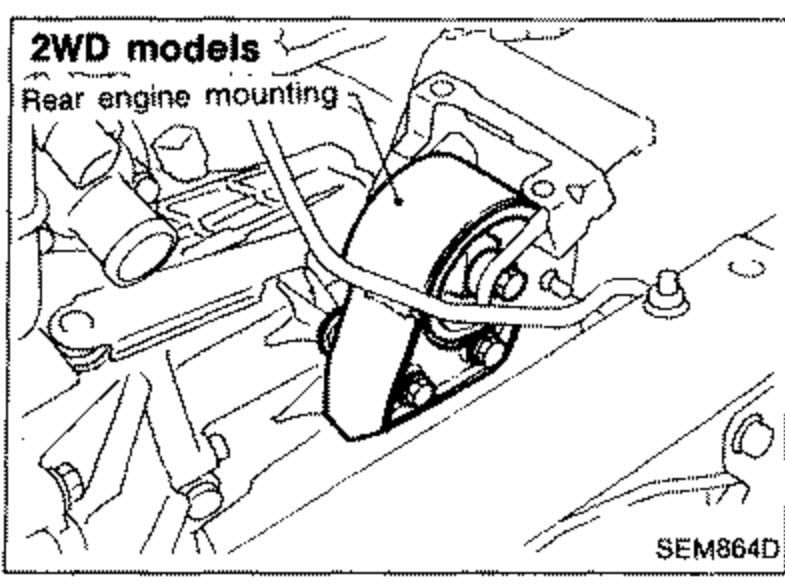

    Remove rear engine mounting (engine left side) and then slowly lower transmission jack.
    2WD models view showing the rear engine mounting (engine left side). Label points to 'Rear engine mounting'.
    SEM864D
