Timing Chain - Installation (Cont'd)

EM-90prose procedure

Fig SEM782D shows 2WD vs 4WD oil strainer/baffle plate installation differences.

Continued from EM-89

Installation (Cont'd)

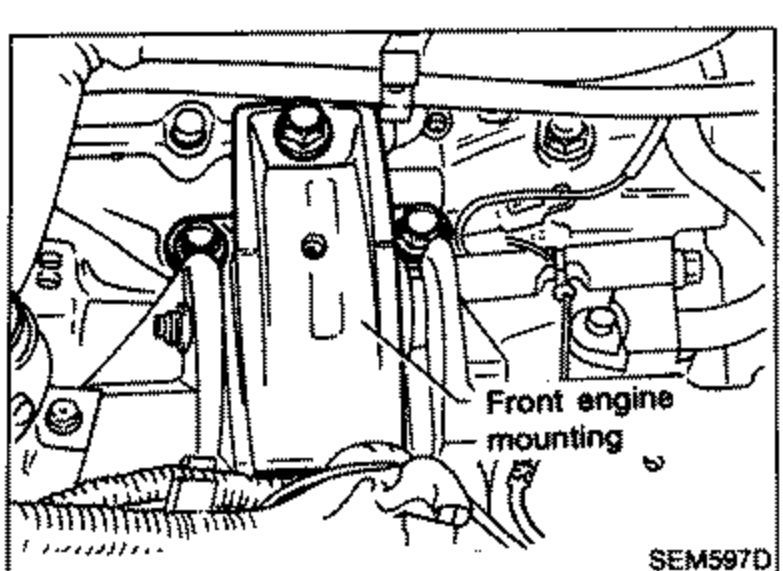

  1. 7
    Install front engine mounting.
    Engine view showing front engine mounting installation, with a labelled callout 'Front engine mounting'.
    SEM597D

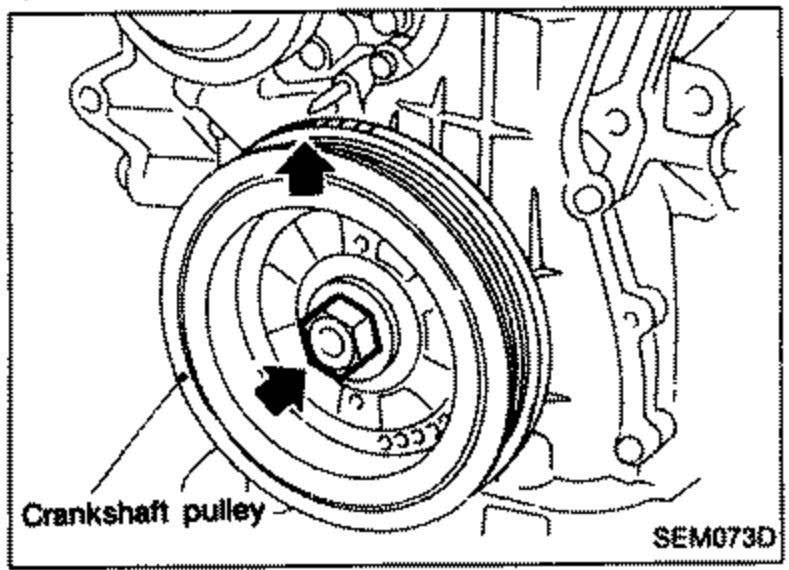

  2. 8
    Install crankshaft pulley.
    Crankshaft pulley installation, with an arrow pointing to it. Labelled callout 'Crankshaft pulley'.
    SEM073D
  3. 9
    Set No. 1 piston at T.D.C. on its compression stroke.

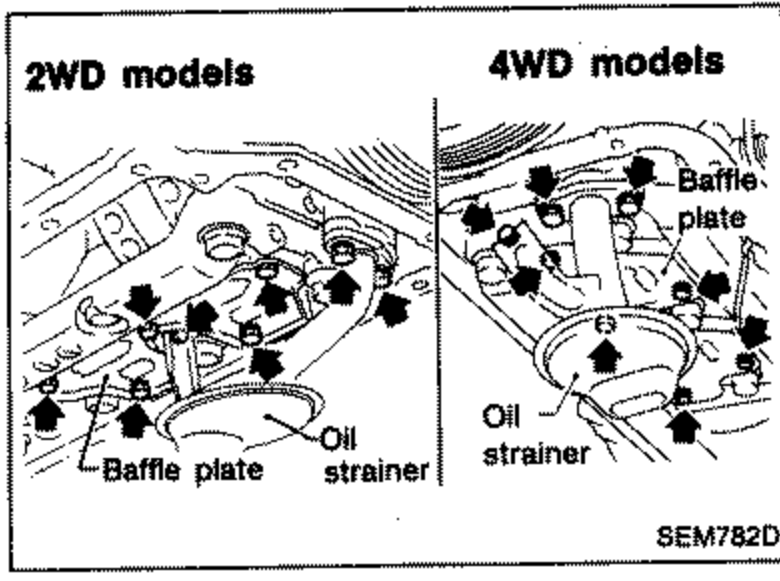

  4. 10
    Install oil strainer and baffle plate.
    Side-by-side comparison of '2WD models' and '4WD models' for oil strainer and baffle plate installation with arrows pointing to bolts. Labels: 'Baffle plate', 'Oil strainer'.
    SEM782D
  5. 11
    Install oil pan. Refer to "Installation" in "OIL PAN".

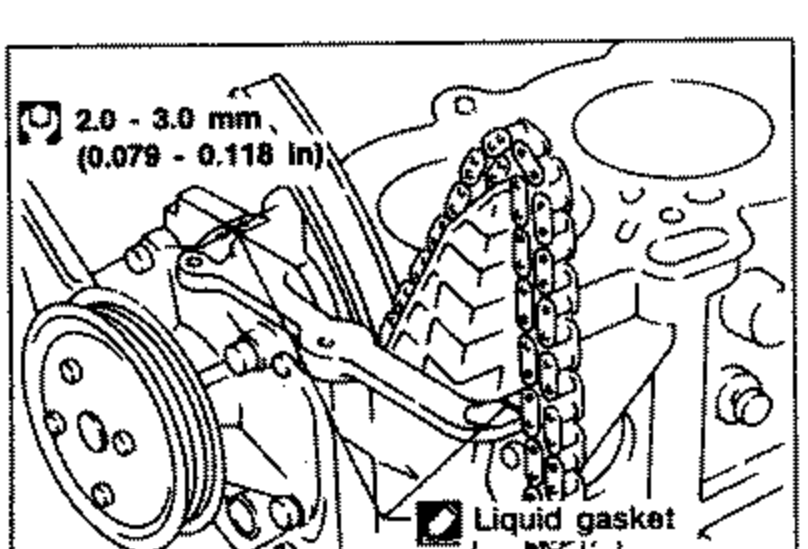

  6. 12
    Before installing cylinder head gasket, apply a continuous bead of liquid gasket to mating surface of cylinder block.
    Bead width 2.0 - 3.0 mm (0.079 - 0.118 in).
    Engine block view showing application of a continuous bead of liquid gasket to the mating surface of the cylinder block before installing the cylinder head gasket. Labels: 'Liquid gasket', dimension '2.0 - 3.0 mm (0.079 - 0.118 in)'.
    SEM353D
