Cylinder Block - Inspection (Cont'd)

EM-61spec table
Continued from EM-60

Inspection (Cont'd)

Main bearing thickness selection

  1. 1
    Grade number of each crankshaft main journal is punched on the respective crankshaft. These numbers are punched in either Arabic or Roman numerals.
    This is item (b).

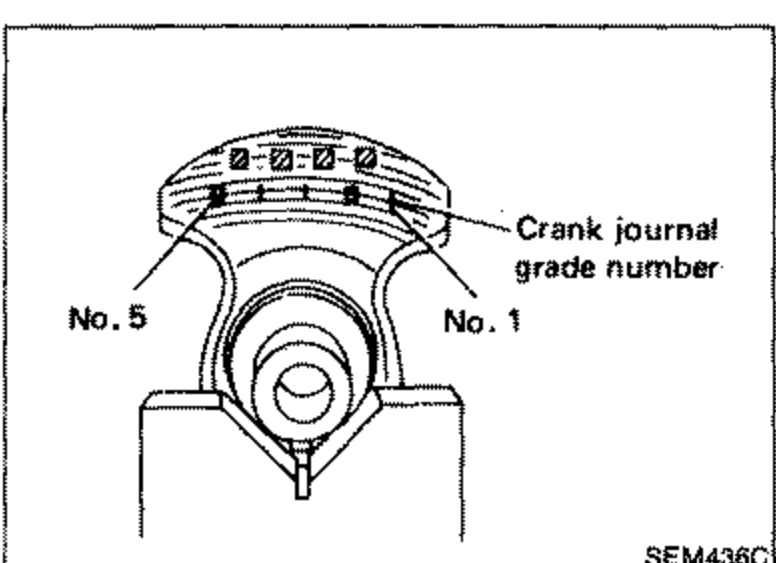

    Crankshaft showing the crank journal grade number stamped on a crank web. Callouts: 'Crank journal grade number', 'No. 5', 'No. 1'. Stamped digits visible across the journal grades.
    SEM438C
  2. 2
    Select main bearing with suitable thickness according to the following table.
    This is item (c).

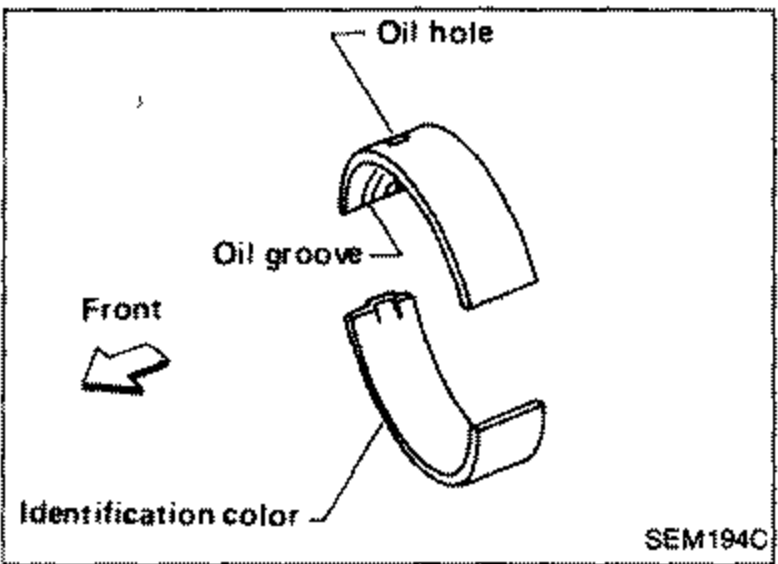

    A connecting rod / main bearing shell showing the oil hole, oil groove and identification color location. Callouts: 'Oil hole', 'Oil groove', 'Front' arrow, 'Identification color'.
    SEM194C

Main bearing grade color

0
Main journal grade number 0Black
Main journal grade number 1Brown
Main journal grade number 2Green
1
Main journal grade number 0Brown
Main journal grade number 1Green
Main journal grade number 2Yellow
2
Main journal grade number 0Green
Main journal grade number 1Yellow
Main journal grade number 2Blue
For example: Main journal grade number: 1; Crankshaft journal grade number: 2; Main bearing grade number = 1 + 2 = Yellow

Connecting rod bearing (Big end)

  1. 1
    Install connecting rod bearing to connecting rod and cap.
  2. 2
    Install connecting rod cap to connecting rod.
    Tighten bolts to the specified torque.
  3. 3
    Measure inner diameter "C" of each bearing.

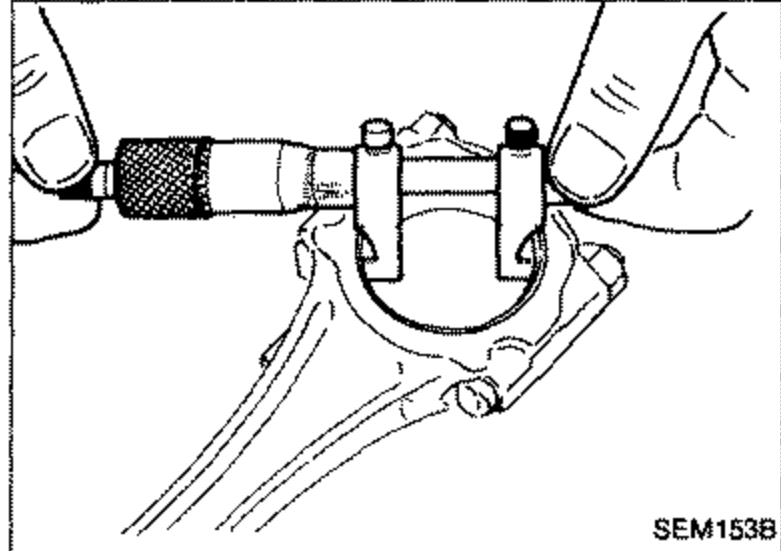

    A bore gauge / inside micrometer measuring the inner diameter 'C' of a connecting rod big-end bearing with the cap installed.
    SEM153B
  4. 4
    Measure outer diameter "Dp" of each crankshaft pin journal.

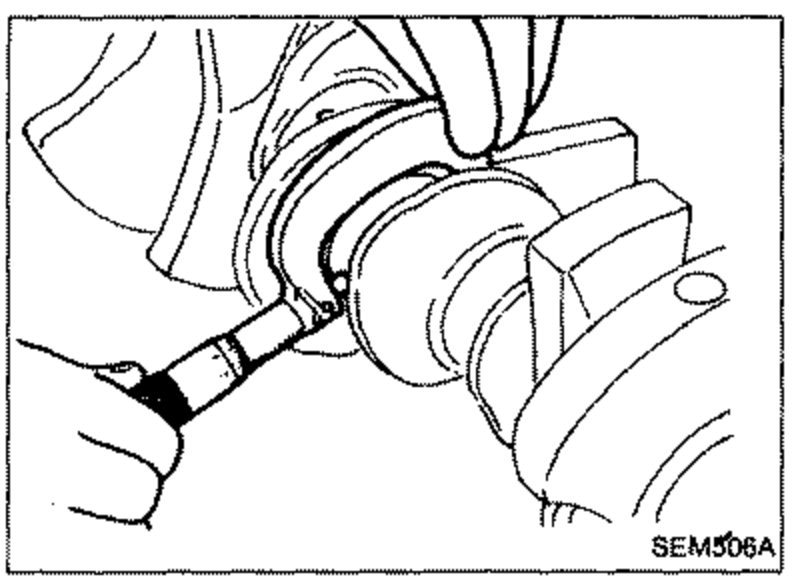

    A micrometer measuring the outer diameter 'Dp' of a crankshaft pin journal.
    SEM506A
  5. 5
    Calculate connecting rod bearing clearance.
  6. 6
    If it exceeds the limit, replace bearing.
  7. 7
    If clearance cannot be adjusted within the standard of any bearing, grind crankshaft journal and use undersized bearing. Refer to step 7 of "BEARING CLEARANCE — Main bearing".
Connecting rod bearing clearance = C - Dp, Standard(0.0004 - 0.0014 in)
0.010 - 0.035mm
Limit(0.004 in)
0.1mm
