Cylinder Head - Inspection (Cont'd)

EM-115prose procedure

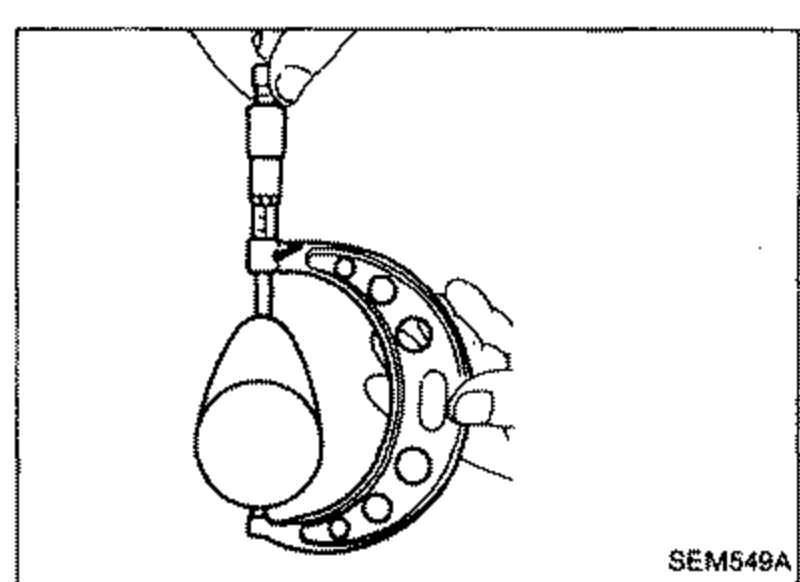

Camshaft cam height standard differs between SR20DE and SR20DET (intake/exhaust). Cam wear limit identical for both.

Inspection (Cont'd)

Item	SR20DE	SR20DET
Standard cam height - Intake	38.408 - 38.598 (1.5121 - 1.5196)	38.648 - 38.838 (1.5216 - 1.5291)
Standard cam height - Exhaust	37.920 - 38.110 (1.4929 - 1.5004)	38.648 - 38.838 (1.5216 - 1.5291)
Cam wear limit - Intake & Exhaust	0.20 (0.0079)	0.20 (0.0079)

Standard cam height - Intake

SR20DE38.408 - 38.598 (1.5121 - 1.5196)

SR20DET38.648 - 38.838 (1.5216 - 1.5291)

Standard cam height - Exhaust

SR20DE37.920 - 38.110 (1.4929 - 1.5004)

SR20DET38.648 - 38.838 (1.5216 - 1.5291)

Cam wear limit - Intake & Exhaust

SR20DE0.20 (0.0079)

SR20DET0.20 (0.0079)

1
Install camshaft bracket and tighten bolts to the specified torque.
2

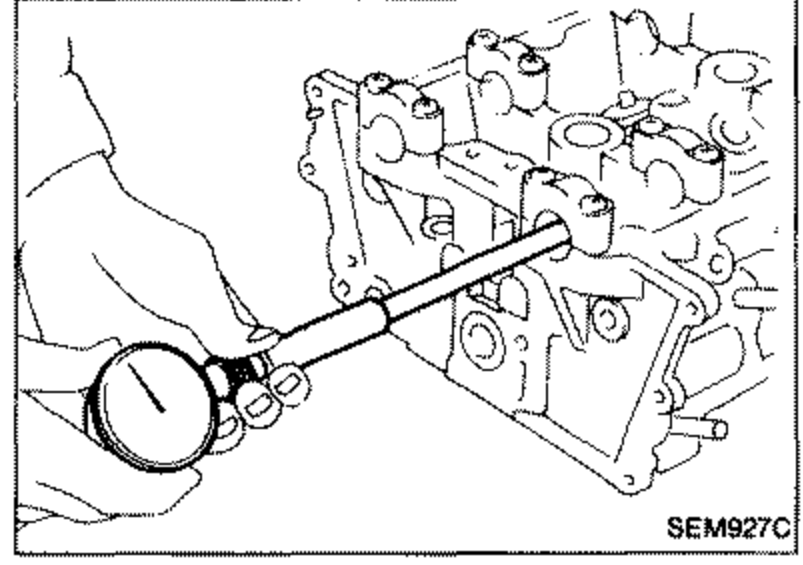

Measure inner diameter of camshaft bearing. Standard inner diameter: 28.000 - 28.021 mm (1.1024 - 1.1032 in)
SEM927C
3

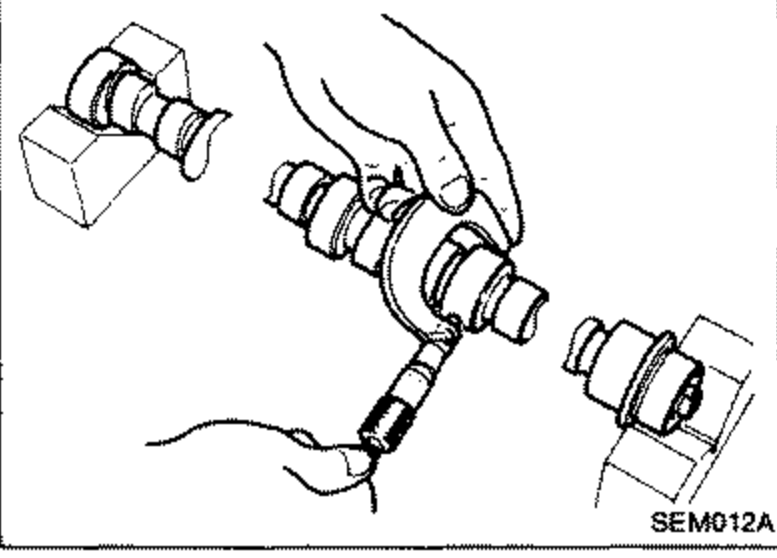

Measure outer diameter of camshaft journal. Standard outer diameter: 27.935 - 27.955 mm (1.0998 - 1.1006 in)
SEM012A
4
If clearance exceeds the limit, replace camshaft and/or cylinder head. Camshaft journal clearance: Standard 0.045 - 0.086 mm (0.0018 - 0.0034 in); Limit 0.12 mm (0.0047 in)

1
Install camshaft in cylinder head.
2

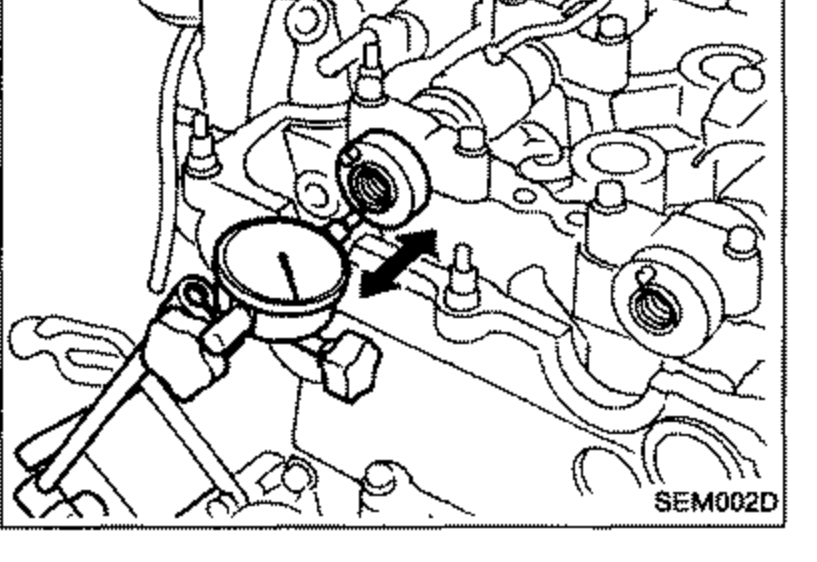

Measure camshaft end play. Camshaft end play: Standard 0.055 - 0.139 mm (0.0022 - 0.0055 in); Limit 0.20 mm (0.0079 in)
SEM002D
