Timing Chain - Installation (Cont'd)

EM-93prose procedure
Continued from EM-92

Installation (Cont'd)

  1. 16

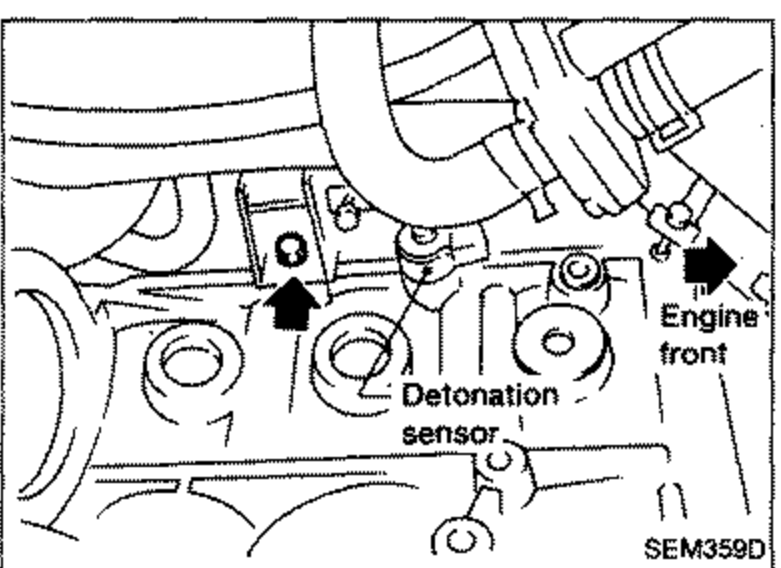

    Install water pipe bolt.
    Engine view showing water pipe bolt installation, with upward arrows pointing to bolts. Labels: 'Detonation sensor', 'Engine front' arrow on the right.
    SEM359D
  2. 17

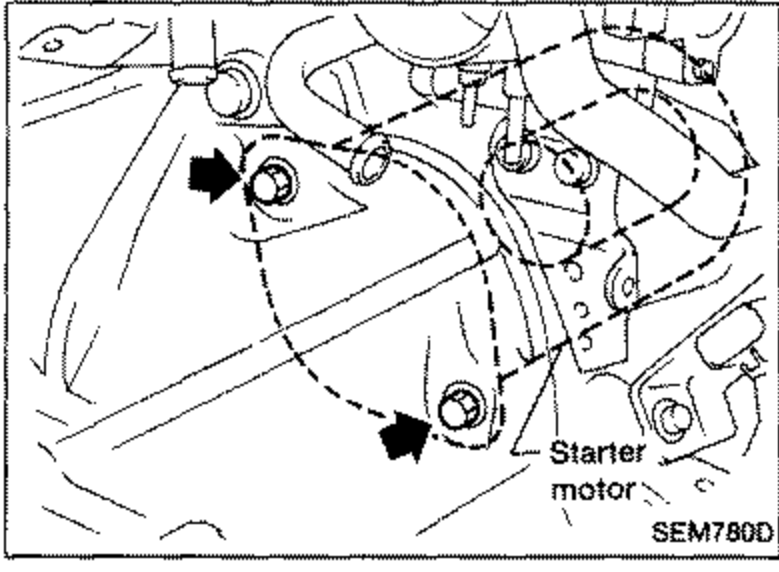

    Install starter motor.
    Engine view showing starter motor installation with arrows pointing to bolts. Labelled callout 'Starter motor'.
    SEM780D
  3. 18

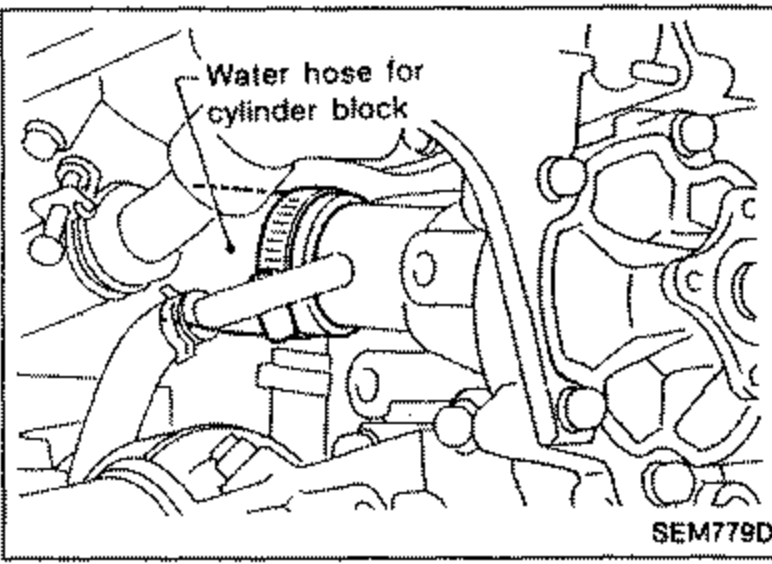

    Install the following water hoses. Water hose for cylinder block. Water hoses for heater.
    Engine view showing water hose for cylinder block installation, with a labelled callout 'Water hose for cylinder block'.
    SEM779D
  4. 19

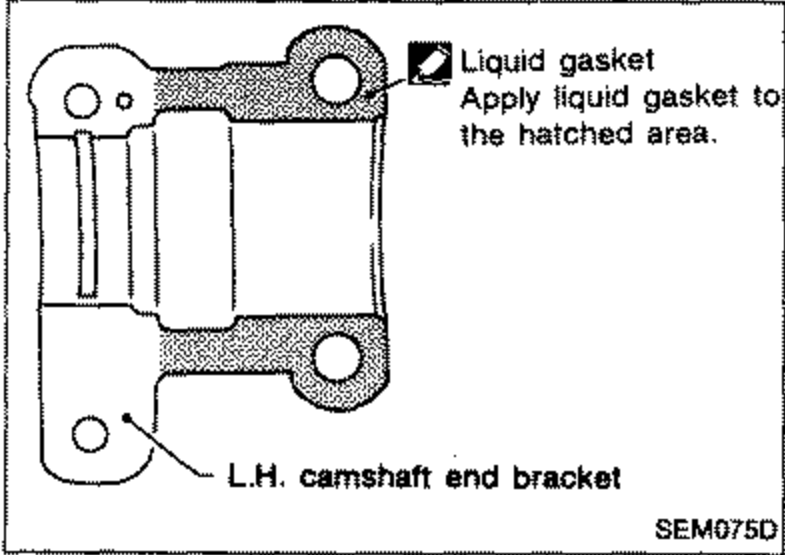

    Before installing L.H. camshaft end bracket, remove all traces of liquid gasket from mating surface. Also remove traces of liquid gasket from mating surface of cylinder head.
    L.H. camshaft end bracket showing the hatched area where liquid gasket is applied. Labels: 'Liquid gasket - Apply liquid gasket to the hatched area.', 'L.H. camshaft end bracket'.
    SEM075D
  5. 20
    Apply a continuous bead of liquid gasket to mating surface of L.H. camshaft end bracket. Use Genuine Liquid Gasket or equivalent.
  6. 21

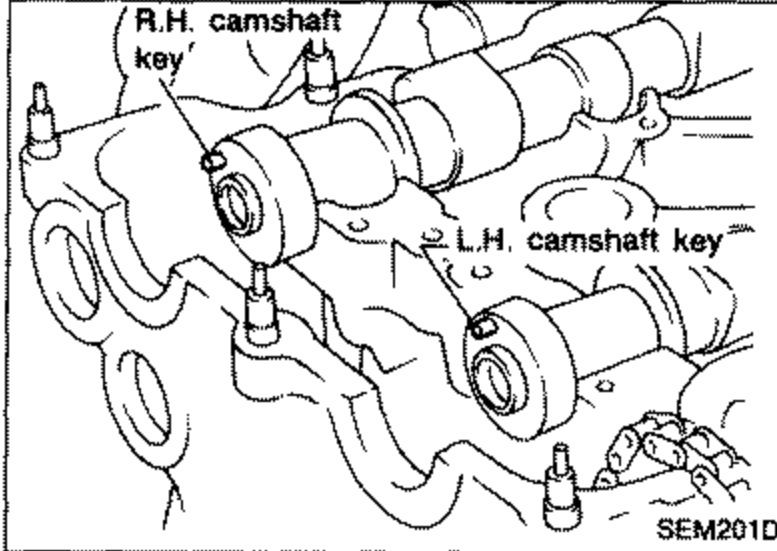

    Install camshafts, camshaft brackets, oil tubes and baffle plate. Position camshaft: L.H. camshaft key at about 12 o'clock. R.H. camshaft key at about 10 o'clock.
    Camshaft installation showing camshaft key positions. Labels: 'R.H. camshaft key', 'L.H. camshaft key'.
    SEM201D
