Timing Chain - Removal (Cont'd)

EM-86prose procedure

Step 28 (exhaust manifold with turbocharger) is SR20DET only. Step 31 differs: SR20DE removes cylinder head with intake and exhaust manifolds; SR20DET with intake manifold only. Fig SEM782D shows 2WD vs 4WD oil strainer/baffle differences.

Continued from EM-85

Removal (Cont'd)

  1. 27

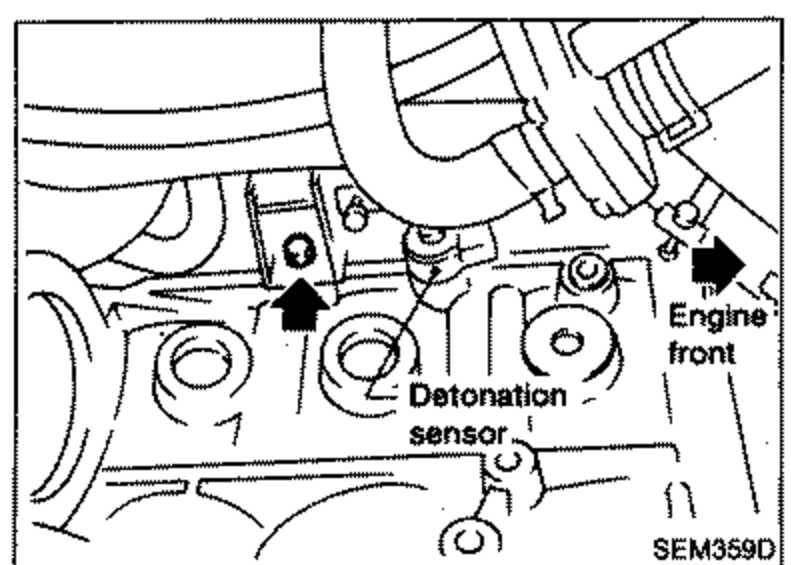

    Remove water pipe bolt.
    Engine view showing the water pipe bolt removal area, with downward arrows pointing to bolts. Labels: 'Detonation sensor' and 'Engine front' arrow on the right.
    SEM359D
  2. 28
    Remove exhaust manifold with turbocharger. Refer to "Removal" in "TURBOCHARGER". (SR20DET only)
  3. 29

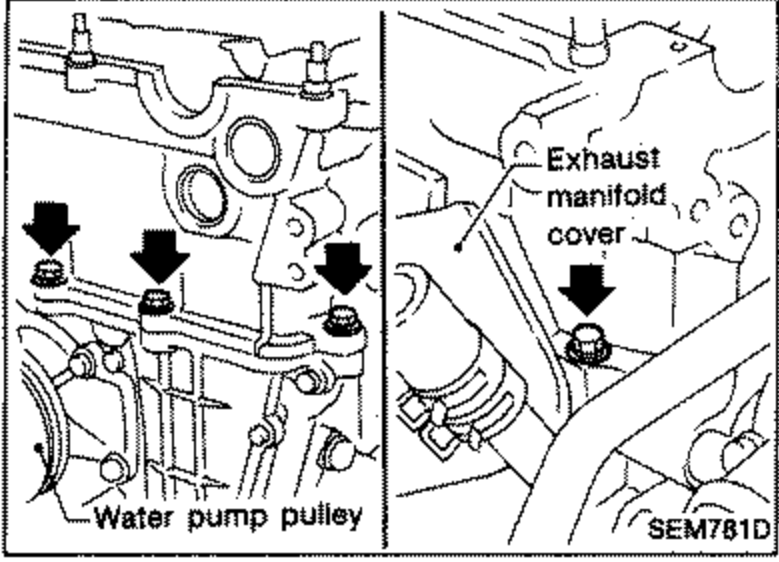

    Remove cylinder head outside bolts.
    Engine view showing cylinder head outside bolts with downward arrows pointing to bolt locations. Labels: 'Exhaust manifold cover' and 'Water pump pulley'.
    SEM781D
  4. 30

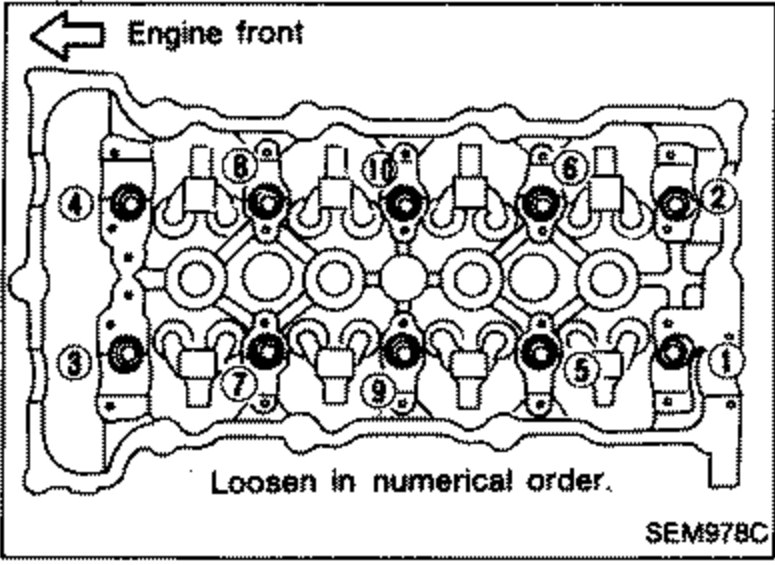

    Remove cylinder head bolts. Bolts should be loosened in two or three steps.
    Top view of the cylinder head showing the cylinder head bolt loosening sequence with numbered bolts. Labels: 'Engine front' arrow on the left and note 'Loosen in numerical order.'
    SEM978C
  5. 31
    SR20DE: Remove cylinder head with intake and exhaust manifolds. SR20DET: Remove cylinder head with intake manifold.
  6. 32
    Remove oil pans. Refer to "Removal" in "OIL PAN".
  7. 33

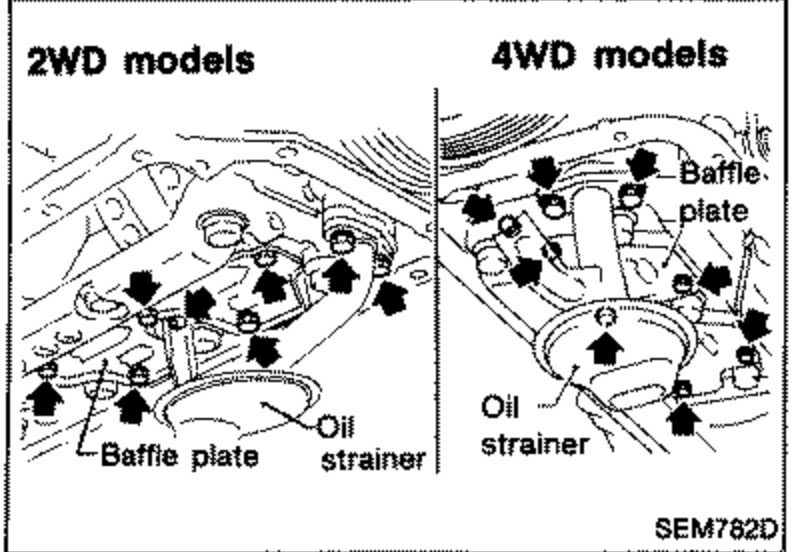

    Remove oil strainer and baffle plate.
    Side-by-side comparison of '2WD models' and '4WD models' showing oil strainer and baffle plate removal with arrows pointing to bolts. Labels: 'Baffle plate', 'Oil strainer' on each diagram.
    SEM782D
