THROTTLE CHAMBERS (SR20DET)

EM-108prose procedure

Applies to SR20DET.

Adjustment (Cont'd)

IMPORTANT

When installing rear adjusting rod, make sure it faces the correct direction, as shown in figure at left.

1

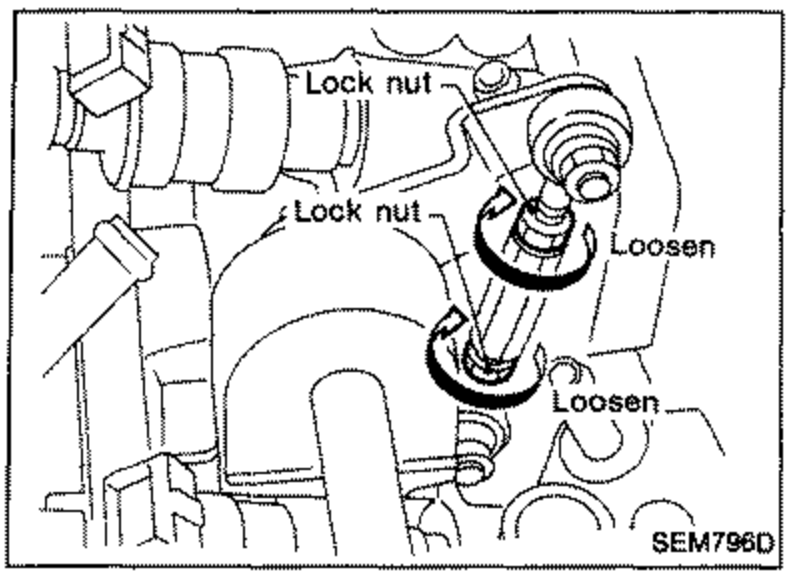

Loosen lock nuts.
SEM796D
2

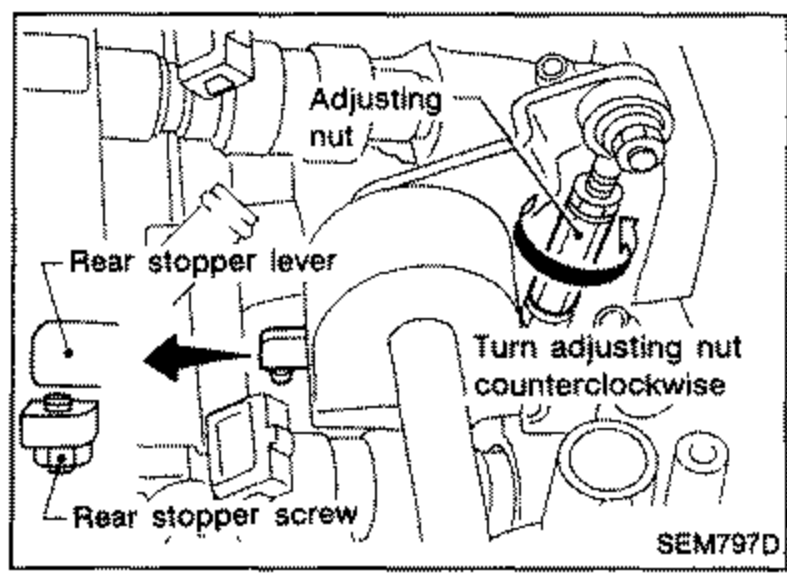

Turn adjusting nut counterclockwise until rear stopper lever is slightly away from rear stopper screw.
SEM797D
3

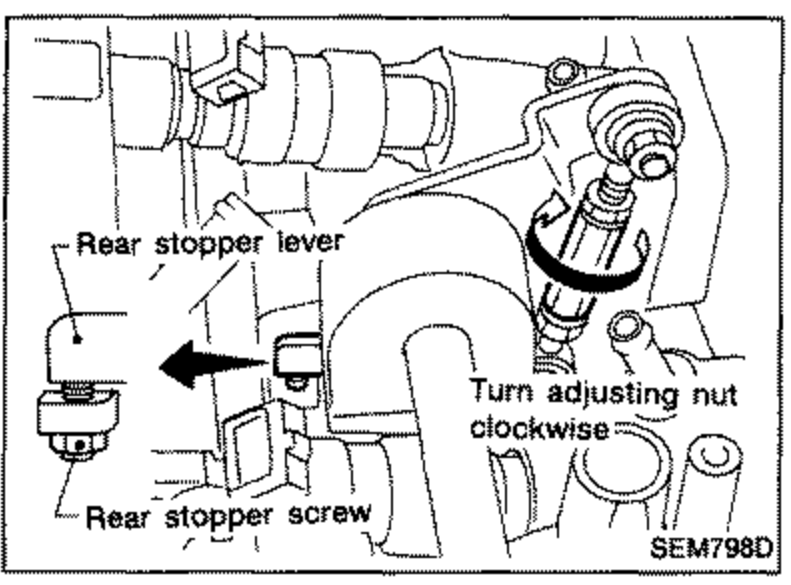

Turn adjusting nut clockwise until rear stopper lever contacts rear stopper screw or immediately before resistance is felt.
SEM798D
4

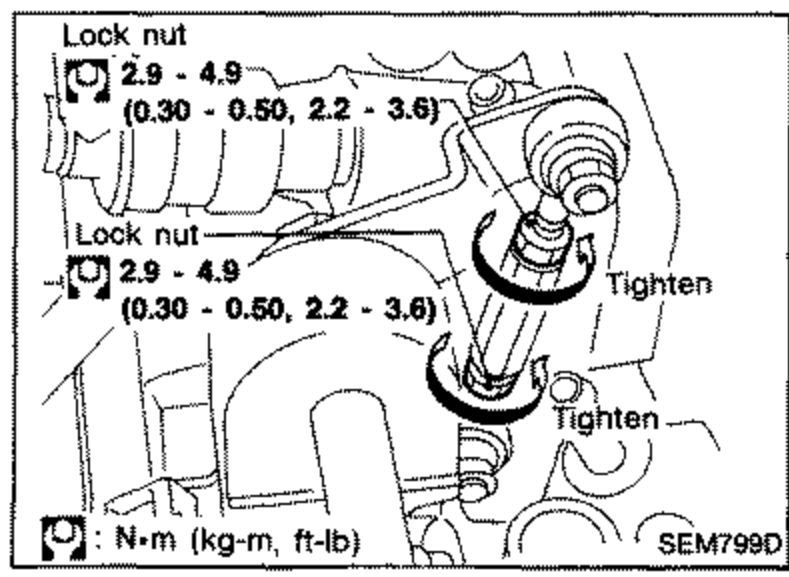

Prevent adjusting nut from turning and tighten lock nuts.
SEM799D

Specification	Value
Lock nut0.30 - 0.50 kg-m, 2.2 - 3.6 ft-lb	2.9 - 4.9N·m

Lock nut0.30 - 0.50 kg-m, 2.2 - 3.6 ft-lb

2.9 - 4.9N·m
