Timing Belt — Camshaft Timing Belt (CD17)
EM-203parts diagramApplies to CD17 (diesel) engine camshaft timing belt.
Camshaft Timing Belt — CD17
CAUTION
a. Do not bend or twist timing belt.
b. After removing timing belt, do not turn crankshaft and camshaft separately because valves will strike piston heads.
c. Ensure that timing belt, camshaft sprocket, crankshaft sprocket and belt tensioner are clean and free from oil and water.
| Specification | Value |
|---|---|
| Tensioner pulley bolt | 32 - 40N·m |
| Idler pulley bolt | 32 - 40N·m |
| Crank pulley bolt | 123 - 132N·m |
Tensioner pulley bolt
32 - 40N·m
Idler pulley bolt
32 - 40N·m
Crank pulley bolt
123 - 132N·m
Removal

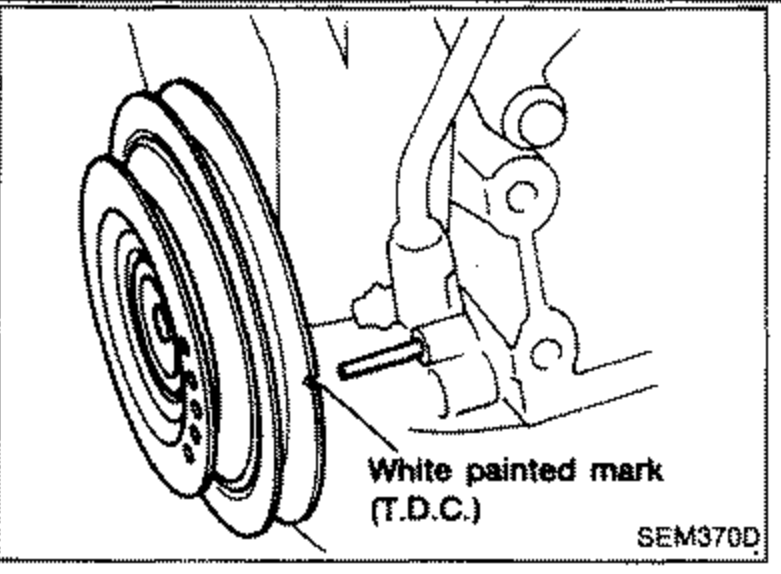

- 1Set No. 1 cylinder at T.D.C. on its compression stroke.
SEM370D - 2Remove timing belt.

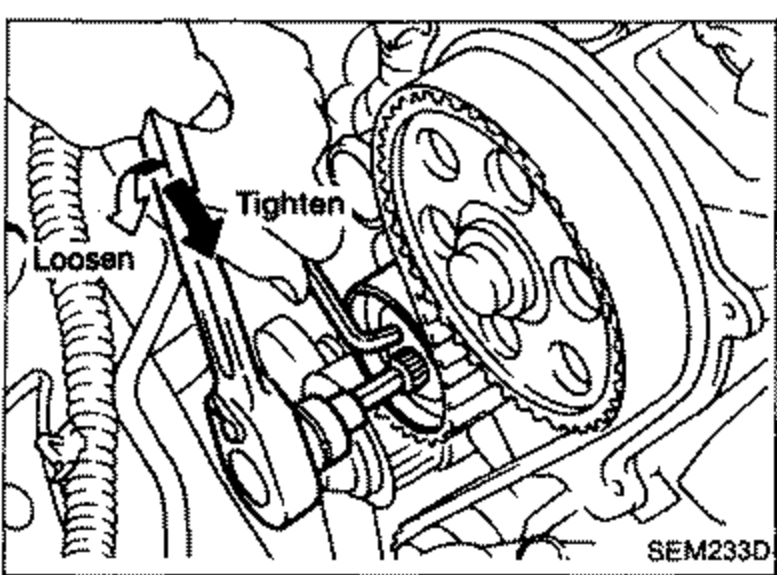

SEM233D - 3Loosen tensioner pulley bolt, turn tensioner pulley counter-clockwise then tighten bolt.
