Cylinder Block - Assembly (Cont'd)

EM-155prose procedure

Connecting rod cap nut tightening torques differ between SR20DE and SR20DET. Oil jet caution applies to SR20DET only.

Continued from EM-154

Assembly (Cont'd)

  1. 5
    Install pistons with connecting rods.
    a. Install them into corresponding cylinders with Tool.
    Be careful not to scratch cylinder wall by connecting rod.
    Arrange so that front mark on piston head faces toward front of engine.
    Be careful not to hit oil jet with connecting rod. (SR20DET only)

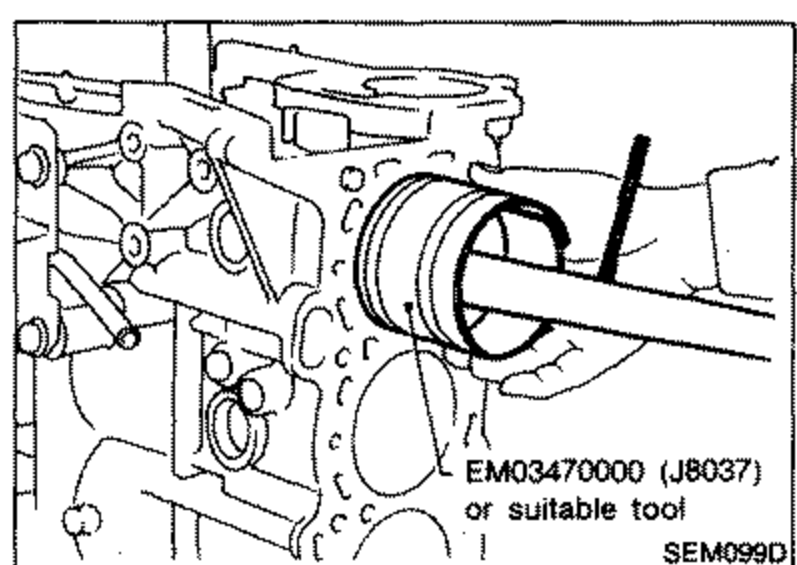

    Installing pistons into cylinders using a piston ring compressor tool. Shows the cylinder block with a piston/ring compressor being tapped into a bore. Labeled 'EM03470000 (J8037) or suitable tool'.
    SEM099D
  2. 6
    b. Install connecting rod caps. Tighten connecting rod cap nuts to the specified torque.
    Tightening procedure:
    (SR20DE) 1) Tighten nuts to 14 to 16 N·m (1.4 to 1.6 kg-m, 10 to 12 ft-lb).
    (SR20DE) 2) Turn nuts 60 to 65 degrees clockwise or if angle wrench is not available, tighten nuts to 38 to 44 N·m (3.9 to 4.5 kg-m, 28 to 33 ft-lb).
    (SR20DET) 1) Tighten nuts to 19 to 21 N·m (1.9 to 2.1 kg-m, 14 to 15 ft-lb).
    (SR20DET) 2) Turn nuts 60 to 65 degrees clockwise or if angle wrench is not available, tighten nuts to 46 to 52 N·m (4.7 to 5.3 kg-m, 34 to 38 ft-lb).

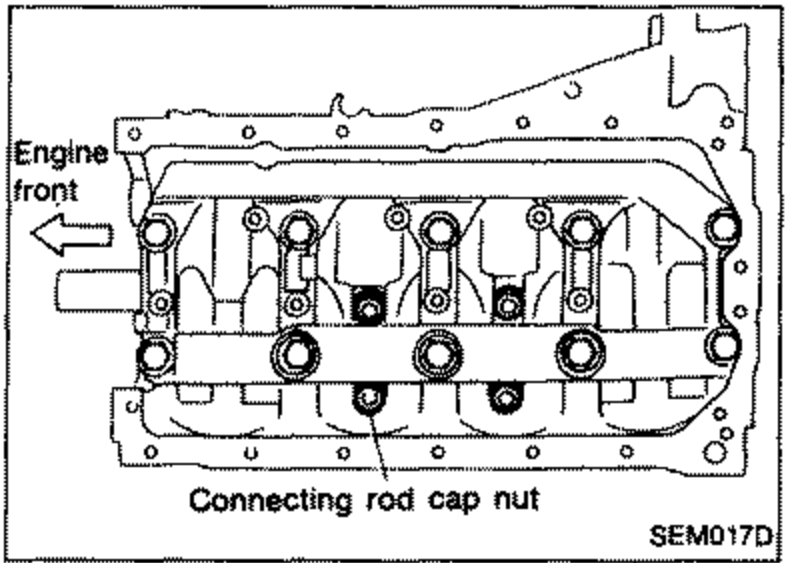

    Top view of cylinder block showing connecting rod cap nuts being tightened. 'Engine front' arrow points to the front of the engine; label points to 'Connecting rod cap nut'.
    SEM017D
  3. 7
    Measure connecting rod side clearance.
    Connecting rod side clearance:
    Standard: 0.20 - 0.35 mm (0.0079 - 0.0138 in)
    Limit: 0.50 mm (0.0197 in)
    If beyond the limit, replace connecting rod and/or crankshaft.

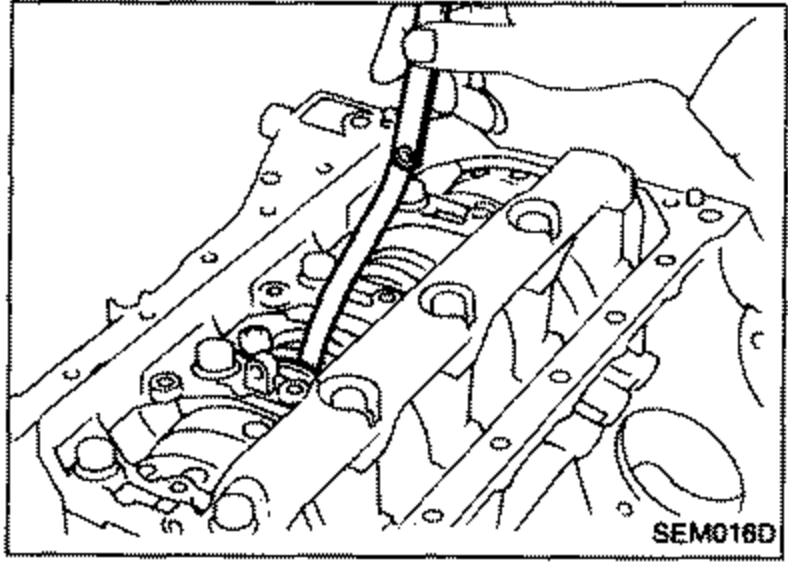

    Measuring connecting rod side clearance with a feeler gauge inserted between the connecting rod and crankshaft journal.
    SEM016D
  4. 8
    Install rear oil seal retainer.
    (1) Before installing rear oil seal retainer, remove all traces of liquid gasket from mating surface using a scraper.
    Also remove traces of liquid gasket from mating surface of cylinder block.

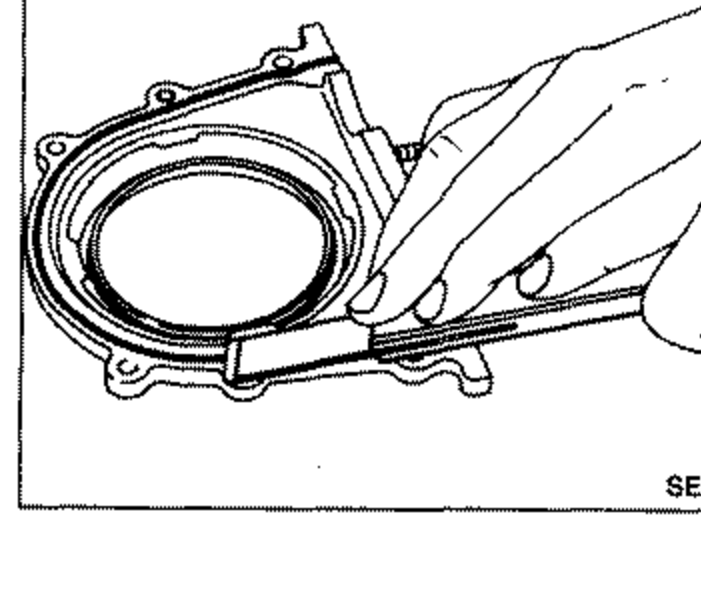

    Rear of cylinder block showing the rear oil seal retainer area where liquid gasket traces must be removed before installing the rear oil seal retainer.
    SEM218D
Connecting rod cap nut torque (SR20DE) step 11.4 to 1.6 kg-m, 10 to 12 ft-lb
16N·m
Connecting rod cap nut torque (SR20DE) step 2 alternate3.9 to 4.5 kg-m, 28 to 33 ft-lb; or turn 60-65 deg clockwise
44N·m
Connecting rod cap nut torque (SR20DET) step 11.9 to 2.1 kg-m, 14 to 15 ft-lb
21N·m
Connecting rod cap nut torque (SR20DET) step 2 alternate4.7 to 5.3 kg-m, 34 to 38 ft-lb; or turn 60-65 deg clockwise
52N·m
Connecting rod side clearance (Standard)0.0079 - 0.0138 in
0.20 - 0.35mm
Connecting rod side clearance (Limit)0.0197 in
0.50mm
