Oil Seal Replacement — Camshaft / Crankshaft Oil Seals

EM-213prose procedure

Applies to CD-series diesel engine.

Continued from EM-212

Camshaft Oil Seals

  1. 1
    Remove timing belts, sprockets and back covers.

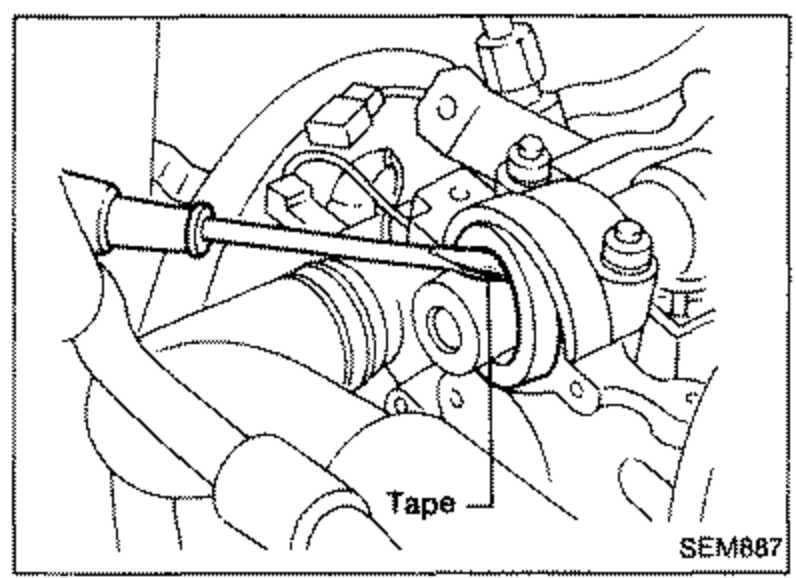

    Camshaft front area with a suitable tool and 'Tape' applied, illustrating pulling out the camshaft oil seal.
    SEM887
  2. 2
    Pull out oil seal with a suitable tool.
  3. 3
    Install new oil seals with a suitable tool. Confirm turning direction of both oil seals and camshaft.
    Confirm turning direction of both oil seals and camshaft.

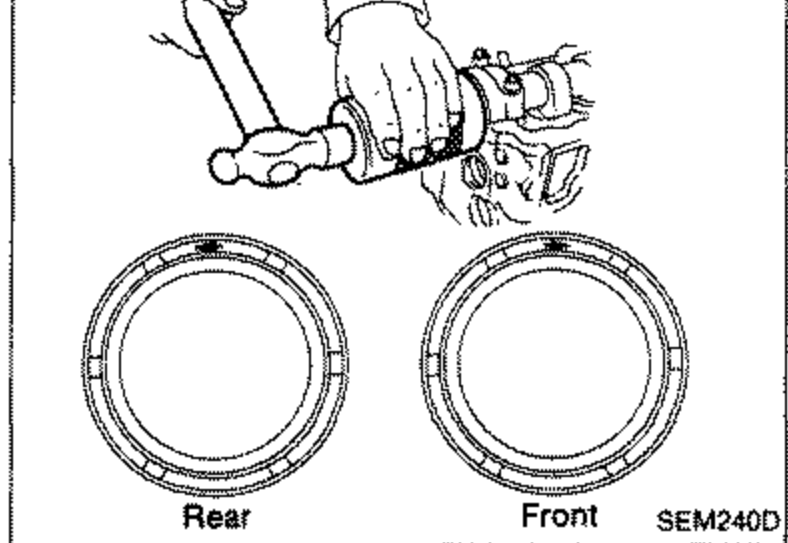

    A tool installing a new oil seal at left, with two oil seals shown at right labeled 'Rear' and 'Front' to confirm turning direction of both oil seals and camshaft.
    SEM240D

Crankshaft Front Oil Seal

  1. 1
    Remove valve timing belt and crankshaft sprocket.

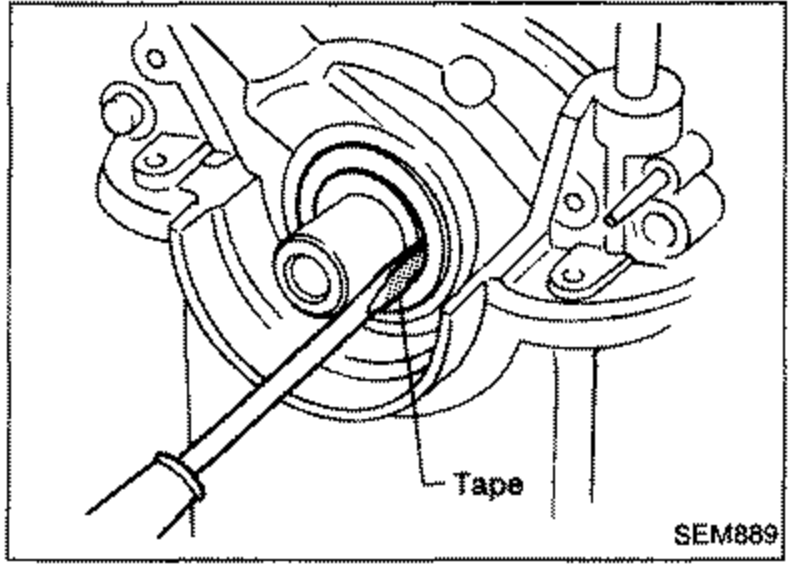

    Crankshaft front oil seal area with a suitable tool and 'Tape', illustrating removing the crankshaft front oil seal.
    SEM889
  2. 2
    Remove oil seal with a suitable tool.
  3. 3
    Apply engine oil to new oil seal and install oil seal using a suitable tool.

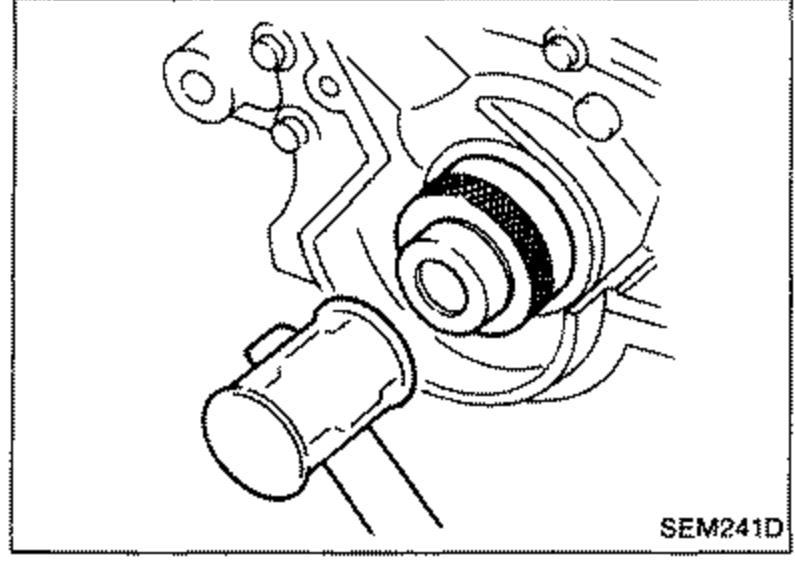

    Crankshaft front oil seal being installed with a suitable tool after applying engine oil to the new seal.
    SEM241D

Crankshaft Rear Oil Seal

  1. 1
    Remove transaxle assembly. (Refer to MT/AT section.)

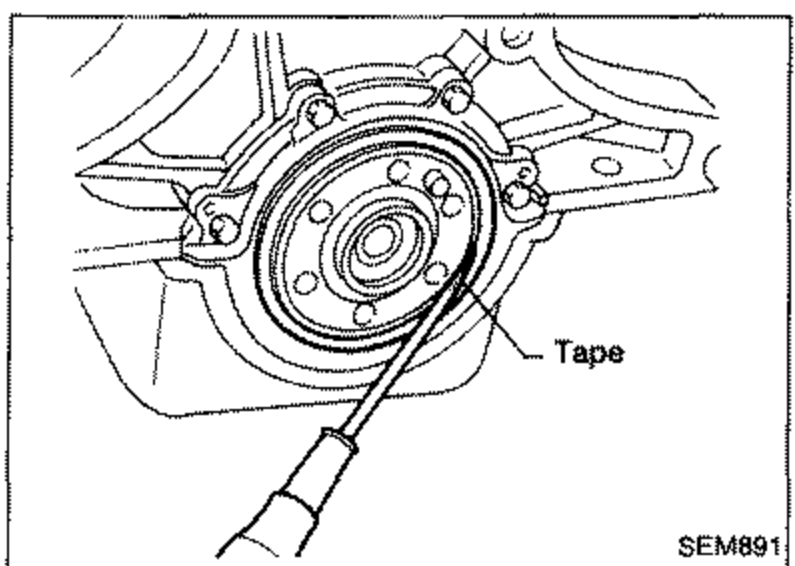

    Crankshaft rear oil seal area with a suitable tool and 'Tape' applied, illustrating removing the rear oil seal.
    SEM891
  2. 2
    Remove flywheel (drive plate).
  3. 3
    Remove rear oil seal with a suitable tool.
