Oil Pan - Removal and Installation

EM-20prose procedure

Removal

  1. 1
    Remove undercovers.

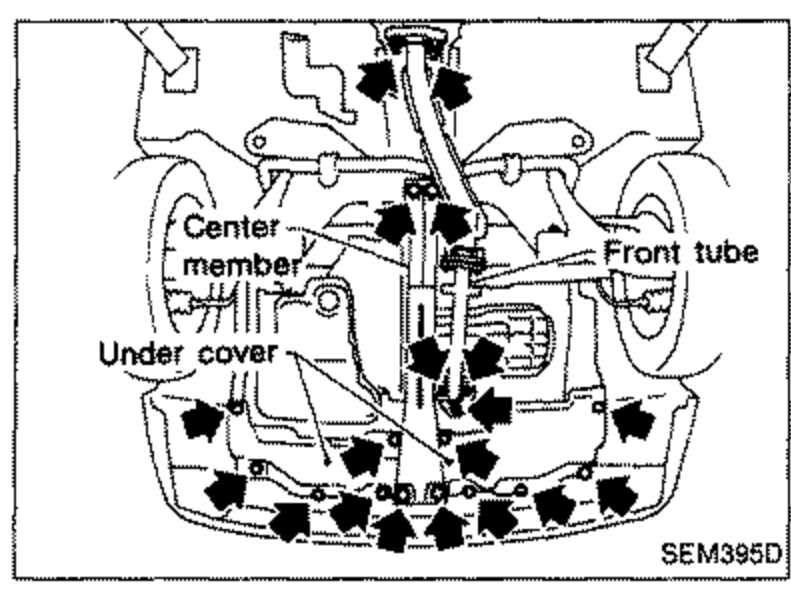

    Underbody view showing center member, front tube, and undercover with bolt locations marked for removal. Labels: 'Center member', 'Front tube', 'Under cover'.
    SEM395D
  2. 2
    Drain engine oil.
  3. 3
    Remove center member.
  4. 4
    Remove front exhaust tube.
  5. 5
    Remove oil pan. (1) Insert Tool between cylinder block and oil pan. (2) Slide Tool by tapping its side with a hammer, and remove oil pan.
    Be careful not to damage aluminum mating face.
    Do not insert screwdriver, or oil pan flange will be deformed.

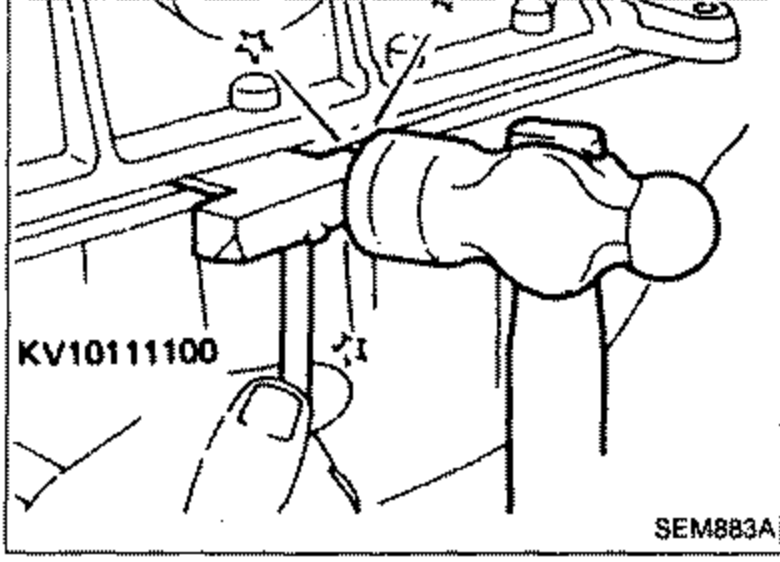

    Tool KV10111100 inserted between cylinder block and oil pan to separate them. Hand holding the tool against the mating face.
    SEM883A

Installation

  1. 1
    Before installing oil pan, remove all traces of liquid gasket from mating surface using a scraper. Also remove traces of liquid gasket from mating surface of cylinder block.

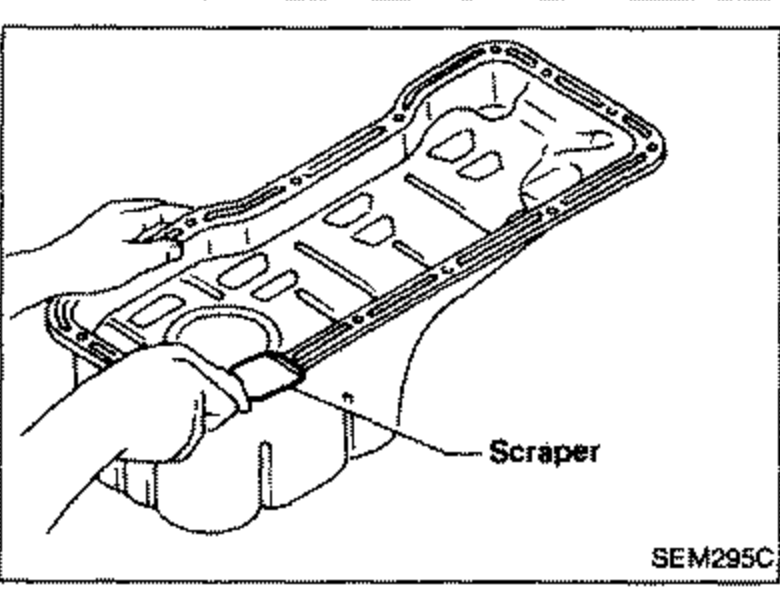

    Scraper removing traces of liquid gasket from the oil pan mating surface. Label: 'Scraper'.
    SEM295C
  2. 2
    Apply a continuous bead of liquid gasket to mating surface of oil pan.
    Use Genuine Liquid Gasket or equivalent.

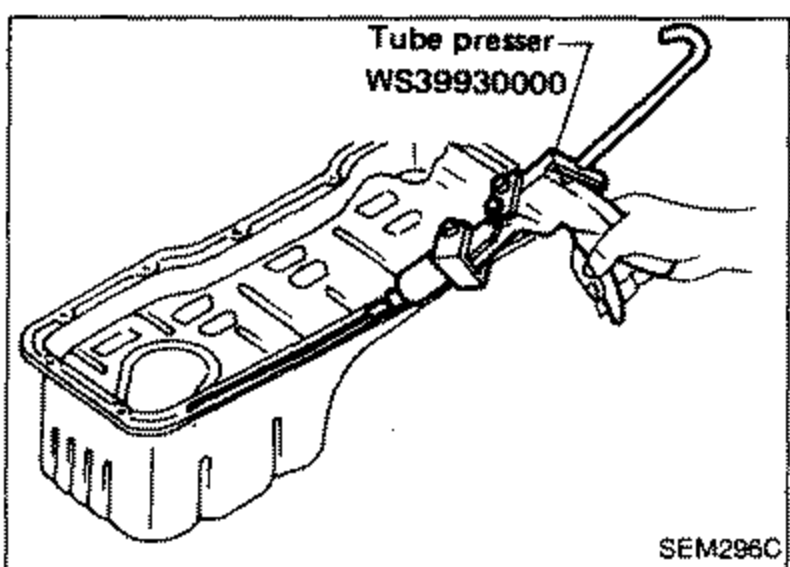

    Tube presser WS39930000 applying a continuous bead of liquid gasket to the oil pan mating surface. Label: 'Tube presser WS39930000'.
    SEM296C
