Engine Removal - Removal (Cont'd)
EM-52prose procedureControl rod/support rod disconnect for M/T models; control cable for A/T models. Center member for 2WD, front member and propeller shaft for 4WD models.
Removal (Cont'd)
R.H. & L.H. drive shaft
CAUTION
When removing drive shaft, be careful not to damage transaxle side grease seal.
Disconnect control rod and support rod from transaxle. (M/T models)
Control rod: 14 - 18 N·m (1.4 - 1.8 kg-m, 10 - 13 ft-lb)
Support rod: 36 - 49 N·m (3.7 - 5.0 kg-m, 27 - 36 ft-lb)
Disconnect control cable from transaxle. (A/T models)
Remove the following:
Center member (2WD models)
Front member (4WD models)
Front exhaust tube
Stabilizer
Radiator fan
Radiator
Propeller shaft (4WD models)

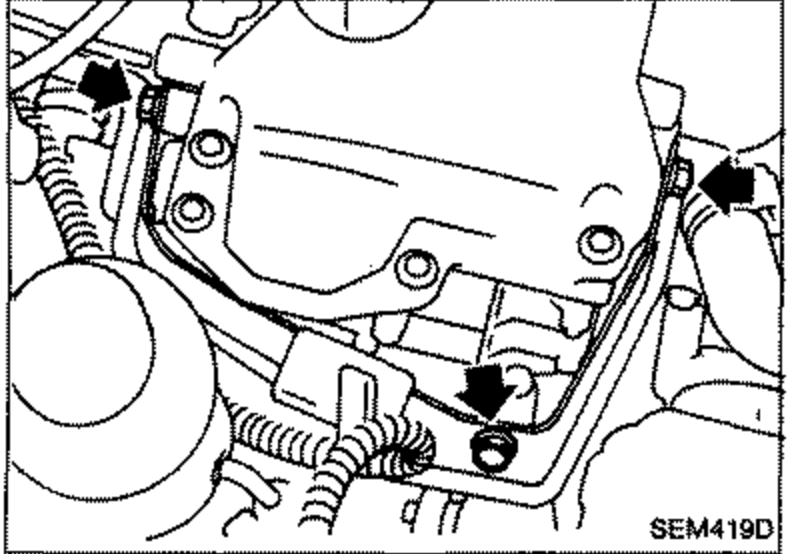

Front mounting bracket
Power steering pump from engine
NOTE
Power steering pump does not need to be disconnected from power steering tubes.
Removal (Cont'd)
- 8Remove air duct and disconnect wires, harness, pipes, hoses and so on. Lift up engine slightly and disconnect or remove all engine mountings.When lifting engine, be careful not to hit it against adjacent parts, especially against brake tubes and brake master cylinder.
SEM419D
