Timing Chain - Installation (Cont'd) - Camshaft Bracket Tightening

EM-94prose procedure

Camshaft bracket bolt types: A, B, C tightened to 9.0-11.8 N·m; bolt type D tightened to 18-25 N·m. Camshaft sprocket torque 137-157 N·m.

Installation (Cont'd)

1

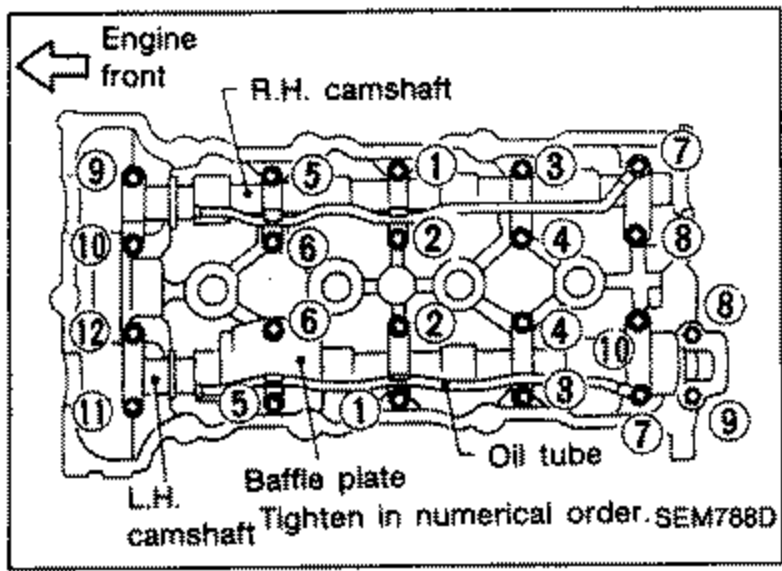

STEP 1: R.H. camshaft - Tighten bolts 9 - 10 in that order then tighten bolts 1 - 8 in that order. Torque: 2 N·m (0.2 kg-m, 1.4 ft-lb). L.H. camshaft - Tighten bolts 11 - 12 in that order then tighten bolts 1 - 10 in that order. Torque: 2 N·m (0.2 kg-m, 1.4 ft-lb)
SEM788D
2
STEP 2: Tighten bolts in the specified order. Torque: 6 N·m (0.6 kg-m, 4.3 ft-lb)
3

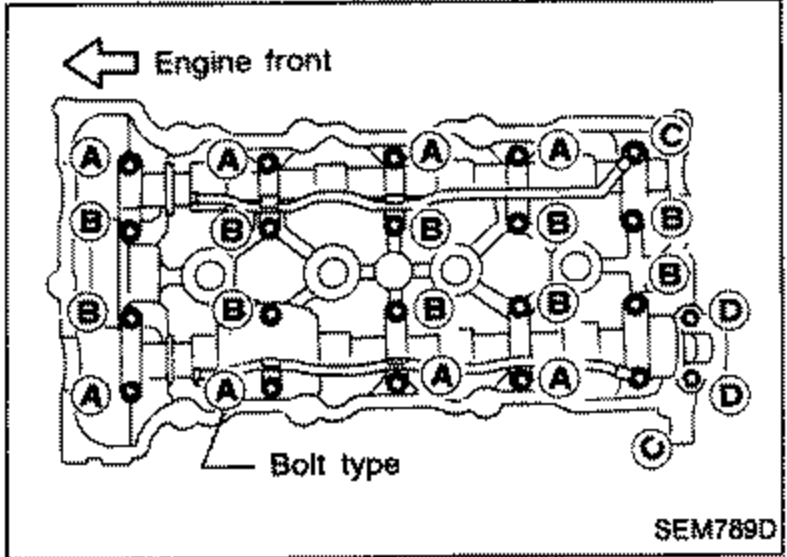

STEP 3: Tighten bolts in the specified order. Torque: 9.0 - 11.8 N·m (0.92 - 1.2 kg-m, 6.7 - 8.7 ft-lb) ... Bolt type A, B, C. Torque: 18 - 25 N·m (1.8 - 2.6 kg-m, 13 - 19 ft-lb) ... Bolt type D.
SEM789D

22

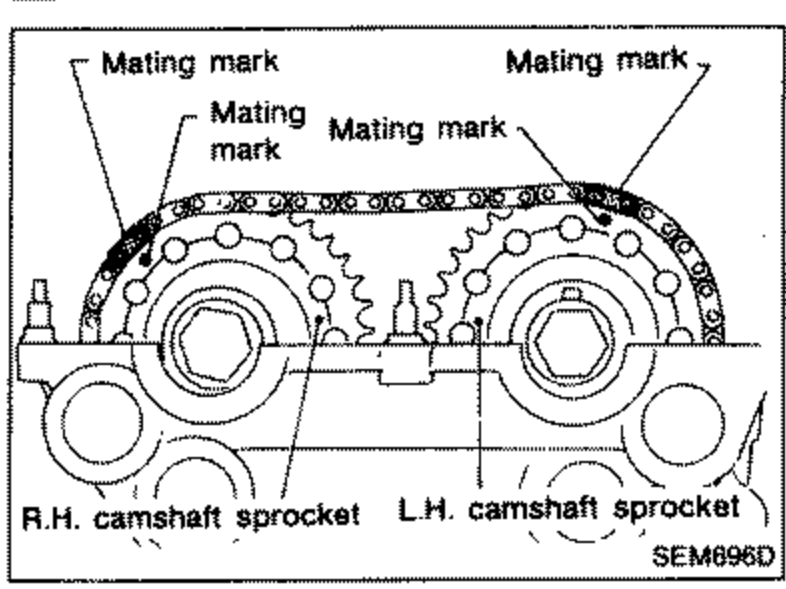

Install camshaft sprockets. Line up mating marks on timing chain with mating marks on camshaft sprockets.
Lock camshafts as shown in figure and tighten to specified torque. Torque: 137 - 157 N·m (14.0 - 16.0 kg-m, 101 - 116 ft-lb)
SEM696D
