Cylinder Head - Removal (Cont'd) / Disassembly

EM-171prose procedure
Continued from EM-170

Removal (Cont'd)

  1. 4

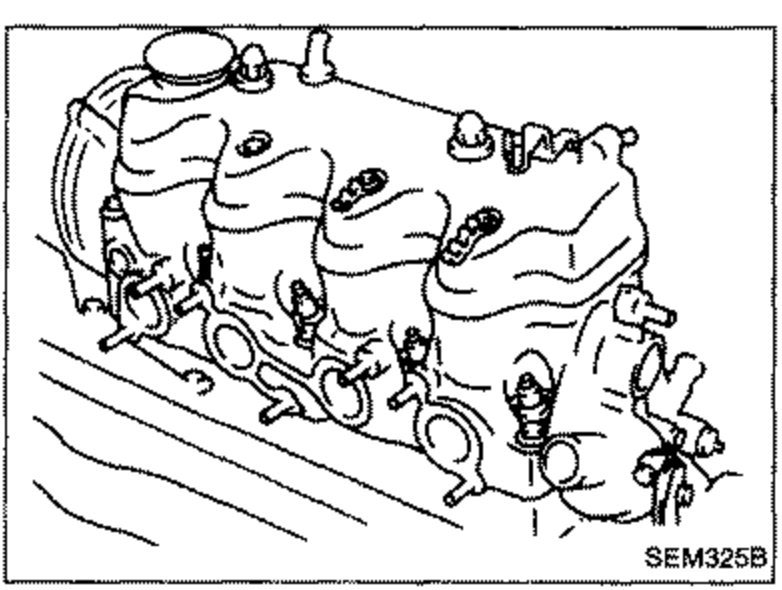

    Remove the following parts. - Exhaust manifold - Air cleaner - Intake manifold - Rocker cover - Distributor
    Top view of the engine showing the intake/exhaust manifolds and accessories to be removed (exhaust manifold, air cleaner, intake manifold, rocker cover, distributor).
    SEM325B
  2. 5
    Remove cylinder head.

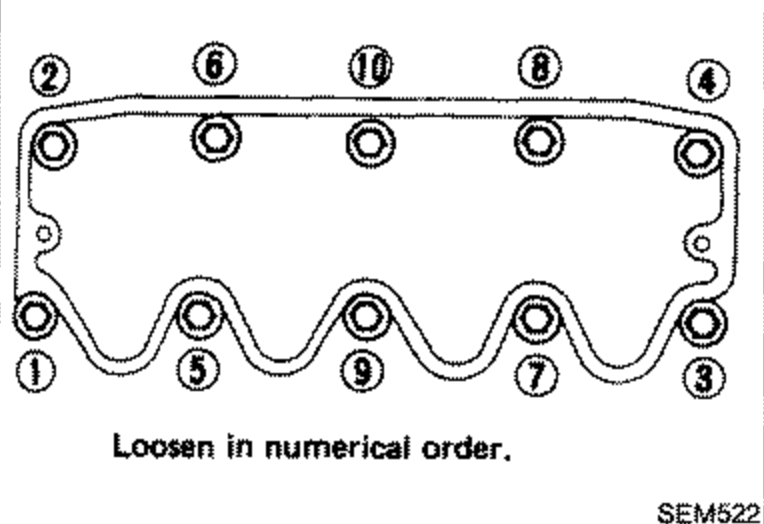

    Cylinder head bolts should be loosened in two or three stages.
    Head warpage or cracking could result from removing in incorrect order.
    Cylinder head bolt loosening sequence diagram. Top view showing 10 numbered bolt positions (1-10) with the instruction 'Loosen in numerical order.'
    SEM522
  3. 6
    Remove intake manifold from cylinder head.

Disassembly

  1. 1

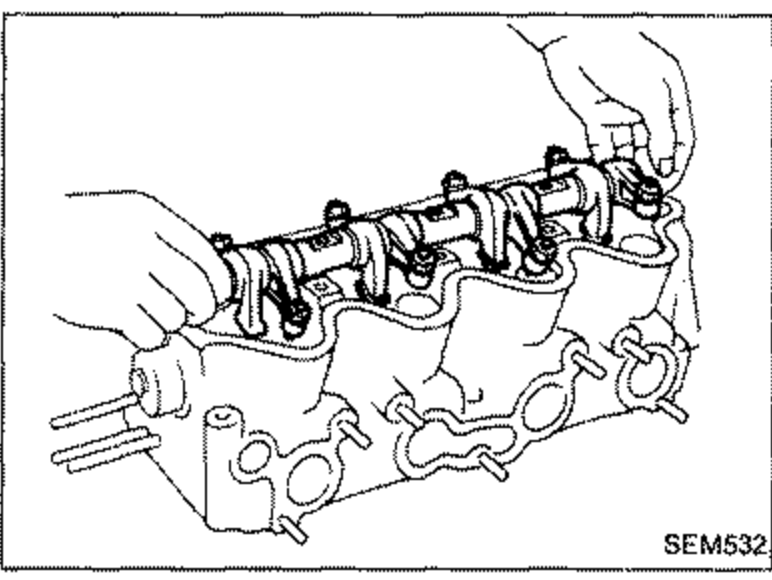

    Remove rocker shaft with rocker arms.
    The bolts should be loosened in two or three stages.
    Keep rocker shaft components in correct order.
    Hands removing the rocker shaft with rocker arms from the cylinder head.
    SEM532
  2. 2

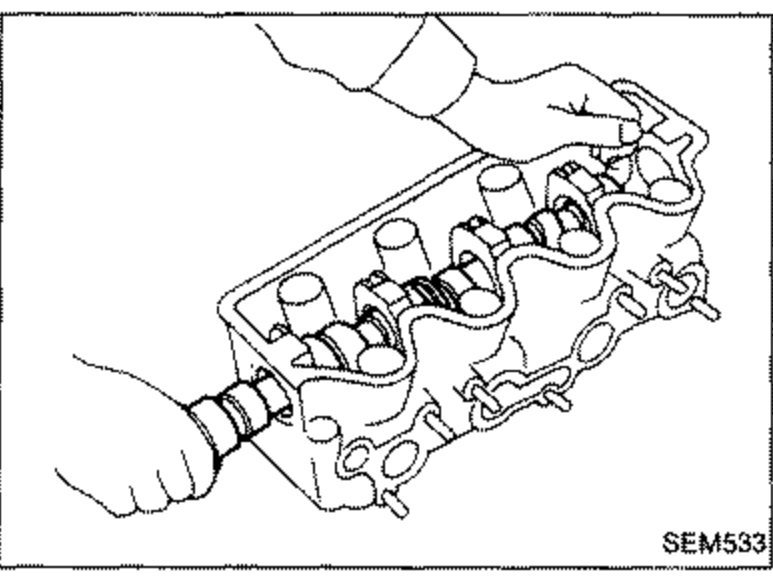

    Remove camshaft from front side.
    Camshaft being removed from the front side of the cylinder head.
    SEM533
  3. 3

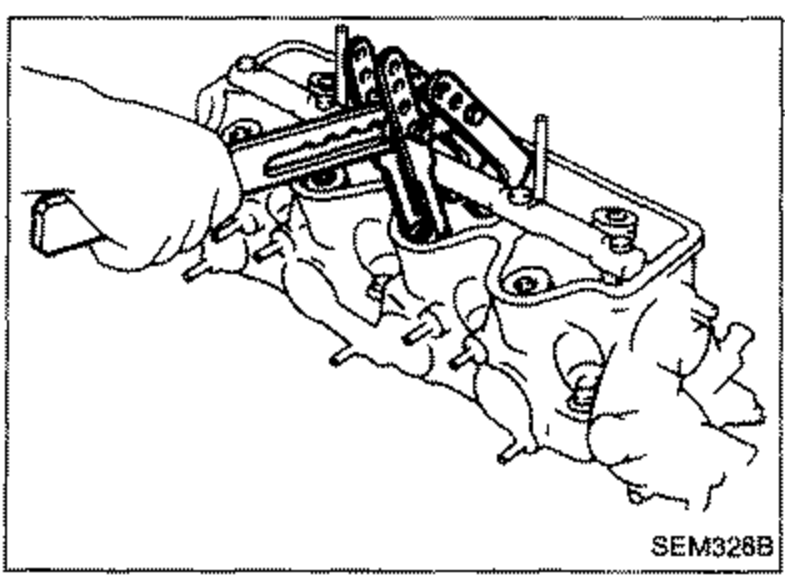

    Remove valve component parts with Tool.
    Valve spring compressor Tool being used to remove valve component parts from the cylinder head.
    SEM328B
