Cylinder Head - Assembly (Cont'd) / Installation

EM-178prose procedure
Continued from EM-177

Assembly (Cont'd)

  1. 3

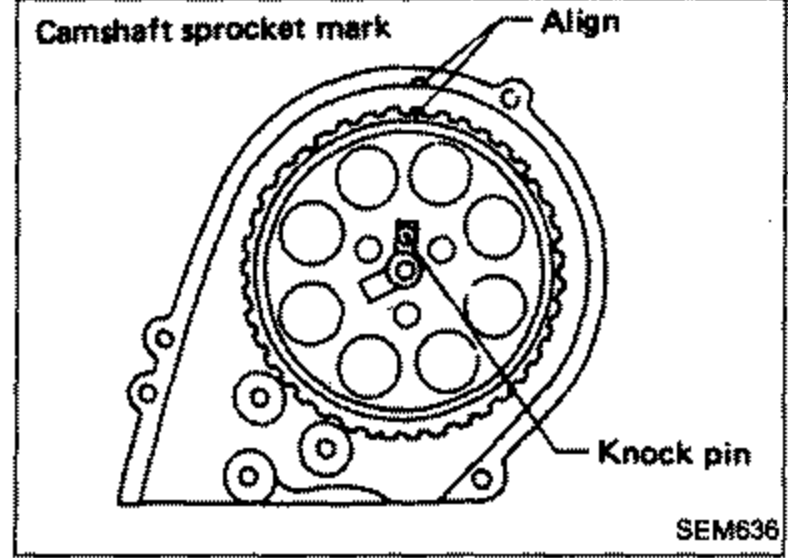

    Install camshaft sprocket. Align camshaft sprocket mark with upper front cover mark.
    Camshaft sprocket installed showing the camshaft sprocket mark aligned with the upper front cover mark, with the knock pin indicated.
    SEM636
  2. 4

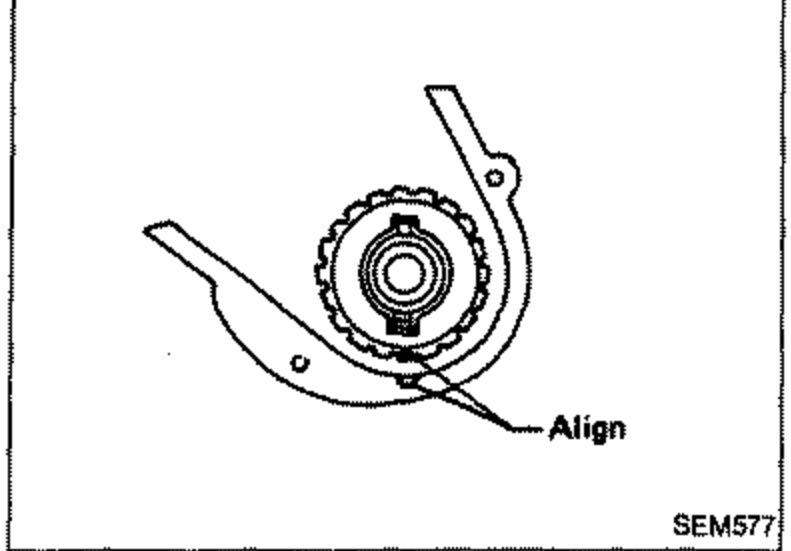

    Align crankshaft sprocket mark with lower front cover mark.
    Crankshaft sprocket showing the alignment mark to be aligned with the lower front cover mark.
    SEM577
  3. 5
    Install intake manifold to cylinder head.

Installation

  1. 1
    Install cylinder head with new gasket.
    Be sure to install washers between cylinder head and bolts.
    There are three kinds of cylinder head bolts with different lengths.
Bolt length "L" - A
95mm (3.74 in)
Bolt length "L" - B
110mm (4.33 in)
Bolt length "L" - C
80mm (3.15 in)
