ACCEL-DRUM UNIT (SR20DE)

EM-105prose procedure

Applies to SR20DE.

Accel-Drum Unit Installation and Adjustment

  1. 1
    Install accel-drum unit and throttle chamber.

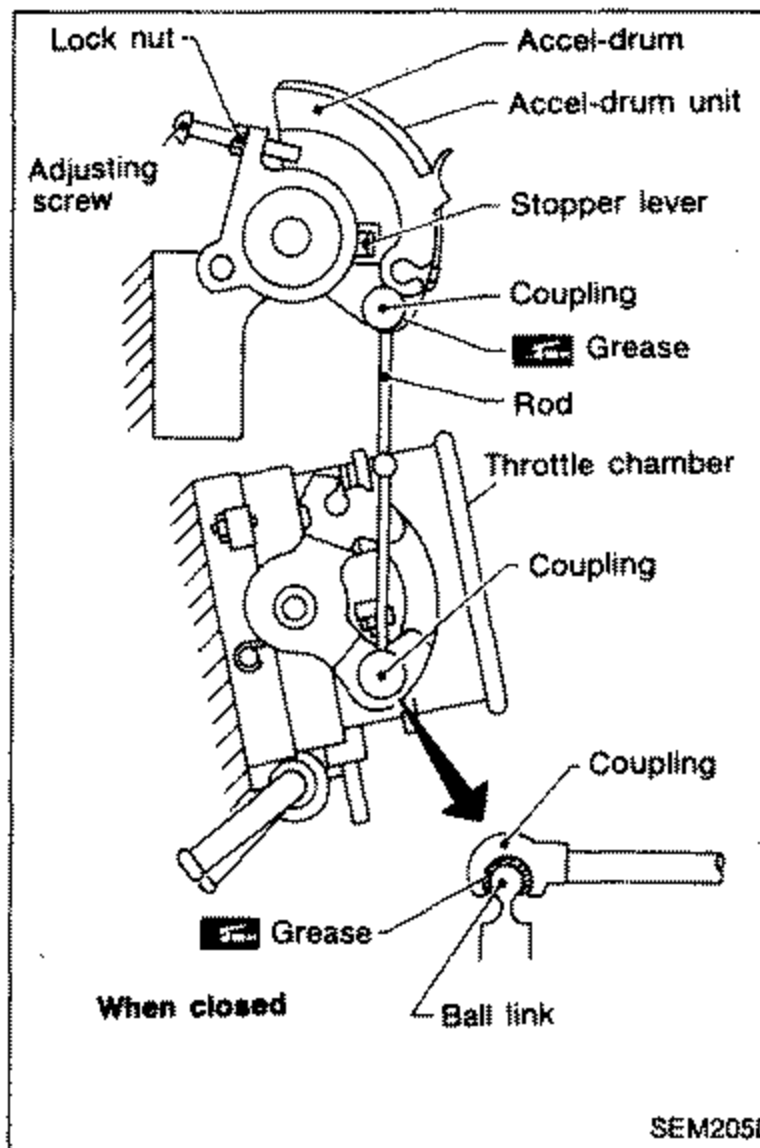

    Accel-drum unit assembly shown 'When closed'. Callouts label the lock nut, accel-drum unit, adjusting screw, stopper lever, coupling, grease application points, rod, throttle chamber, and ball link. Arrow indicates the coupling at the ball link.
    SEM205D
  2. 2
    Apply grease all over the inside of the rod couplings.
    Use genuine Nissan grease or equivalent.
  3. 3
    Insert each one coupling to ball links of throttle chamber and accel-drum unit.
  4. 4
    Loosen lock nut.

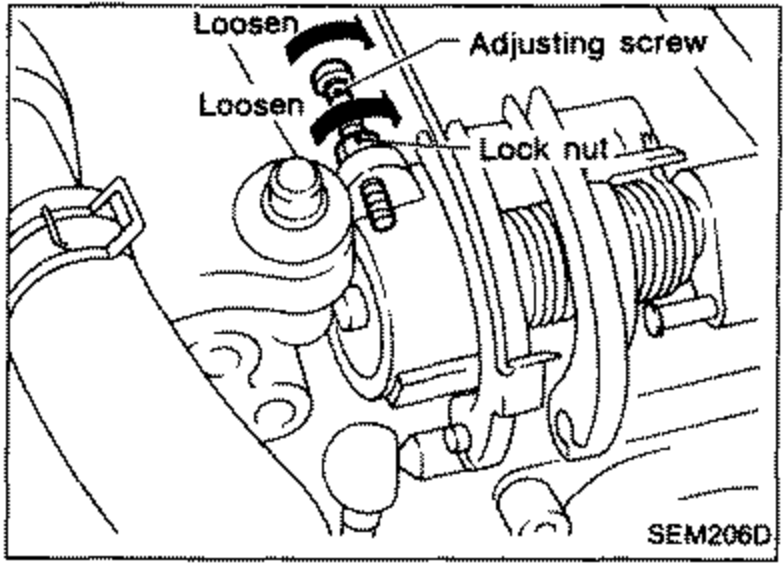

    Engine mounting view with callouts for adjusting screw and lock nut, both labeled 'Loosen'. Arrows point to the loosen locations.
    SEM206D
  5. 5
    Loosen adjusting screw enough.
  6. 6
    Manually turn accel-drum until throttle valve is fully open. Check that stopper lever is not touching adjusting screw. If it is, loosen adjusting screw to maintain clearance between the two.

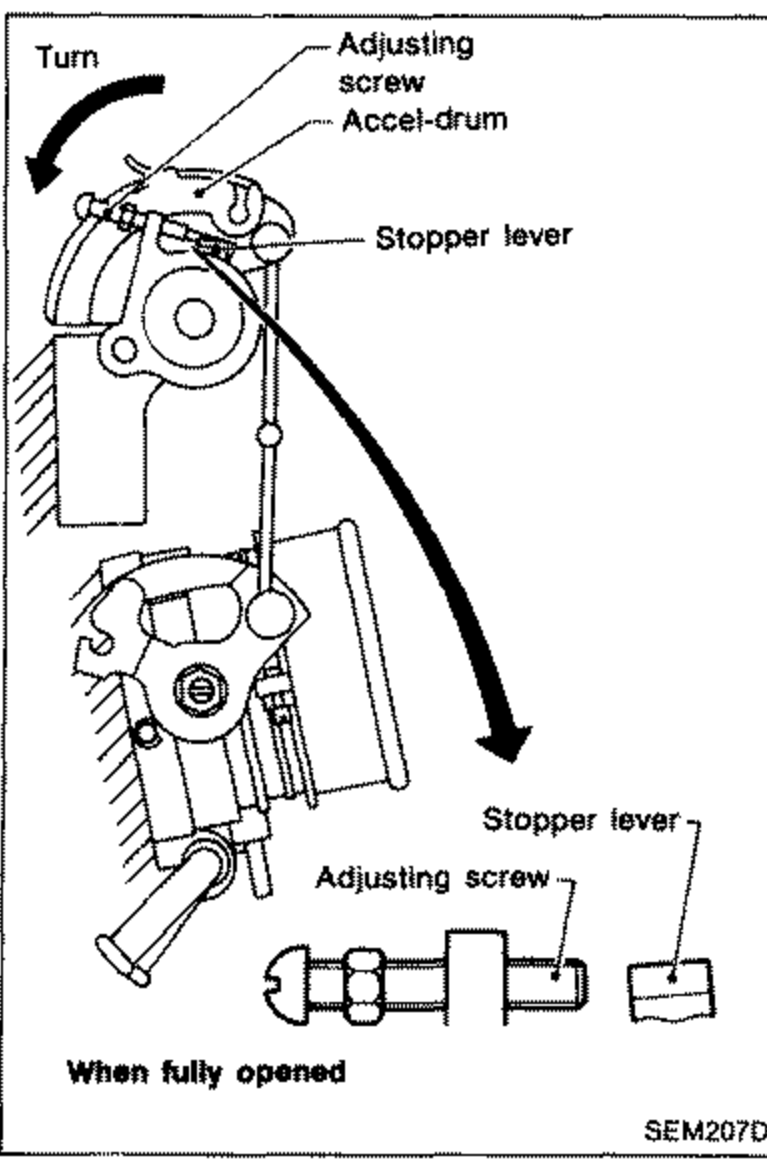

    Accel-drum mechanism shown 'When fully opened'. Callouts label the adjusting screw, accel-drum, stopper lever (top and bottom). A curved arrow labeled 'Turn' indicates rotation of the accel-drum.
    SEM207D
