Cylinder Head - Installation (Cont'd)

EM-180prose procedure
Continued from EM-179

Installation (Cont'd)

  1. 4
    Install rocker shaft with rocker arms (continued).
    Ensure that cutout in center retainer of rocker shaft faces toward exhaust manifold side.

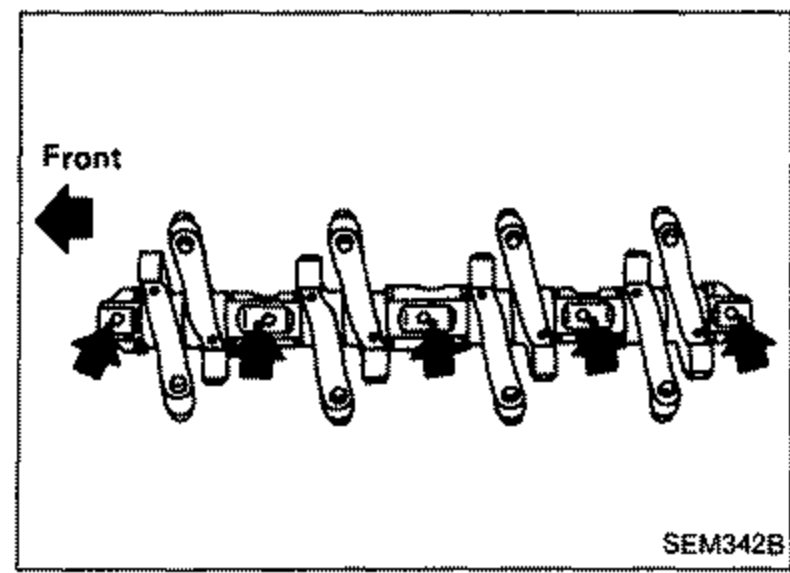

    Rocker shaft assembly with rocker arms, front direction indicated by an arrow on the left.
    SEM342B
  2. 5
    Tighten rocker shaft bolts.
    Make sure that valve clearance adjusting screws are fully loosened.
    Tighten bolts gradually, in two or three stages, outward from center position.

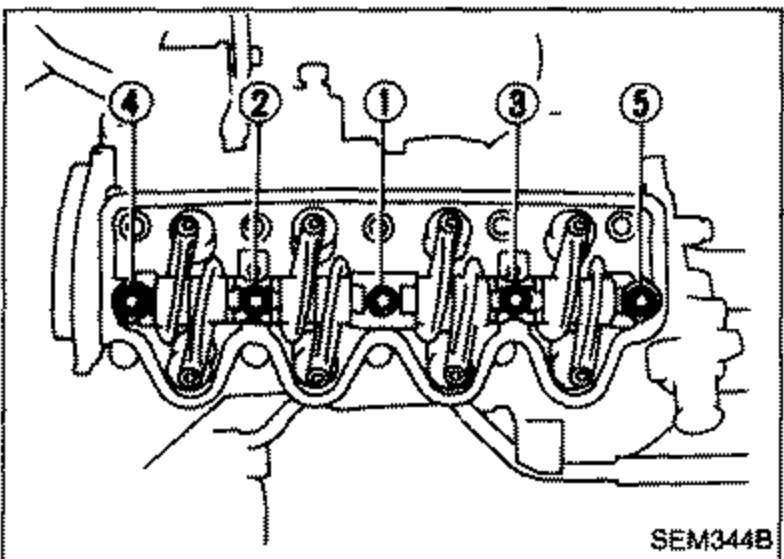

    Top view of cylinder head with rocker shaft showing rocker shaft bolt tightening sequence numbered 1 through 4, tightened outward from center position.
    SEM344B
  3. 6
    Install new bolt stopper on No. 1 and 5 bolts.

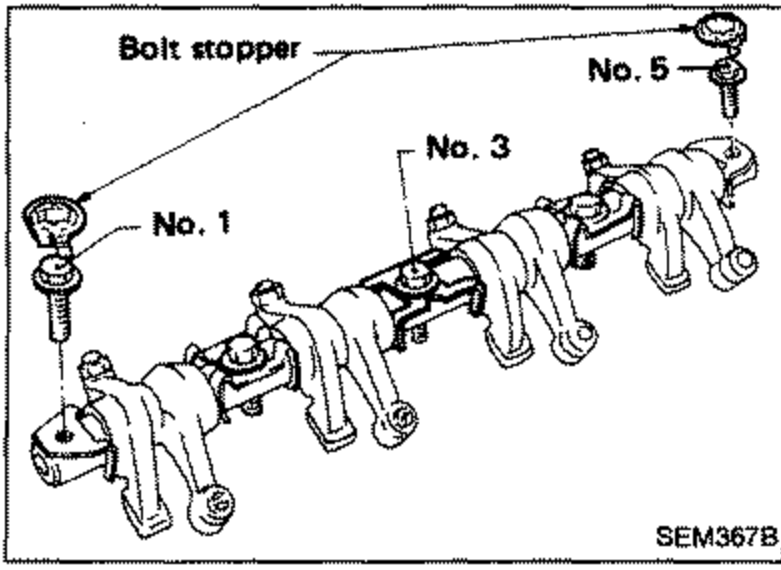

    Rocker shaft showing locations of bolt stoppers to be installed on No. 1, No. 3 and No. 5 bolts.
    SEM367B
  4. 7
    Adjust valve clearance.
    1. Set No. 1 cylinder in top dead center on its compression stroke, and adjust valve clearance 1, 2, 3 and 6.
    2. Set No. 4 cylinder in top dead center on its compression stroke, and adjust valve clearance 4, 5, 7 and 8.

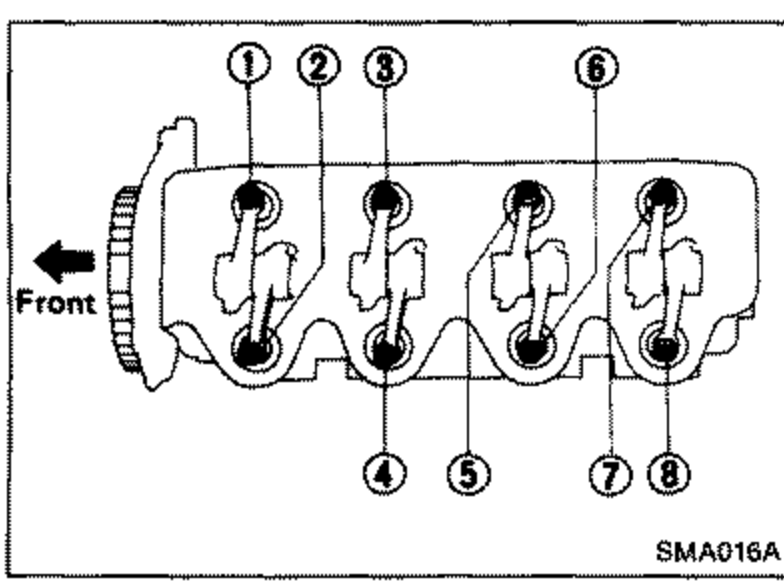

    Top view of cylinder head showing valve clearance adjustment positions, valves numbered 1 through 8, with front direction indicated by an arrow on the left.
    SMA016A
