Timing Chain - Removal (Cont'd)

EM-85prose procedure

SR20DE/SR20DET engine timing chain removal procedure.

Continued from EM-84

Removal (Cont'd)

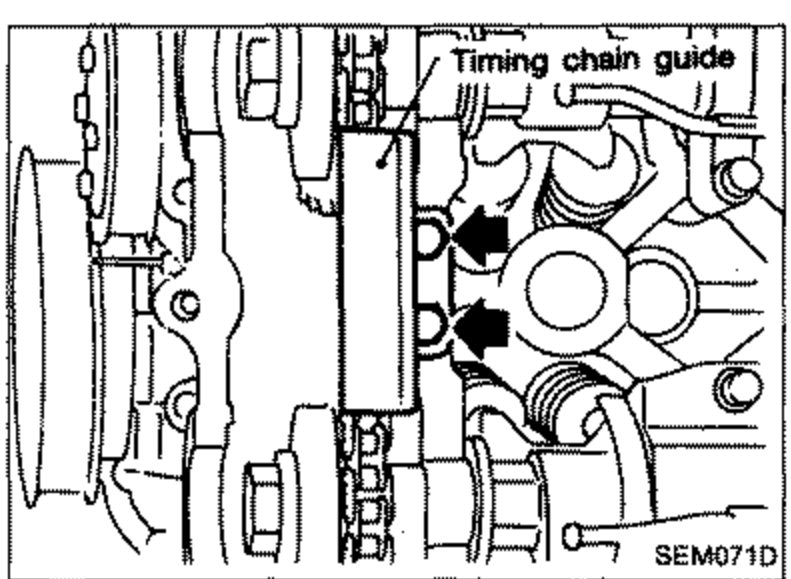

  1. 22
    Remove timing chain guide.
    Engine view showing the timing chain guide being removed. A labelled callout 'Timing chain guide' with arrows points to the guide at the top of the engine.
    SEM071D

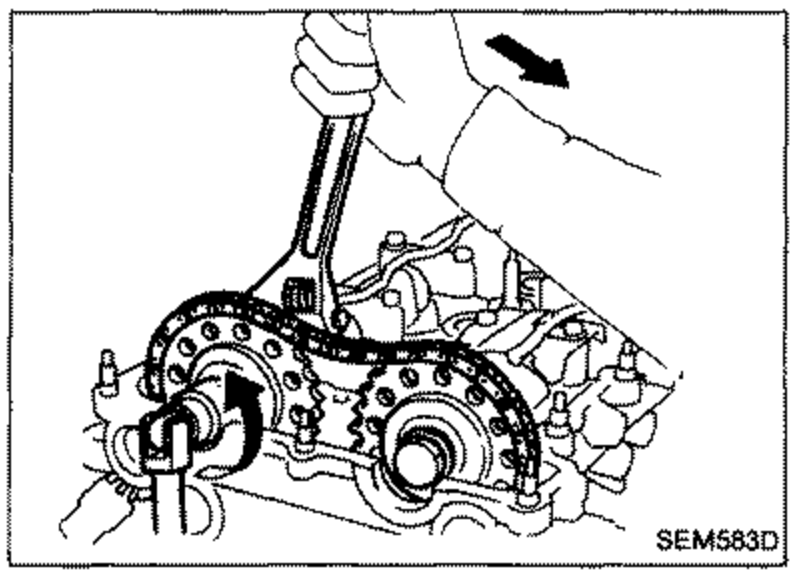

  2. 23
    Remove camshaft sprockets.
    Illustration of camshaft sprockets being removed, with a tool/lever and downward arrow shown at the top.
    SEM583D

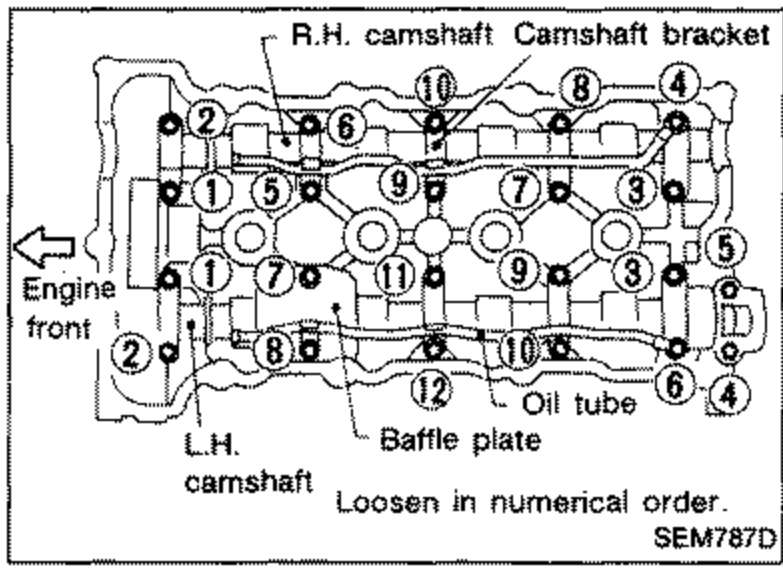

  3. 24
    Remove camshafts, camshaft brackets, oil tubes and baffle plate.
    Top view of the cylinder head showing camshaft bracket bolt loosening sequence numbered 1 through 12. Labels: 'R.H. camshaft', 'Camshaft bracket', 'Oil tube', 'L.H. camshaft', 'Baffle plate', and 'Engine front' arrow on the left. Note reads 'Loosen in numerical order.'
    SEM787D

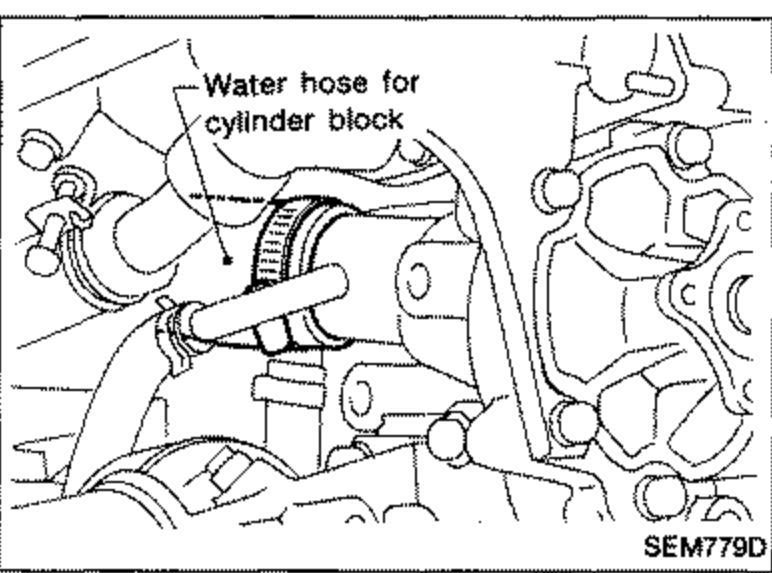

  4. 25
    Remove the following water hoses. Water hose for cylinder block. Water hoses from heater.
    Engine view showing the water hose for cylinder block being removed, with a labelled callout 'Water hose for cylinder block'.
    SEM779D

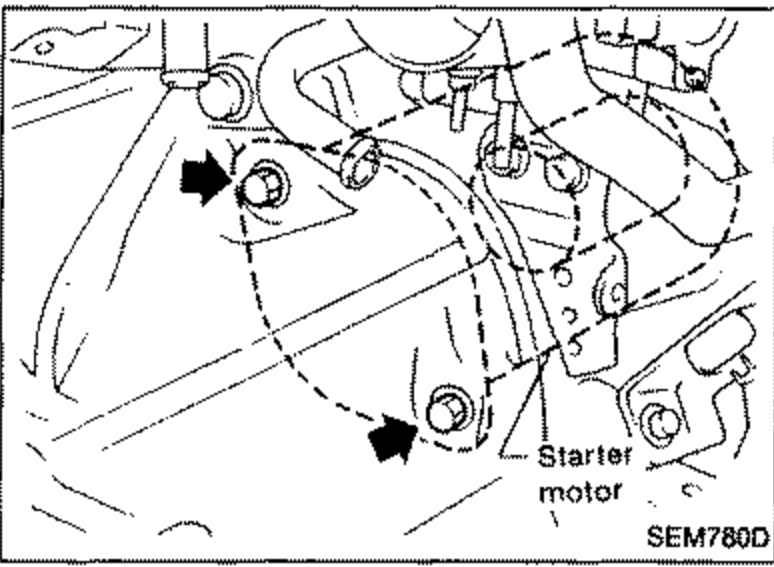

  5. 26
    Remove starter motor.
    Engine view showing the starter motor removal with arrows pointing to bolts and a labelled callout 'Starter motor'.
    SEM780D
