CYLINDER HEAD — Installation

EM-227prose procedure

CD engine. Separate cylinder head bolt tightening sequences for CD20 (88±5 N·m / 75°) and CD17 (103±5 N·m / 82°). Section tab marked 'CD'.

Continued from EM-226

Cylinder Head Installation

1
Install cylinder head gasket.
a. When replacing only cylinder head gasket, install same grade gasket as the one formerly used.
b. When replacing or repairing cylinder block, piston, connecting rod and crankshaft, select gasket referring to "Selecting cylinder head gasket".
2
Install cylinder head and tighten cylinder head bolts according to the following sequence.

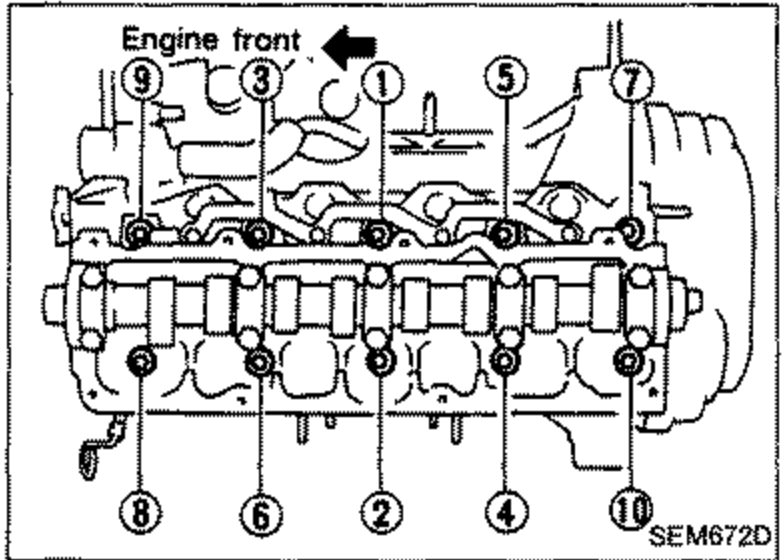

SEM672D

Tightening procedure

1
Apply engine oil to threads and underhead seating face of each bolt.

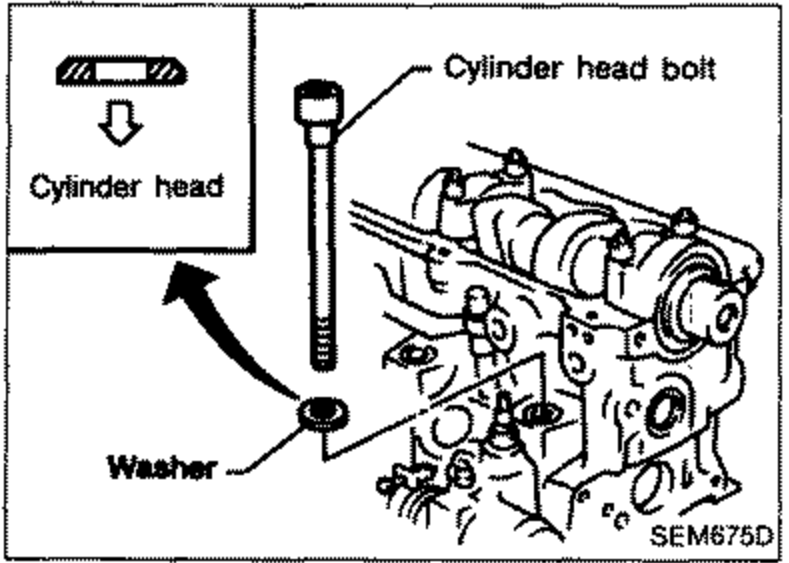

SEM675D

For CD20:

For CD20 — Tighten bolts progressively in the following steps

1
Tighten to 39 N·m (4.0 kg-m, 29 ft-lb)

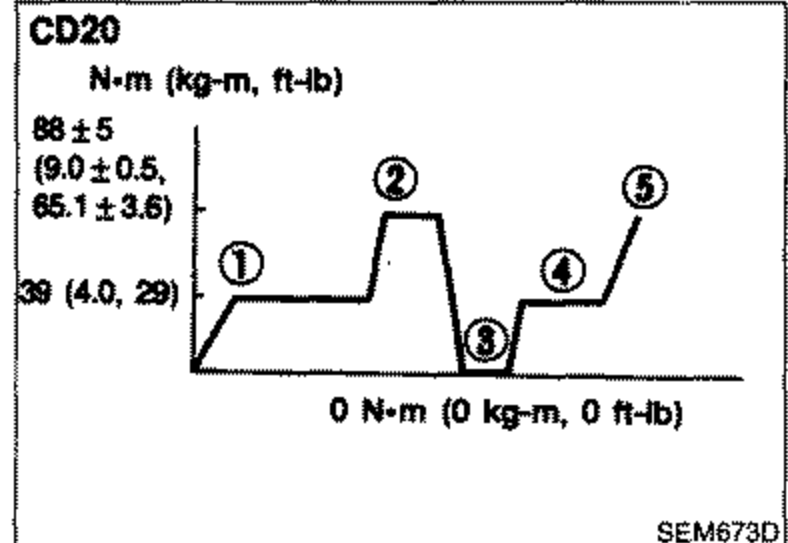

SEM673D
2
Tighten to 88 ± 5 N·m (9.0 ± 0.5 kg-m, 65.1 ± 3.6 ft-lb)
3
Return to 0 N·m (0 kg-m, 0 ft-lb)
4
Tighten to 39 N·m (4.0 kg-m, 29 ft-lb)
5
Tighten to 75 +5/-0 degrees
If it is difficult to check tightening angle of bolt, tighten to 83 to 93 N·m (8.5 to 9.5 kg-m, 61 to 69 ft-lb).

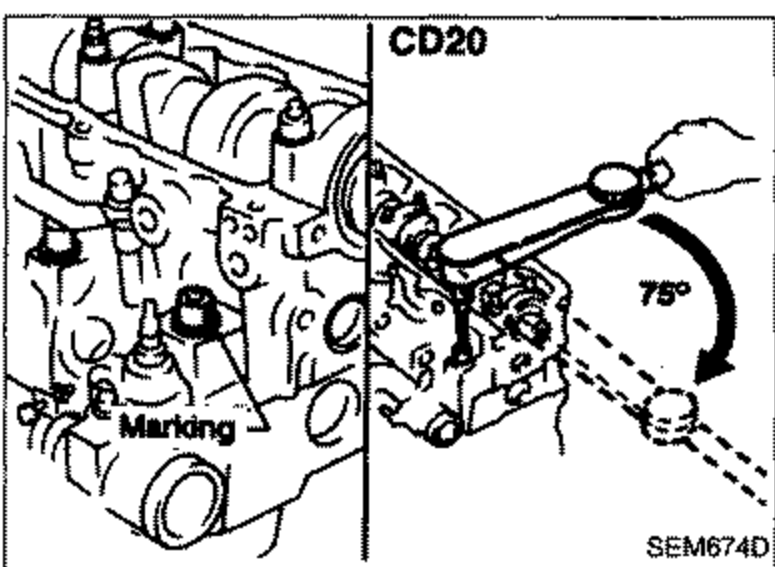

SEM674D

For CD17:

For CD17 — Tighten bolts progressively in the following steps

1
Tighten to 39 N·m (4.0 kg-m, 29 ft-lb)
2
Tighten to 103 ± 5 N·m (10.5 ± 0.5 kg-m, 76 ± 3.6 ft-lb)
3
Return to 0 N·m (0 kg-m, 0 ft-lb)
4
Tighten to 39 N·m (4.0 kg-m, 29 ft-lb)
5
Tighten to 82 +5/-0 degrees
If it is difficult to check tightening angle of bolt, tighten to 98 to 108 N·m (10.0 to 11.0 kg-m, 72 to 80 ft-lb).
