Camshaft Timing Belt — CD20

EM-206parts diagram

CD20 engine.

TIMING BELT

Camshaft Timing Belt — CD20

CAUTION

a. Do not bend or twist timing belt. b. After removing timing belt, do not turn crankshaft and camshaft separately because valves will strike piston heads. c. Ensure that timing belt, camshaft sprocket, crankshaft sprocket and belt tensioner are clean and free from oil and water.

Parts DiagramFig. fig1

Part Name	Notes
Front camshaft sprocket	—
Plate	—
Bolt (camshaft sprocket)	87 - 107 (8.9 - 10.9, 64 - 79)
Timing belt	—
Idler	—
Idler bolt	32 - 40 (3.3 - 4.1, 24 - 30)
Belt tensioner	—
Tensioner bolt	32 - 40 (3.3 - 4.1, 24 - 30)
Belt cover upper bolt	6 - 7 (0.6 - 0.7, 4.3 - 5.1)
Belt cover upper	—
Belt cover bolt	3 - 5 (0.3 - 0.5, 2.2 - 3.6)
Belt cover center (Engine mounting bracket)	—
Engine mounting bracket bolt	37 - 50 (3.8 - 5.1, 27 - 37)
Crankshaft sprocket	—
Crank pulley bolt	142 - 152 (14.5 - 15.5, 105 - 112)
Belt cover lower	—
Belt cover lower bolt	3 - 5 (0.3 - 0.5, 2.2 - 3.6)
Lower fastener	9 - 11 (0.9 - 1.1, 6.5 - 8.0)

REMOVAL

1

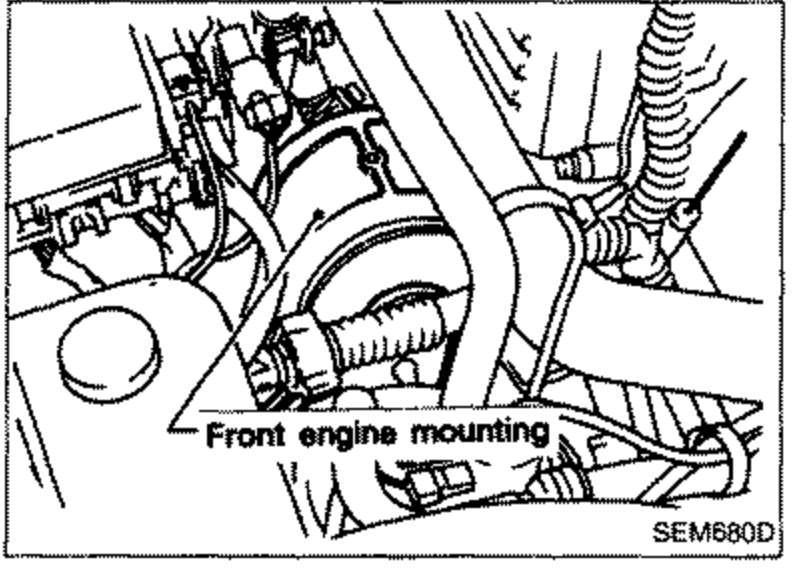

Remove engine front mounting bracket.
When removing, support front portion of engine with transmission jack or hoist.
SEM680D
2

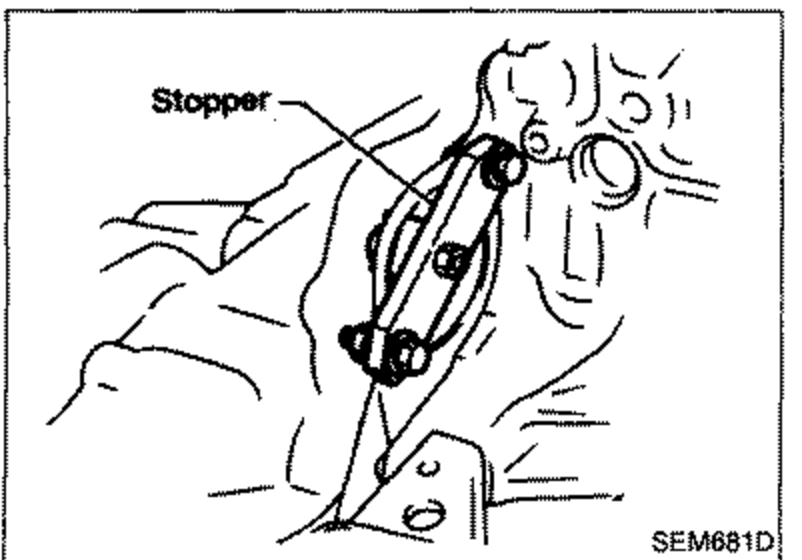

Remove starter motor, and install ring gear stopper using mounting bolt holes.
SEM681D
3
Remove crank pulley bolt.
4
Remove crank pulley using puller.
Be sure to securely attach puller jaws. Attach jaws only to the rear side of pulley.
