Nissan 100NX N14 silhouetteN14

Turbocharger - Removal

EM-130prose procedure

SR20DET (turbocharged) engine only.

Removal

  1. 1
    Drain coolant from radiator and cylinder block.
  2. 2
    Remove engine under cover.
  3. 3
    Remove front exhaust tube.

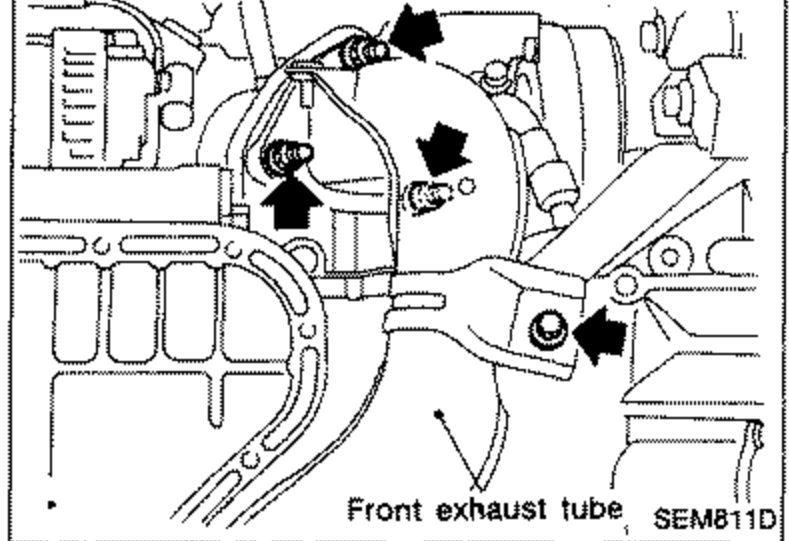

    Engine bay view showing the front exhaust tube to be removed, with bold arrows pointing to the fasteners/connections to be loosened. Labeled 'Front exhaust tube'.
    SEM811D
  4. 4
    Remove intercooler cover and intercooler.

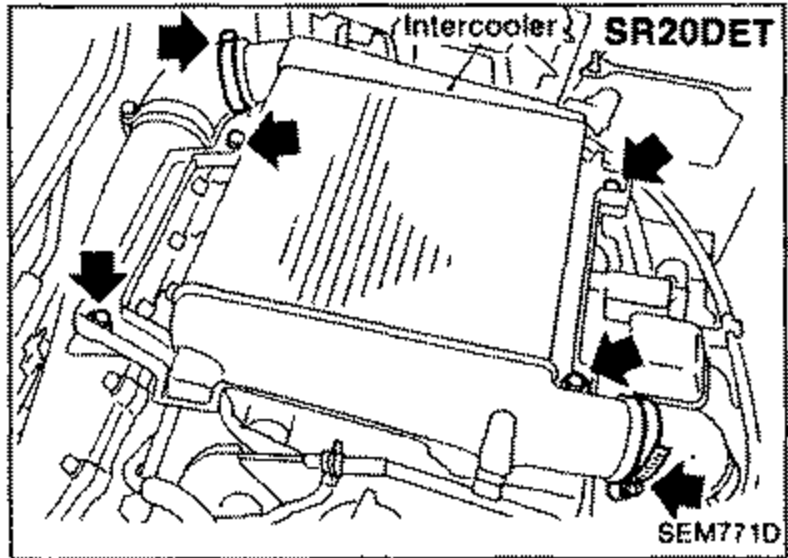

    Engine bay view of the SR20DET intercooler and intercooler cover with bold arrows indicating fasteners to remove. Labeled 'Intercooler', 'SR20DET'.
    SEM771D
  5. 5
    Remove radiator with fans.
  6. 6
    Remove heat insulator.

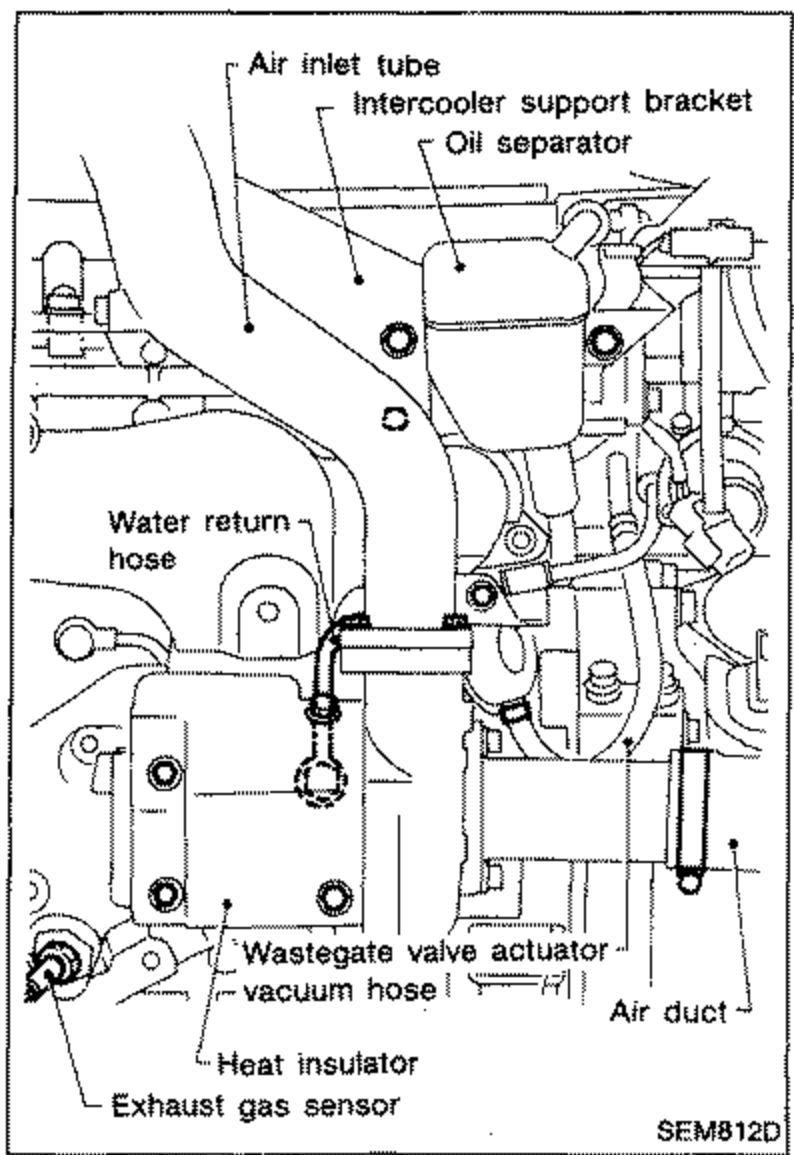

    Detailed view of turbocharger-related components showing the air inlet tube, intercooler support bracket, oil separator, water return hose, wastegate valve actuator vacuum hose, air duct, heat insulator and exhaust gas sensor.
    SEM812D
  7. 7
    Remove water return tube.
  8. 8
    Remove air inlet tube.
  9. 9
    Remove oil separator and intercooler support bracket.
  10. 10
    Remove wastegate valve actuator vacuum hose.
  11. 11
    Remove air duct for turbocharger unit.
  12. 12
    Remove exhaust gas sensor.
