Camshaft Timing Belt — CD17 (Cont'd)
EM-205prose procedureCD17 engine.
TIMING BELT
Camshaft Timing Belt — CD17 (Cont'd)

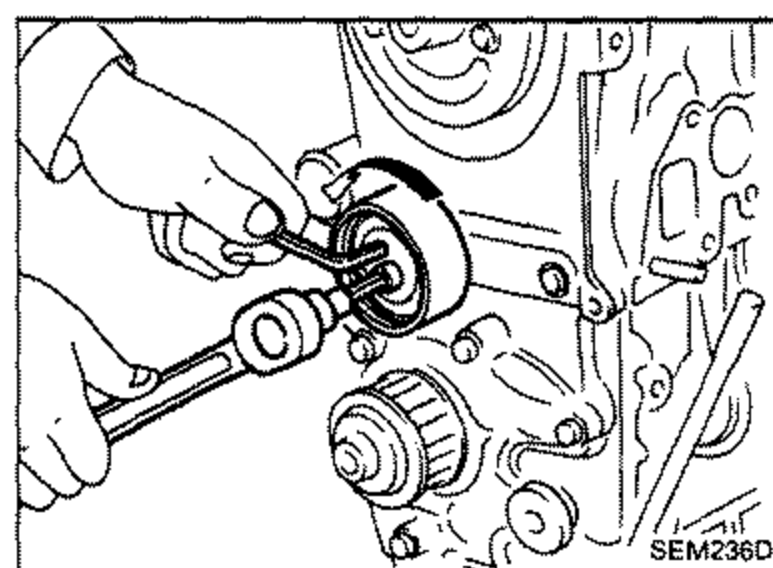

- 3Install tensioner and return spring. Temporarily tighten bolts so that tensioner is set at the fully outside position.
SEM236D - 4Install idler and tighten bolt to the specified torque.
- 5Check tensioner and idler for smooth turning.

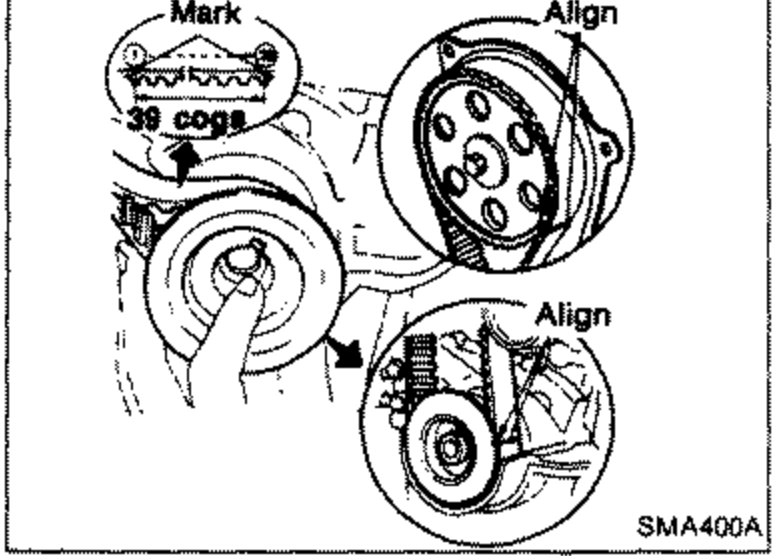

- 6Install timing belt with crankshaft sprocket.a. Align white lines on timing belt with punchmarks on camshaft sprocket and crankshaft sprocket.b. Point arrow on timing belt toward belt cover.

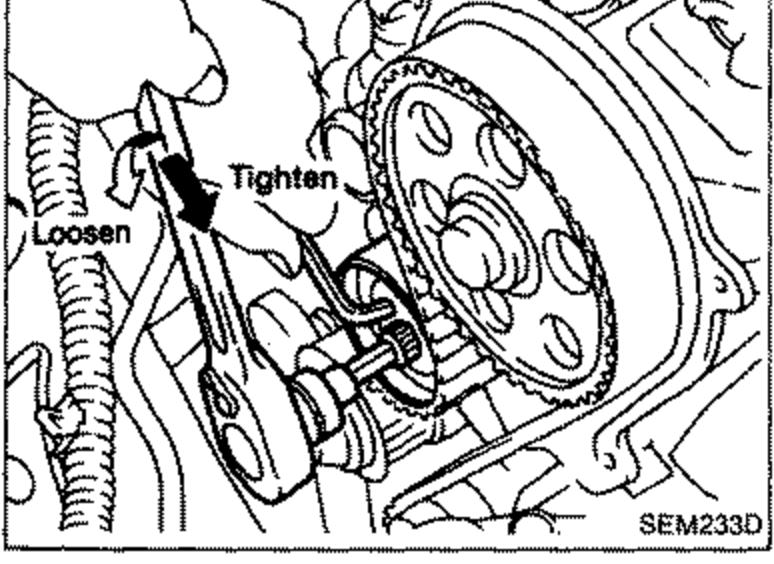

SMA400A - 7Adjust timing belt tension.1) Loosen tensioner lock bolt to apply tension to timing belt.2) Rotate crankshaft clockwise two turns to apply the specified tension to timing belt.3) Tighten tensioner lock bolt while holding tensioner pulley with hexagon wrench.
