Timing Chain - Installation (Cont'd)

EM-95prose procedure

SR engine (SR20DE/SR20DET) page per SR section header.

Continued from EM-94

Installation (Cont'd)

  1. 23

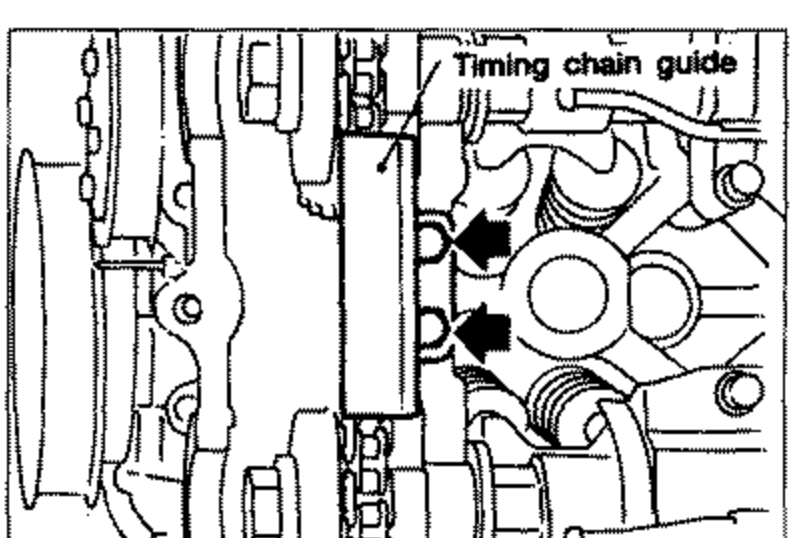

    Install timing chain guide.
    Cylinder head / front cover area showing the timing chain guide being installed. Two black arrows point to the chain guide and its mounting position. Label 'Timing chain guide' at top.
    SEM071D
  2. 24

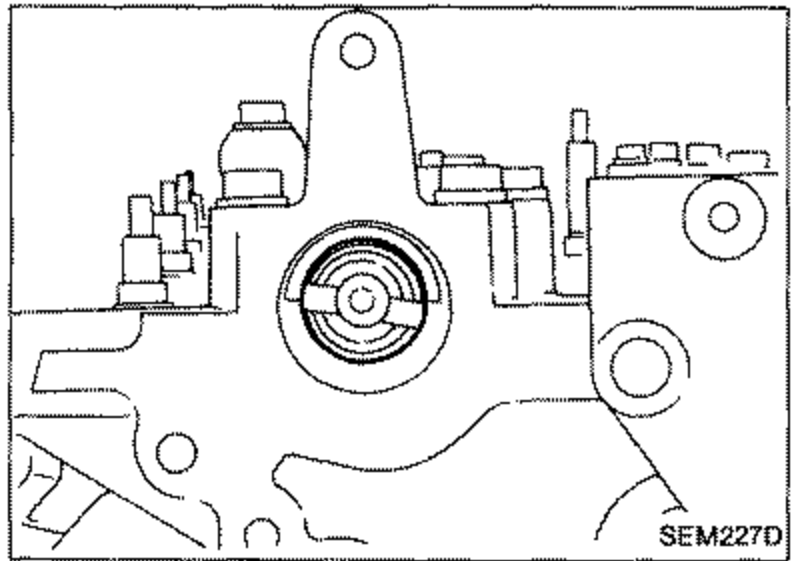

    Install distributor. Make sure that position of camshaft is as shown in figure. After installing, confirm that distributor rotor head is set as shown in figure.
    Front of engine / distributor mounting area showing the camshaft/distributor drive position with the rotor centered. Illustrates the correct camshaft position before installing the distributor.
    SEM227D
  3. 25

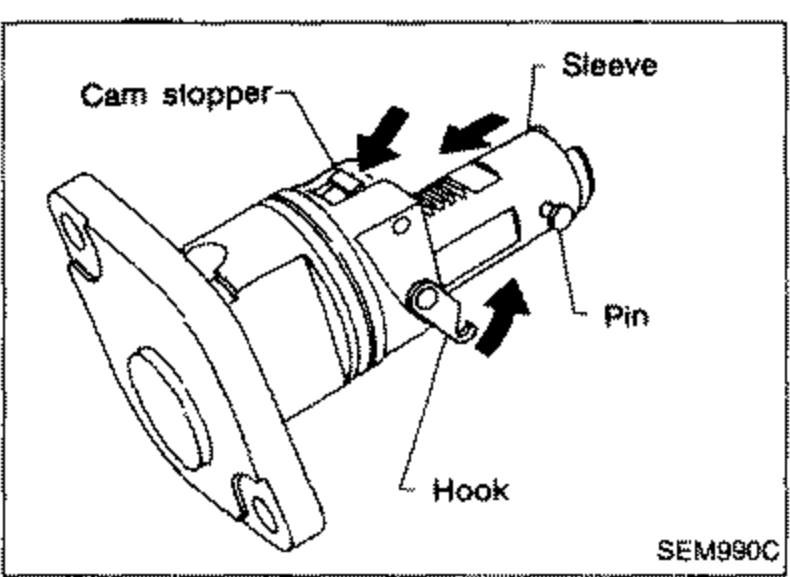

    Install chain tensioner. Press cam stopper down and "press-in" sleeve until hook can be engaged on pin. When tensioner is bolted in position the hook will release automatically. Ensure arrow "A" faces the front of the engine.
    Chain tensioner assembly with black arrows. Labels 'Cam stopper', 'Sleeve', 'Pin', and 'Hook' identify its parts. Shows pressing the cam stopper down and pressing in the sleeve.
    SEM990C
