TIMING CHAIN

EM-83prose procedure

Step 15 SR20DET only. Step 17 differs: SR20DE removes intake manifold supports only; SR20DET also removes intercooler support bracket.

Continued from EM-82

Removal (Cont'd)

  1. 15
    Remove recirculation valve bracket. (SR20DET only)

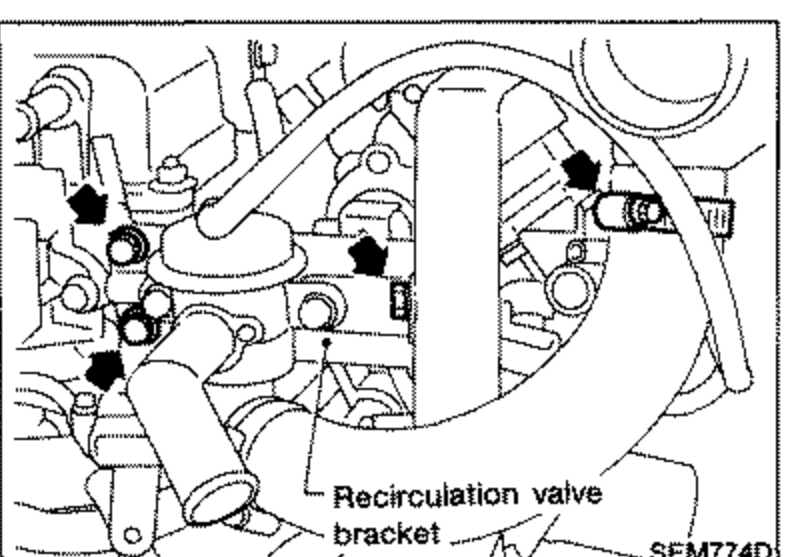

    Recirculation valve bracket on the SR20DET engine; arrows point to its mounting bolts. Labeled 'Recirculation valve bracket'.
    SEM774D
  2. 16
    Remove rocker cover.

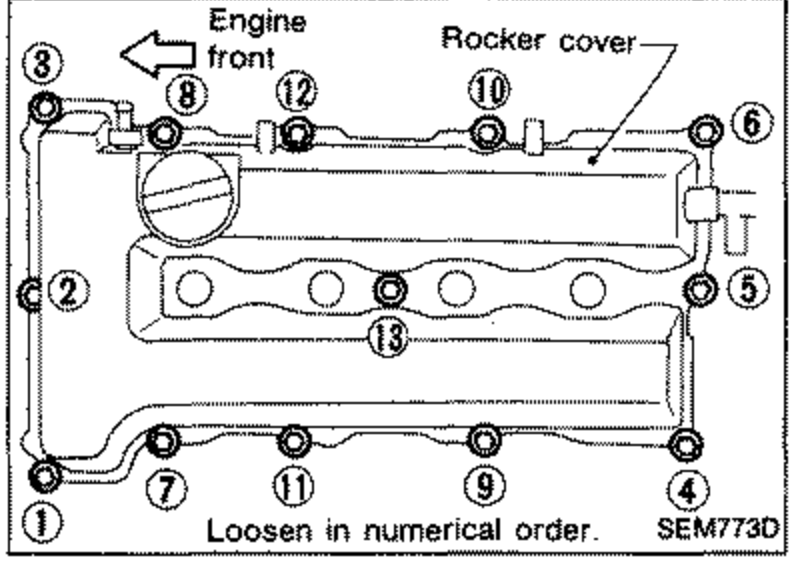

    Rocker cover bolt loosening sequence with numbered bolt positions. 'Engine front' arrow points left. Labeled 'Rocker cover'. Note reads 'Loosen in numerical order.'
    SEM773D
  3. 17
    SR20DE: Remove intake manifold supports. SR20DET: Remove intake manifold supports and intercooler support bracket.

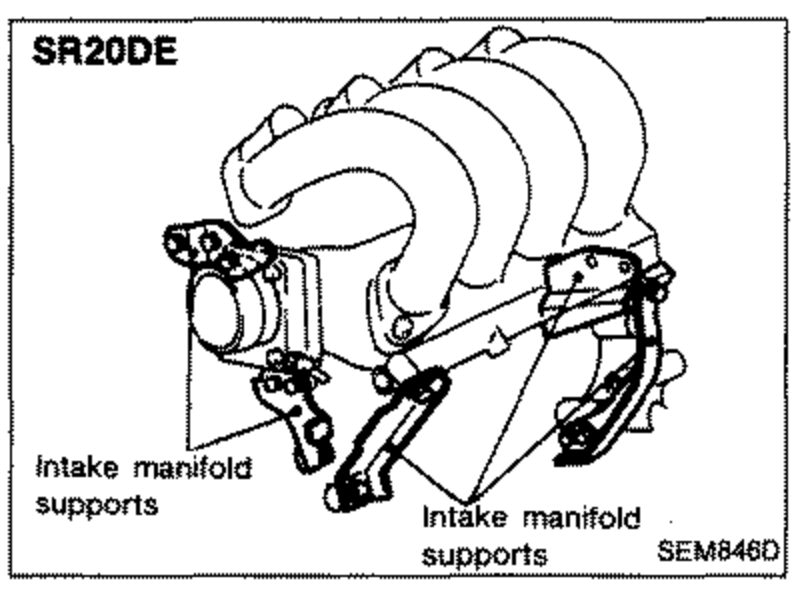

    SR20DE intake manifold supports; arrows/labels point to the intake manifold supports to remove. Labeled 'SR20DE' and 'Intake manifold supports'.
    SEM846D
  4. 18
    Remove oil filter bracket and power steering oil pump bracket.

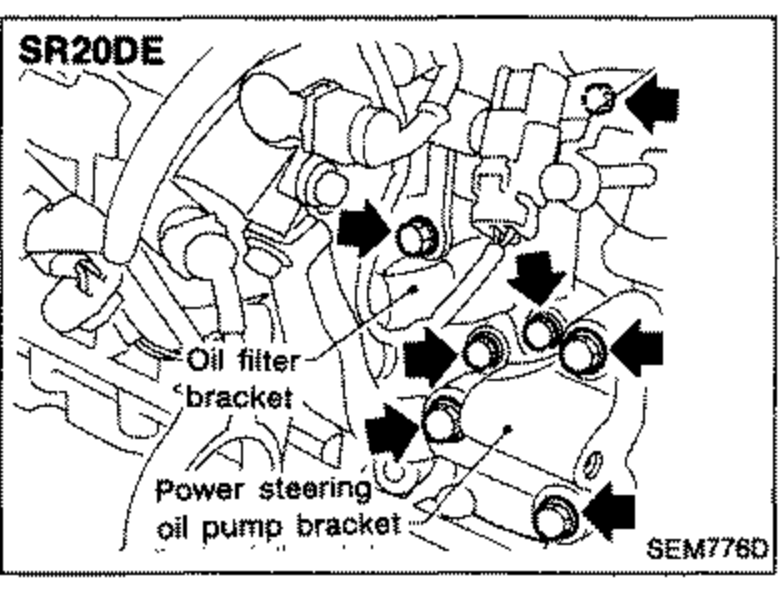

    SR20DE oil filter bracket and power steering oil pump bracket; arrows point to mounting bolts. Labeled 'SR20DE', 'Oil filter bracket', and 'Power steering oil pump bracket'.
    SEM776D
