Cylinder Head - Installation (Cont'd)
EM-179prose procedureInstallation (Cont'd)

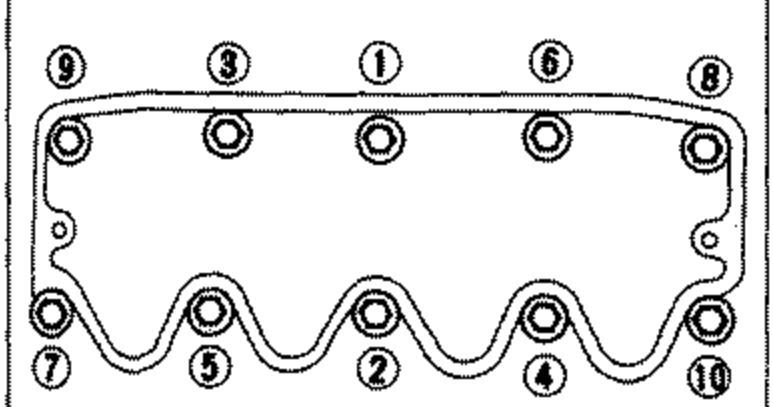

- 2Apply oil to the thread portion and seat surface of cylinder head bolts and tighten cylinder head bolts with washers.

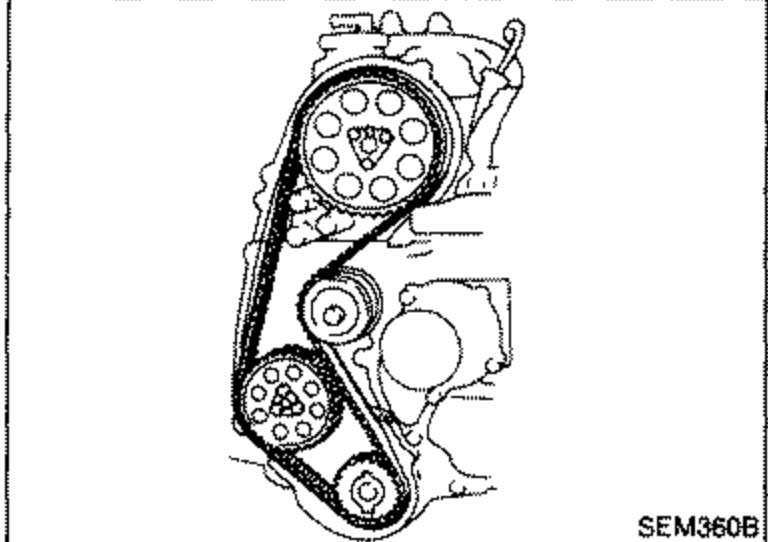

SEM580 - 3Install timing belt and adjust belt tension. Refer to "TIMING BELT".

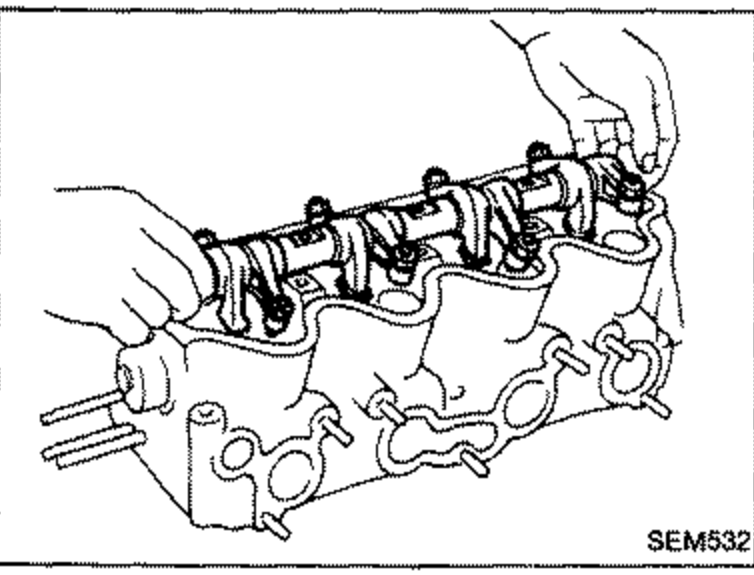

SEM360B - 4Install rocker shaft with rocker arms.Apply engine oil to rocker shaft and interior of rocker arm.Ensure that punched mark on rocker shaft faces toward front side and oil holes in rocker shaft face downward.
SEM532
IMPORTANT
Tightening procedure:
1st: Tighten all bolts to 29 N·m (3.0 kg-m, 22 ft-lb)
2nd: Tighten all bolts to 69 N·m (7.0 kg-m, 51 ft-lb)
3rd: Loosen all bolts completely
4th: Tighten all bolts to 29 N·m (3.0 kg-m, 22 ft-lb)
5th: Turn each bolt clockwise the specified number of degrees. If an angle wrench is not available, tighten all bolts to 69 to 74 N·m (7.0 to 7.5 kg-m, 51 to 54 ft-lb).
| Specification | Value |
|---|---|
| Specified number of degrees - A | 45 - 50degrees |
| Specified number of degrees - B | 55 - 60degrees |
| Specified number of degrees - C | 40 - 45degrees |
Specified number of degrees - A
45 - 50degrees
Specified number of degrees - B
55 - 60degrees
Specified number of degrees - C
40 - 45degrees
