CYLINDER HEAD — Installation

EM-228prose procedure

CD engine. Cylinder head gasket selection procedure shown for CD17. Section tab marked 'CD'.

Continued from EM-227

Rocker cover installation

  1. 3
    Install rocker cover.

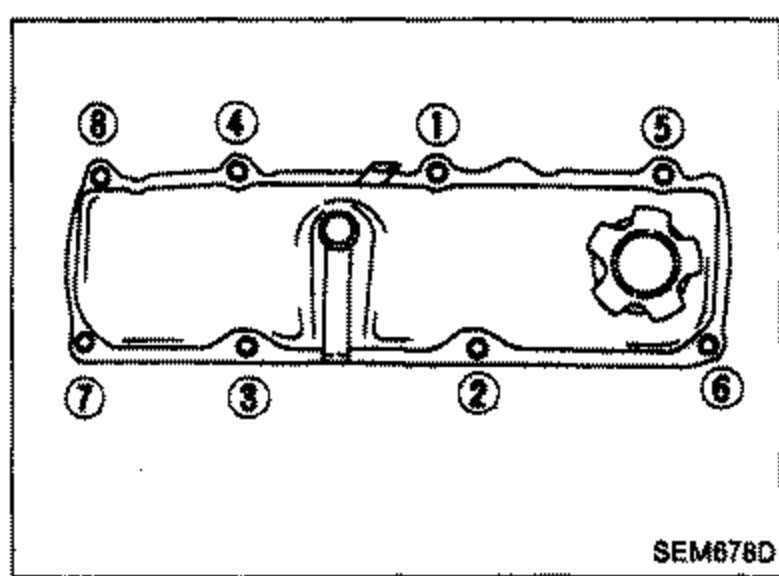

    Install rocker cover in the sequence shown at left.
    Apply sealing compound (THREE-BOND No. 10 or equivalent) to both ends of brackets No. 1 and No. 5.
    Rocker cover shown from above with bolt tightening sequence indicated by circled numbers (1 through 8) around the cover perimeter.
    SEM676D

Selecting cylinder head gasket — CD17

  1. 1

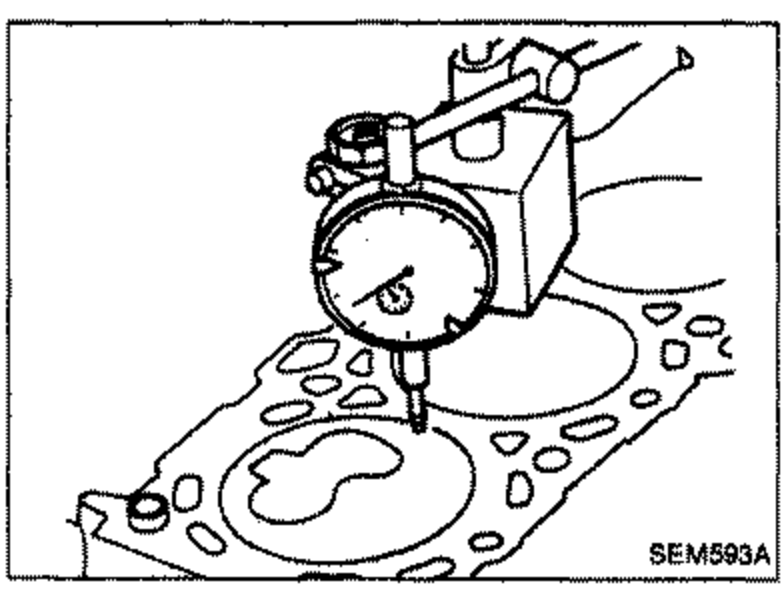

    Set dial gauge and needle on cylinder block surface.
    Dial gauge assembly set up on a cylinder block surface with the needle positioned on a piston, for measuring piston projection. Shows the dial indicator mounted on a stand resting on the block deck.
    SEM593A
  2. 2
    Adjust scale to zero.
  3. 3

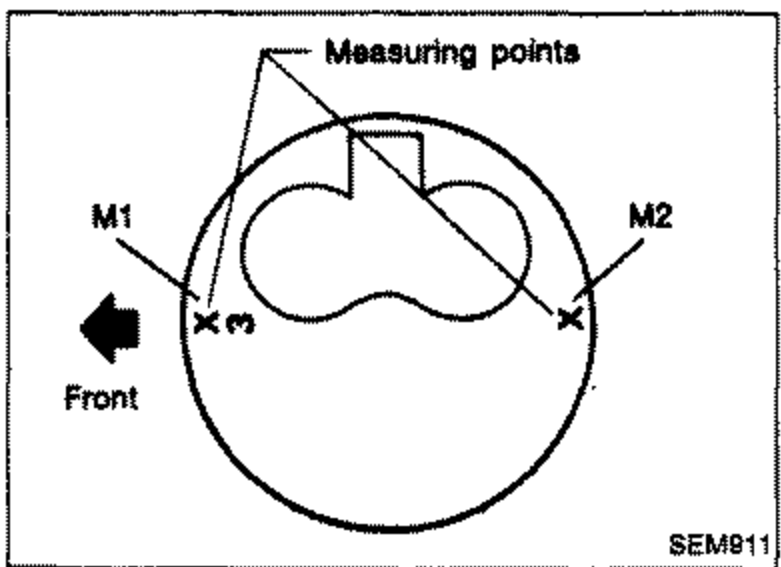

    Move dial gauge assembly until needle is set on the measuring point of piston.
    Top view of a piston crown showing two measuring points labeled M1 (left) and M2 (right) with X marks. 'Measuring points' label with leader at top. 'Front' arrow at bottom-left indicates orientation.
    SEM911
  4. 4
    Read scale.
  5. 5
    Reset dial gauge on cylinder block and confirm that scale indicates zero again.
