Nissan 100NX N14 silhouetteN14

Cylinder Block - Assembly (Cont'd)

EM-156prose procedure
Continued from EM-155

Assembly (Cont'd)

  1. 1

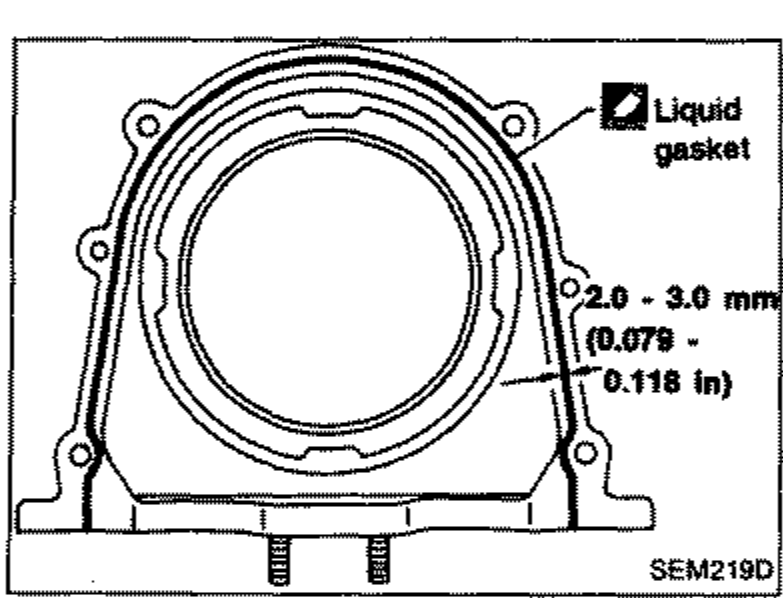

    (2) Apply a continuous bead of liquid gasket to mating surface of rear oil seal retainer.
    Use Genuine Liquid Gasket or equivalent.
    Bead width: 2.0 - 3.0 mm (0.079 - 0.118 in)
    Rear oil seal retainer with a continuous bead of liquid gasket applied to the mating surface. Labeled 'Liquid gasket' with the bead width spec '2.0 - 3.0 mm (0.079 - 0.118 in)'.
    SEM219D
Liquid gasket bead width (rear oil seal retainer)0.079 - 0.118 in
2.0 - 3.0mm
