Oil Pan - Removal / Installation

EM-159prose procedure

Removal

  1. 1
    Drain engine oil.
  2. 2
    Remove front exhaust tube.

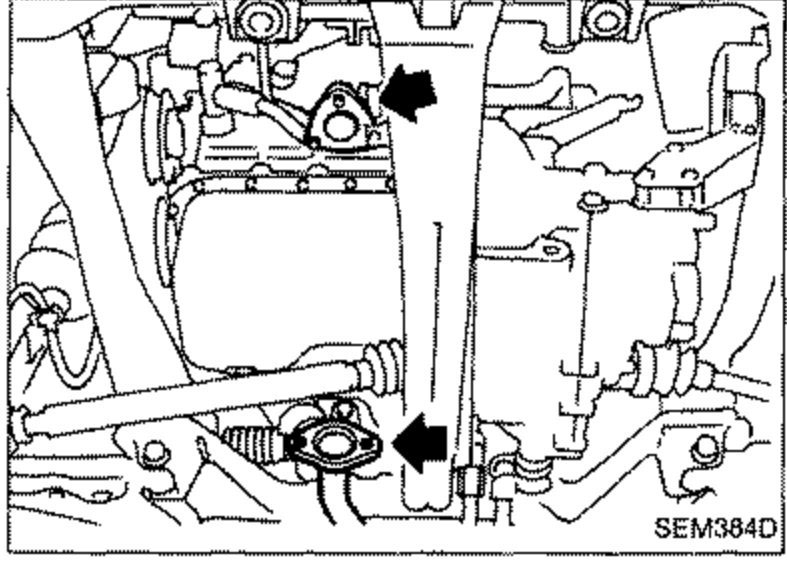

    Underside engine view showing front exhaust tube and engine gusset locations. Two solid arrows point to fasteners/locations to be removed.
    SEM384D
  3. 3
    Remove engine gussets.
  4. 4
    Remove oil pan.
    (1) Insert Tool between cylinder block and oil pan.
    Do not insert Tool into oil pump or rear oil seal retainer portion, or aluminum mating face will be damaged.
    Do not insert screwdriver, or oil pan flange will be deformed.
    (2) Slide seal cutter by tapping it with a hammer, and remove oil pan.

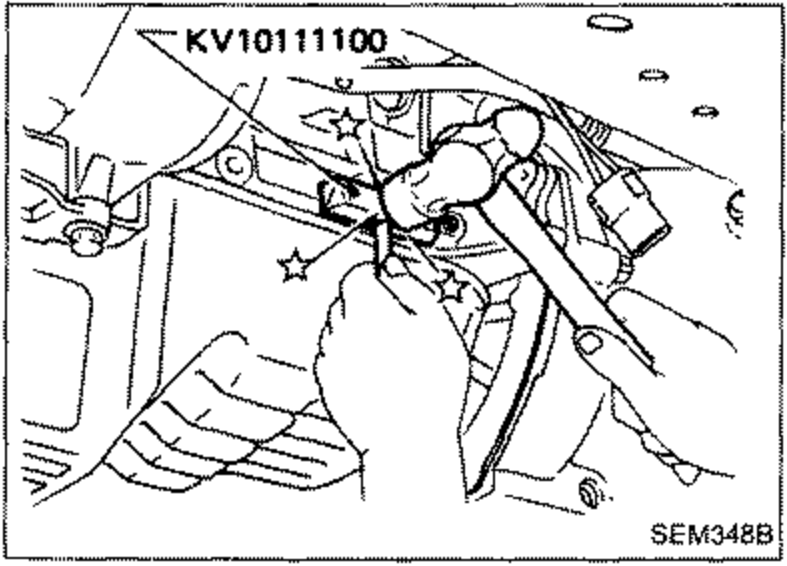

    Seal cutter tool (KV10111100) being inserted between the cylinder block and oil pan. Star symbols mark insertion points.
    SEM348B

Installation

  1. 1
    Before installing oil pan, remove all traces of liquid gasket from mating surface using a scraper.

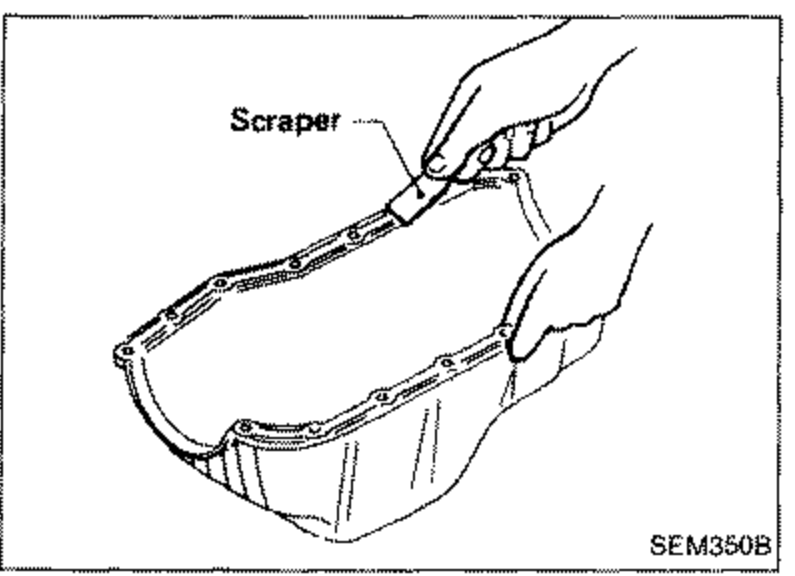

    A scraper being used to remove traces of liquid gasket from the oil pan mating surface. Labeled 'Scraper'.
    SEM350B
