OIL SEAL REPLACEMENT

EM-36prose procedure
Continued from EM-35

FRONT OIL SEAL (continued)

  1. 3
    Apply engine oil to new oil seal and install it using a suitable tool.

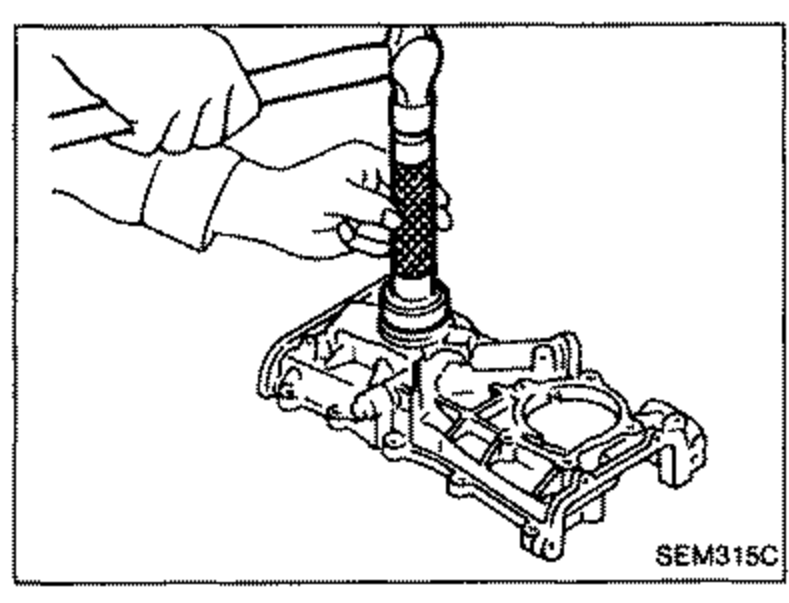

    Illustration of installing a new front oil seal into the front cover using a suitable tool/drift. A hand holds the tool positioned over the seal bore of the front cover.
    SEM315C

REAR OIL SEAL

  1. 1
    Remove flywheel.
  2. 2
    Remove rear oil seal retainer.
  3. 3
    Remove traces of liquid gasket using scraper.

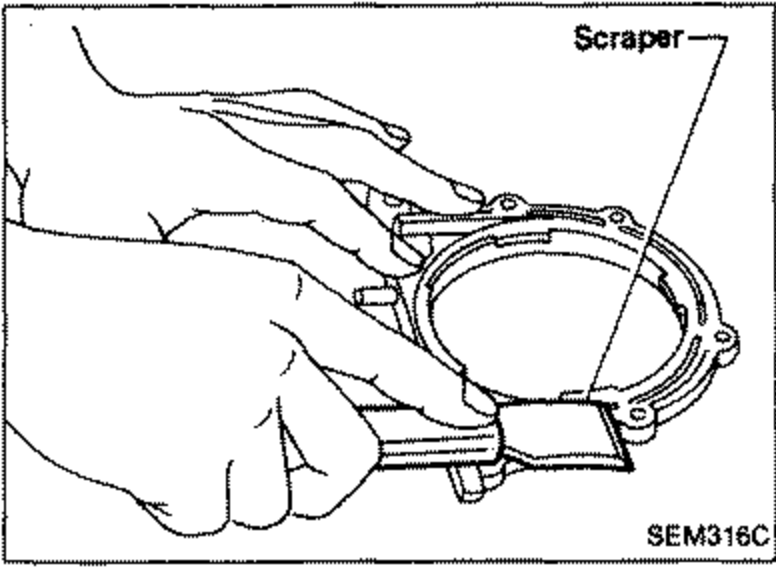

    Illustration of removing traces of liquid gasket from the rear oil seal retainer using a scraper. A hand holds the scraper against the circular rear seal area. Label 'Scraper' points to the tool.
    SEM316C
  4. 4
    Remove seal from rear oil seal retainer.

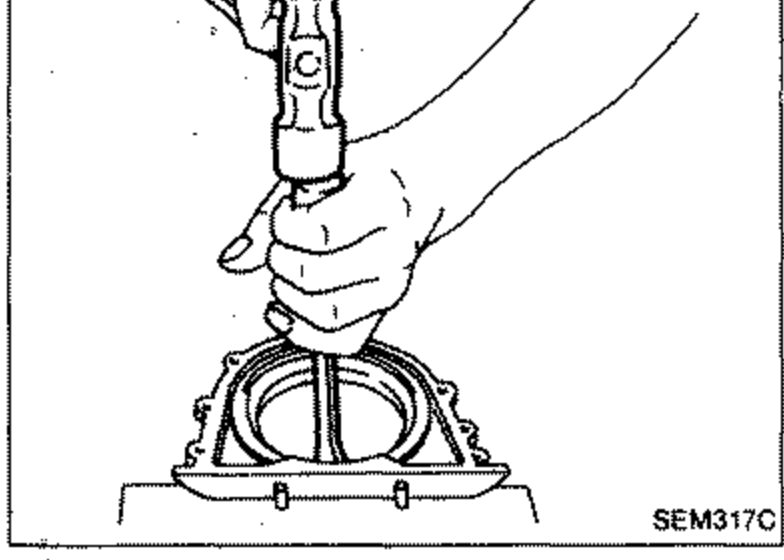

    Illustration of removing the seal from the rear oil seal retainer using a tool. A hand presses a tool down onto the retainer mounted on a fixture.
    SEM317C
  5. 5
    Apply engine oil to new oil seal and install it using a suitable tool.

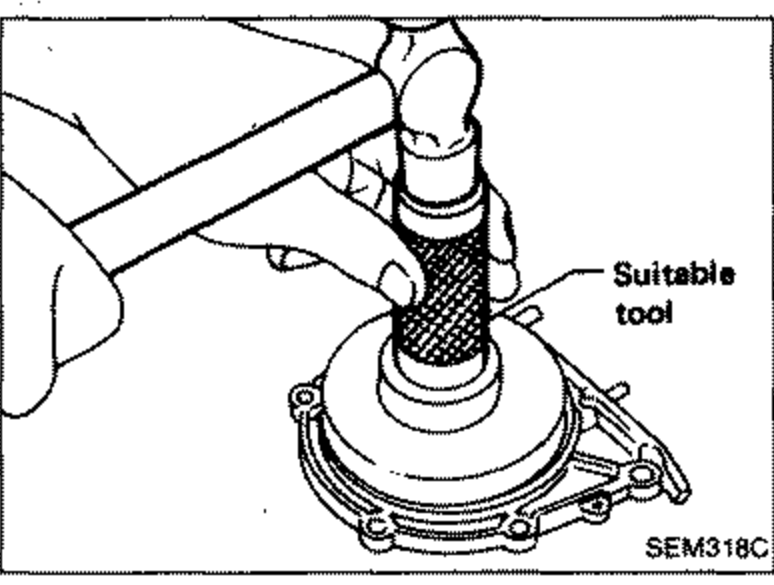

    Illustration of installing a new rear oil seal into the rear oil seal retainer using a suitable tool. A hand holds the drift tool over the seal. Label 'Suitable tool' points to the tool.
    SEM318C
  6. 6
    Apply liquid gasket to rear oil seal retainer.

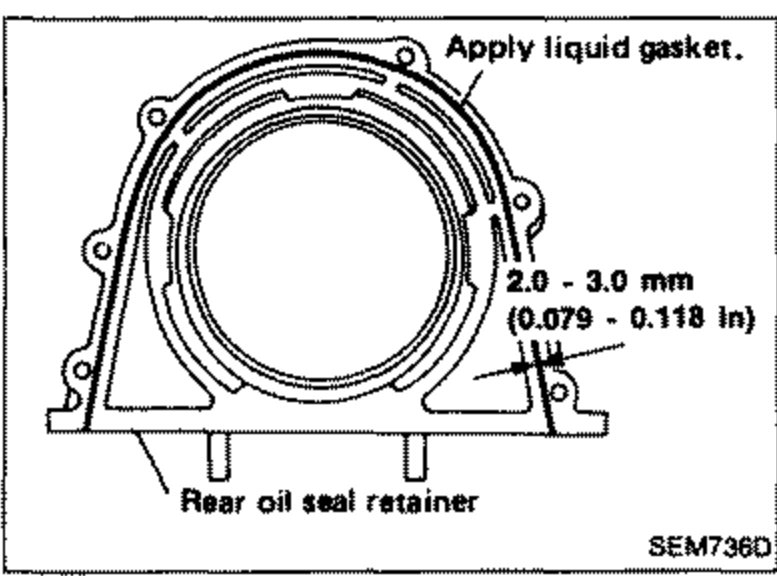

    Diagram of the rear oil seal retainer showing where to apply liquid gasket. An arrow labeled 'Apply liquid gasket.' points to the sealing surface. Bead width specified as 2.0 - 3.0 mm (0.079 - 0.118 in). Label 'Rear oil seal retainer' at the bottom.
    SEM736D
