Engine Removal

EM-184prose procedure

Several steps specify RH & LH (both sides): transverse link, tie-rod ball joint, and knuckle-to-strut bolts.

Continued from EM-183

Engine Removal (Cont'd)

  1. 7
    Disconnect transverse link (RH & LH) and tie-rod ball joint (RH & LH).

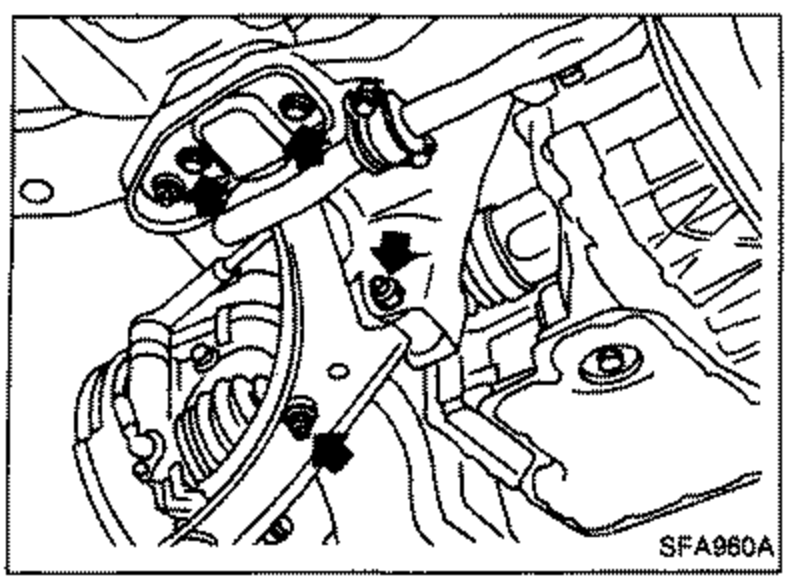

    Front suspension area showing the transverse link (lower control arm) and tie-rod ball joint to be disconnected (RH & LH), with arrows pointing to the ball joint fasteners.
    SFA960A
  2. 8
    Remove knuckle to strut bolts (RH & LH).

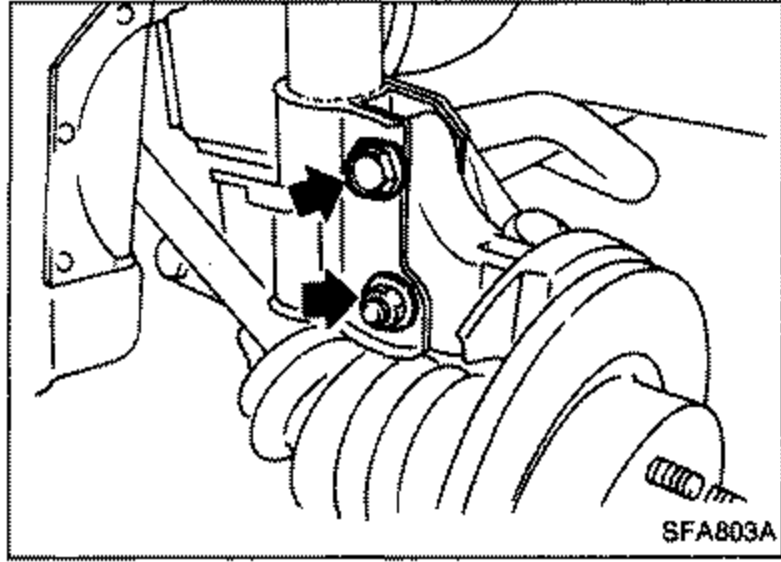

    Knuckle and strut assembly with arrows pointing to the knuckle-to-strut bolts to be removed (RH & LH).
    SFA803A
  3. 9
    Remove front exhaust tube.
  4. 10
    Set a suitable transmission jack under transaxle and engine. Hoist engine with engine slinger.

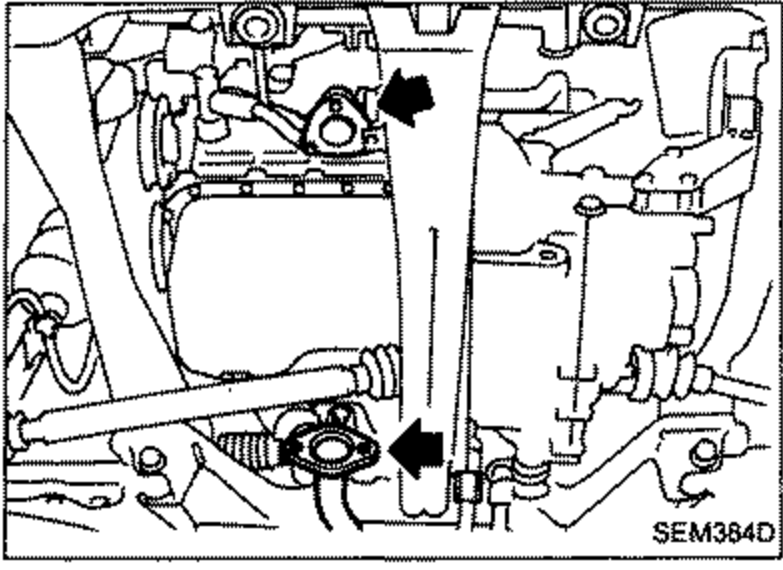

    Underside view of the transaxle/engine mounting member with arrows pointing to the front and right engine mounting bolts and center member.
    SEM384D
  5. 11
    Remove front and right engine mounting bolts and center member.
  6. 12
    Slowly lower transmission jack.
  7. 13

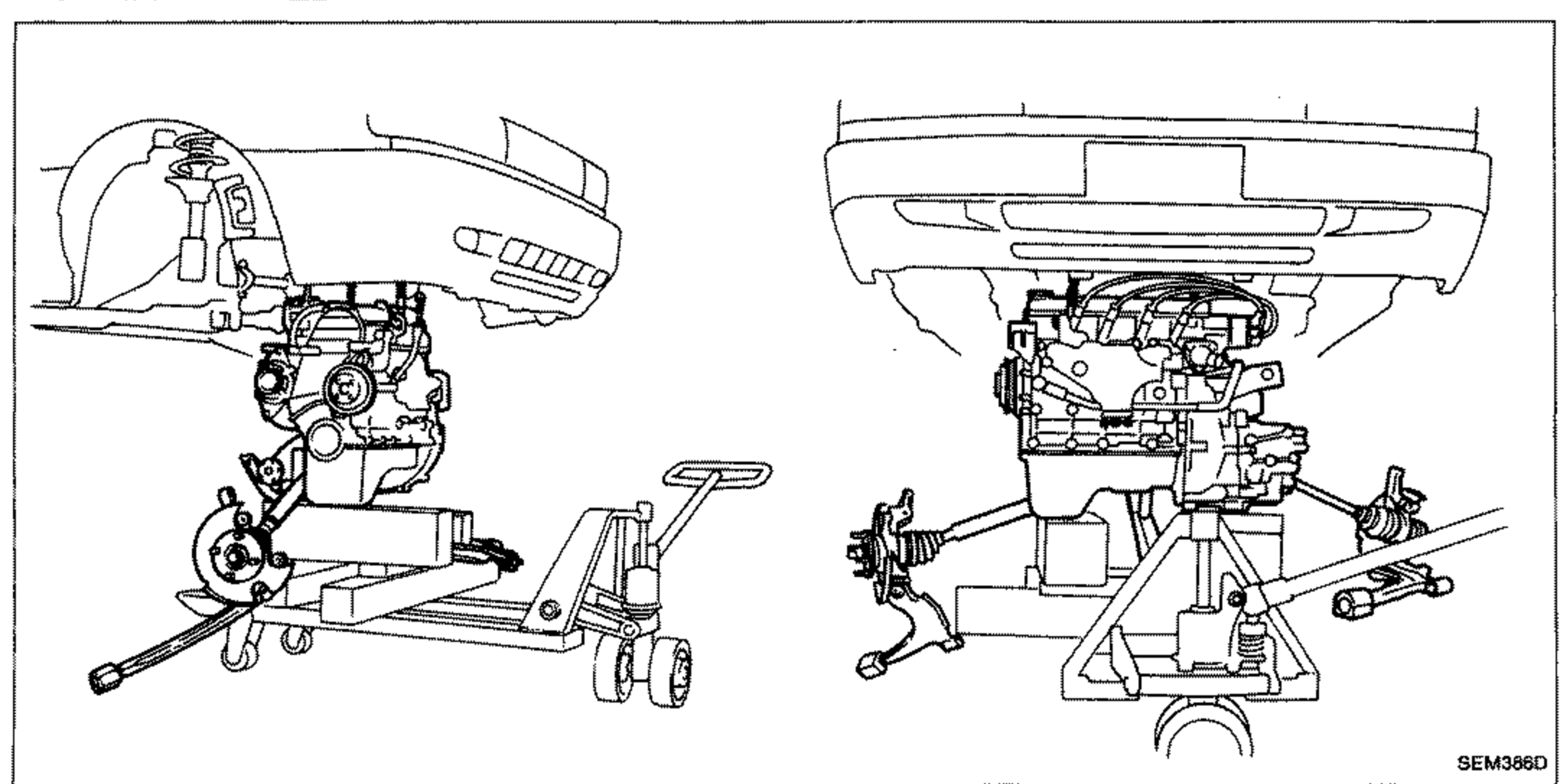

    Remove engine with transaxle as shown.
    Two views showing the engine with transaxle being lowered/removed from the vehicle onto a transmission jack, illustrating how to remove the engine with transaxle as shown.
    SEM386D
