Timing Chain - Installation (Cont'd)

EM-89prose procedure
Continued from EM-88

Installation (Cont'd)

  1. 4
    Before installing front cover, remove all traces of liquid gasket from mating surface using a scraper. Also remove traces of liquid gasket from mating surface of cylinder block.

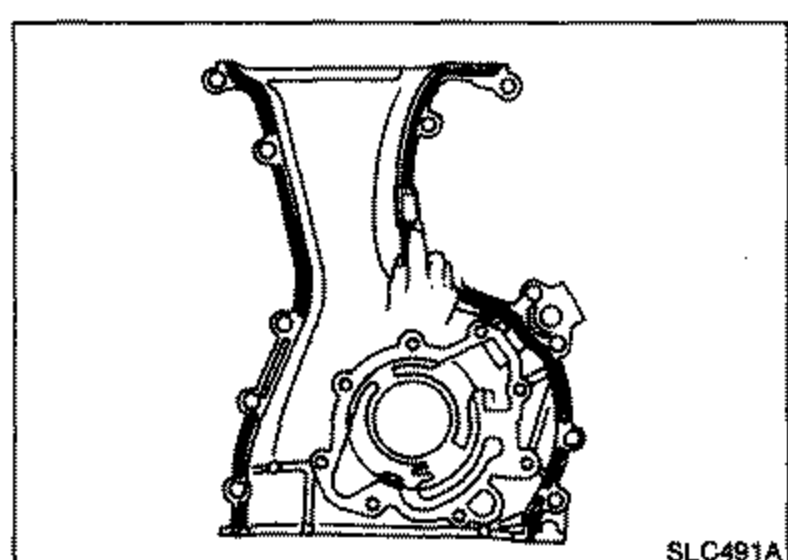

    Front cover mating surface, showing where to remove all traces of liquid gasket using a scraper.
    SLC491A
  2. 5
    Apply a continuous bead of liquid gasket to mating surface of front cover. Use Genuine Liquid Gasket or equivalent.
    Bead width 2.0 - 3.0 mm (0.079 - 0.118 in). Never apply liquid gasket to this groove.

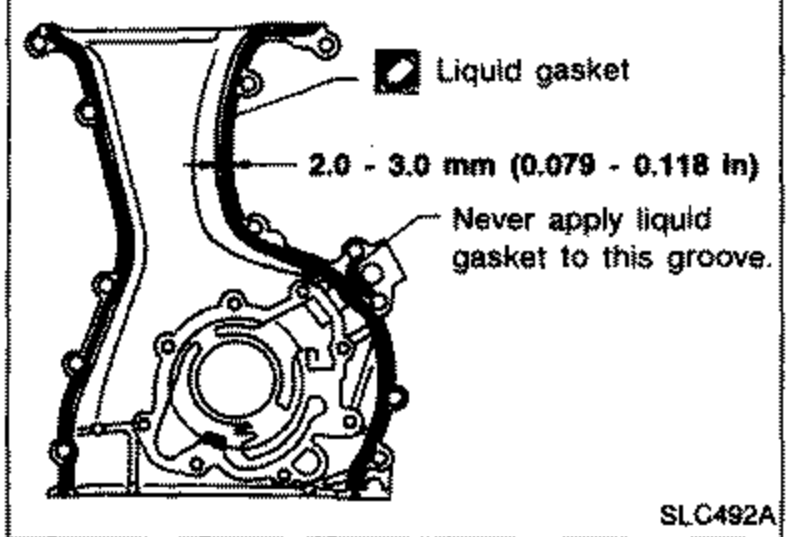

    Front cover with liquid gasket bead application diagram. Labels: 'Liquid gasket', dimension '2.0 - 3.0 mm (0.079 - 0.118 in)', and note 'Never apply liquid gasket to this groove.'
    SLC492A
  3. 6
    Install oil pump drive spacer and front cover. Wipe off excessive liquid gasket.

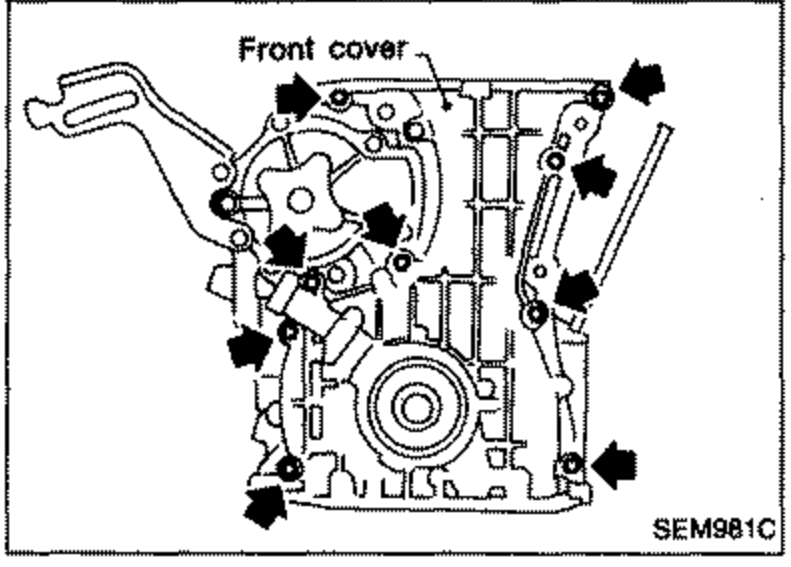

    Front cover installation with arrows pointing to bolt locations. Labelled callout 'Front cover'.
    SEM981C
