Valve Clearance - Adjusting (Cont'd)

EM-48prose procedure

Adjusting (Cont'd)

8

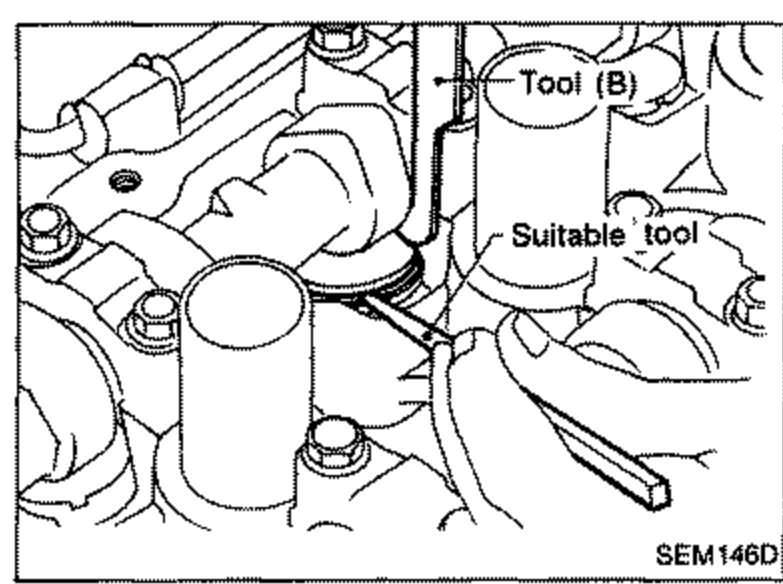

Install new shim using a suitable tool.
Install with the surface on which the thickness is stamped facing down.
SEM146D
9

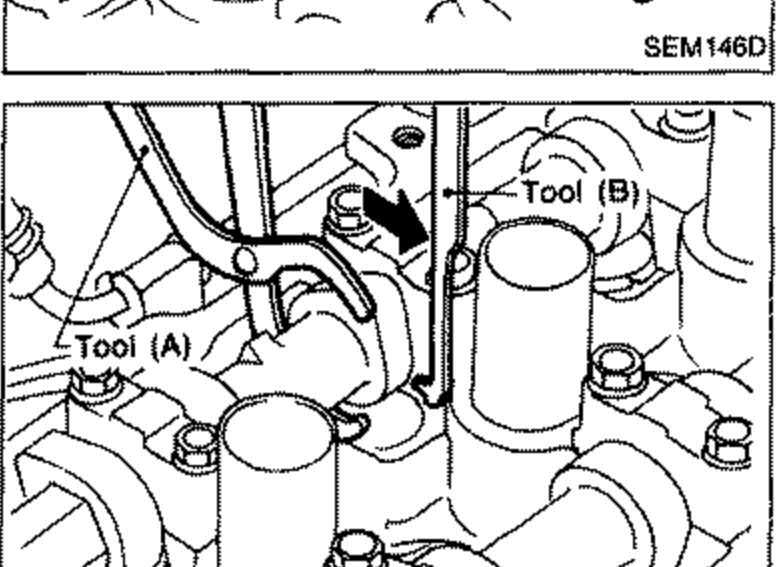

Place Tool (A) as mentioned in steps 2 and 3.
SEM147D
10
Remove Tool (B).
11
Remove Tool (A).
12
Recheck valve clearance.

Valve clearance

Valve	For adjusting - Hot	For adjusting - Cold*	For checking - Hot
Intake	0.32 - 0.40 (0.013 - 0.016)	0.25 - 0.33 (0.010 - 0.013)	0.21 - 0.49 (0.008 - 0.019)
Exhaust	0.37 - 0.45 (0.015 - 0.018)	0.32 - 0.40 (0.013 - 0.016)	0.30 - 0.58 (0.012 - 0.023)

Intake

For adjusting - Hot0.32 - 0.40 (0.013 - 0.016)

For adjusting - Cold*0.25 - 0.33 (0.010 - 0.013)

For checking - Hot0.21 - 0.49 (0.008 - 0.019)

Exhaust

For adjusting - Hot0.37 - 0.45 (0.015 - 0.018)

For adjusting - Cold*0.32 - 0.40 (0.013 - 0.016)

For checking - Hot0.30 - 0.58 (0.012 - 0.023)

NOTE

Unit: mm (in). *: At a temperature of approximately 20°C (68°F). Whenever valve clearance are adjusted to cold specifications, check that the clearances satisfy hot specifications and adjust again if necessary.
