Nissan 100NX N14 silhouetteN14

Oil Seal Replacement - Front Oil Seal / Rear Oil Seal

EM-100prose procedure

SR engine (SR20DE/SR20DET) per SR section header.

Continued from EM-99

Front Oil Seal (Cont'd)

  1. 3
    Apply engine oil to new oil seal and install it using a suitable tool.

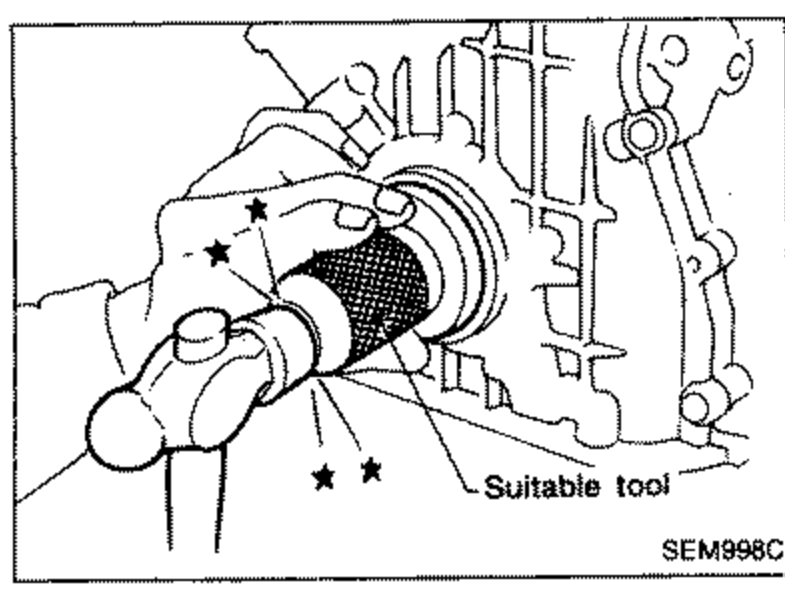

    Front cover area with a suitable tool installing a new front oil seal over the crankshaft. Two star symbols mark contact points. Label 'Suitable tool'.
    SEM998C

Rear Oil Seal

  1. 1
    Remove transaxle. (Refer to MT section.)
  2. 2
    Remove flywheel.
  3. 3
    Remove rear oil seal. Be careful not to scratch rear oil seal retainer.
    Be careful not to scratch rear oil seal retainer.

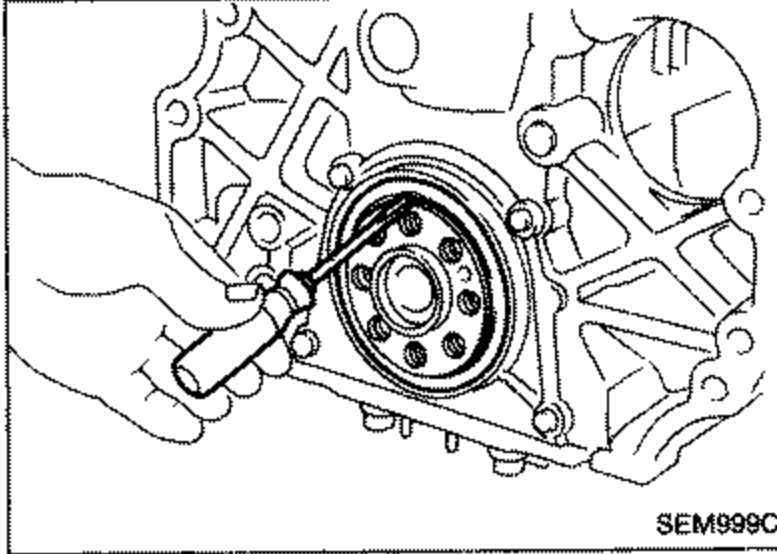

    Rear of engine / rear oil seal retainer area with the flywheel ring gear visible, illustrating removal of the rear oil seal from the retainer.
    SEM999C
  4. 4
    Apply engine oil to new oil seal and install it using a suitable tool.

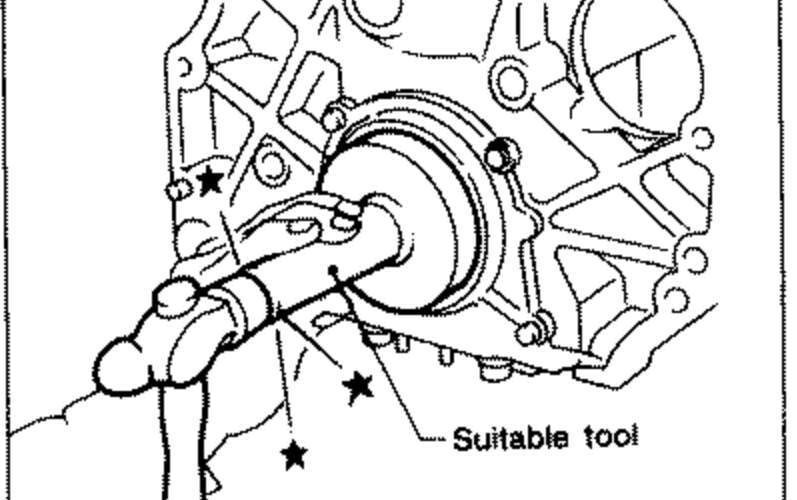

    Rear oil seal retainer with a suitable tool installing a new rear oil seal over the crankshaft. Star symbols mark contact points. Label 'Suitable tool'.
    SEM001D
