Engine Removal - Removal (Cont'd) / Installation

EM-140prose procedure

Step 17 distinguishes 2WD (engine with transaxle) and 4WD (engine with transaxle and transfer). 2WD mounting installed-height adjustment dimension given.

Continued from EM-139

Removal (Cont'd)

  1. 17
    2WD models: Remove engine with transaxle as shown. 4WD models: Remove engine with transaxle and transfer as shown.

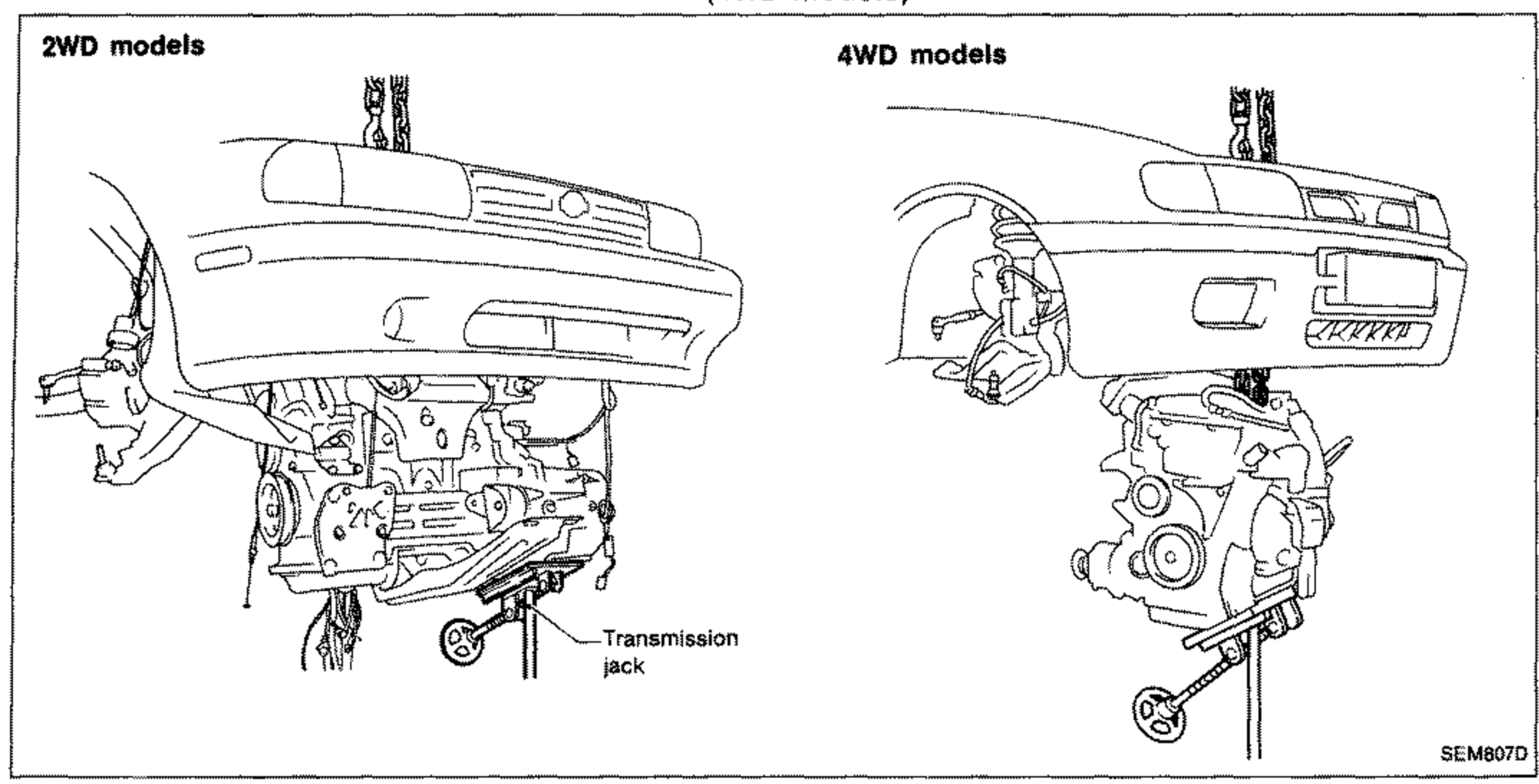

    Side-view line drawings of the vehicle with engine being lowered/removed. Left panel labelled '2WD models' shows engine with transaxle supported on a transmission jack; right panel labelled '4WD models' shows engine with transaxle and transfer being removed. Label points to 'Transmission jack'.
    SEM807D

Installation

  1. 1
    Install engine mounting bracket and fixing bolts.
    Be sure that insulators are correctly positioned on the brackets.

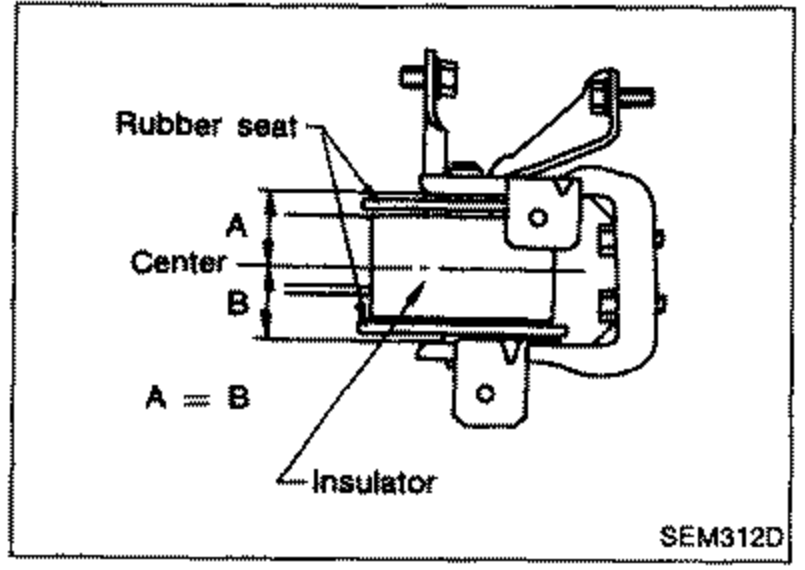

    Cross-section diagram of an engine mounting insulator showing the rubber seat and centering dimensions A and B with the requirement A = B. Labels point to 'Rubber seat', 'Center', 'A', 'B', 'Insulator'.
    SEM312D
  2. 2
    Carefully lower the engine onto engine mounting insulators.
  3. 3
    Installation is in the reverse order of removal.
    When installing the engine, adjust the height of the engine mounting as shown.

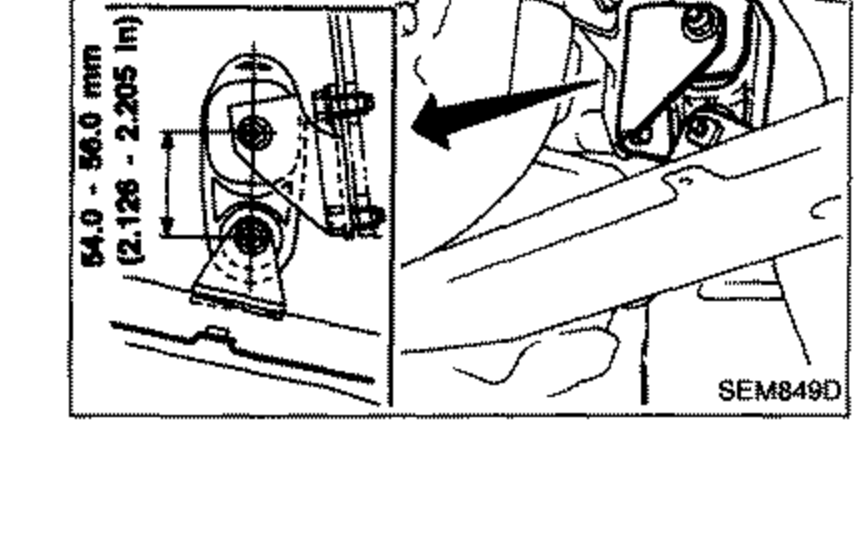

    2WD models view of the engine mounting showing the adjustment dimension with an arrow. Dimension reads 64.0 - 66.0 mm (2.520 - 2.598 in).
    SEM849D
Engine mounting installed height2WD
64.0 - 66.0mm (2.520 - 2.598 in)
