Timing Chain - Installation (Cont'd)

EM-34prose procedure

Step 28 (apply liquid gasket to rocker cover and cylinder head) shown here is for GA16DE. Rocker cover bolt tightening sequence differs between GA16DE and other engines (SEM412D).

Continued from EM-33

Installation (Cont'd)

  1. 28
    Apply liquid gasket to rocker cover and cylinder head (GA16DE).

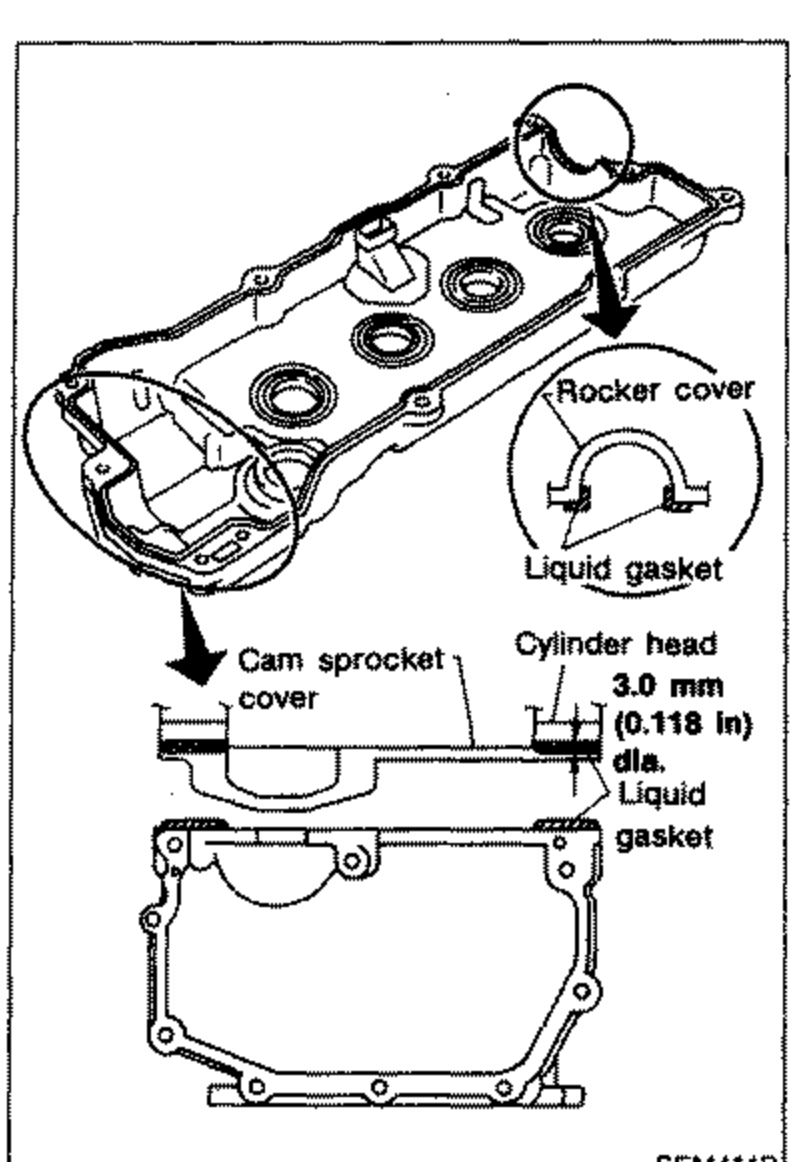

    Rocker cover installation diagram for GA16DE. Shows liquid gasket applied to the rocker cover and cylinder head, including the cam sprocket cover area with a 3.0 mm (0.118 in) dia. liquid gasket bead.
    SEM411D
  2. 29
    Install rocker cover.

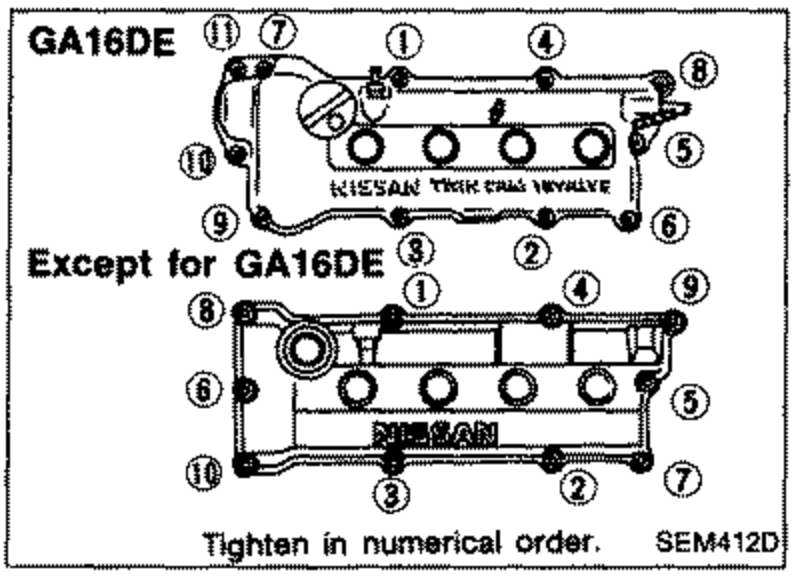

    Rocker cover bolt tightening sequence diagrams for GA16DE (bolts 1-11) and Except for GA16DE (bolts 1-10). Caption: 'Tighten in numerical order.'
    SEM412D
  3. 30
    Install all spark plugs.
  4. 31
    Install engine front mounting bracket.
  5. 32
    Install front exhaust tube.
  6. 33
    Install front undercover.
  7. 34
    Install front right splash cover.
  8. 35
    Install front right wheel.
  9. 36
    Install air cleaner.
  10. 37
    Install power steering pump bracket.
  11. 38
    Install the following belts: Alternator drive belt; Power steering pump drive belt; Air conditioner compressor drive belt.
