Cylinder Head - Inspection / Assembly

EM-120prose procedure

Continued from EM-119

Inspection (Cont'd)

Hydraulic Lash Adjuster (Cont'd)

3
Check lash adjuster guide inner diameter. Inner diameter: 17.000 - 17.020 mm (0.6693 - 0.6701 in). Standard clearance between lash adjuster and adjuster guide: 0.007 - 0.040 mm (0.0003 - 0.0016 in)

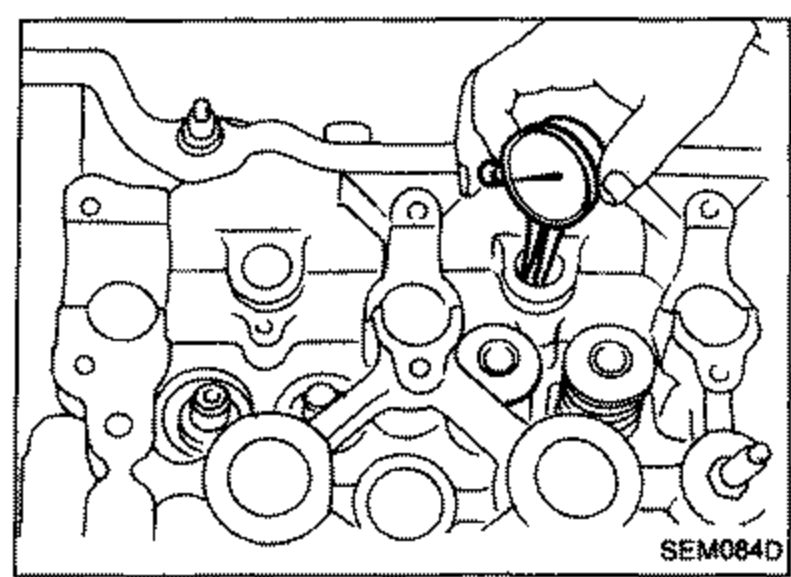

SEM084D

ROCKER ARM, SHIM AND ROCKER ARM GUIDE

Check contact and sliding surfaces of rocker arms, shims and rocker arm guides for wear or scratches.

Assembly

1
Install water connector.
(1) Before installing water connector, remove all traces of liquid gasket from mating surface using a scraper. Also remove traces of liquid gasket from mating surface of cylinder head.
(2) Apply a continuous bead of liquid gasket to mating surface of water connector.
Use Genuine Liquid Gasket or equivalent.

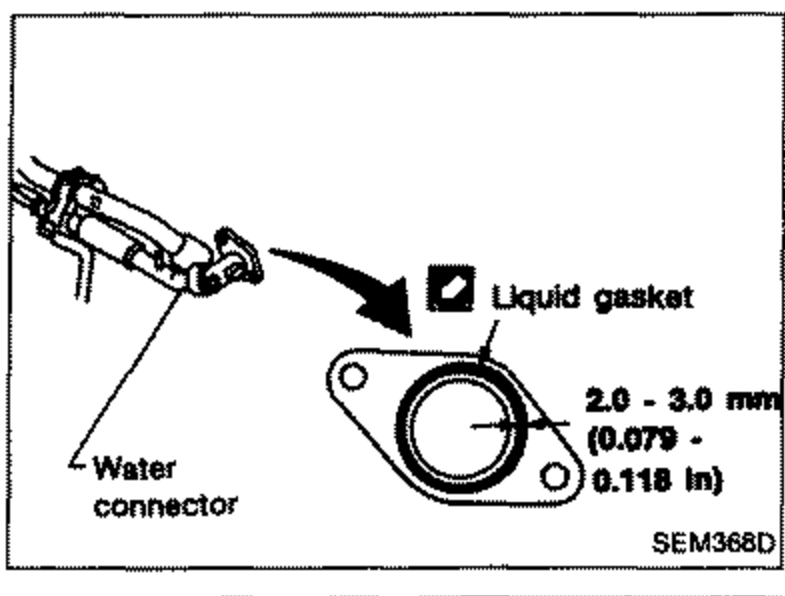

SEM368D
2
Install thermostat housing with water pipe.
Tightening procedure:
(1) Tighten thermostat housing bolt (A) to 2 - 5 N-m (0.2 - 0.5 kg-m, 1.4 - 3.6 ft-lb).
(2) Tighten water pipe bolt (C) to 16 - 21 N-m (1.6 - 2.1 kg-m, 12 - 15 ft-lb).
(3) Tighten thermostat housing bolt (A) to 16 - 21 N-m (1.6 - 2.1 kg-m, 12 - 15 ft-lb).
(4) Tighten thermostat housing bolt (B) to 16 - 21 N-m (1.6 - 2.1 kg-m, 12 - 15 ft-lb).
Perform steps (2) through (4) after installing cylinder head on cylinder block.

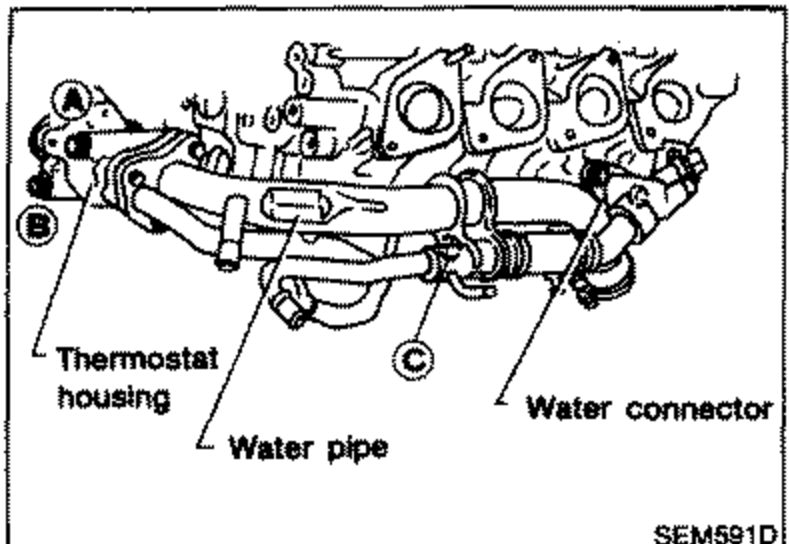

SEM591D
