ENGINE REMOVAL

EM-235prose procedure

Page header marks this as CD engine section.

Continued from EM-234

Engine Removal (continued)

  1. 21

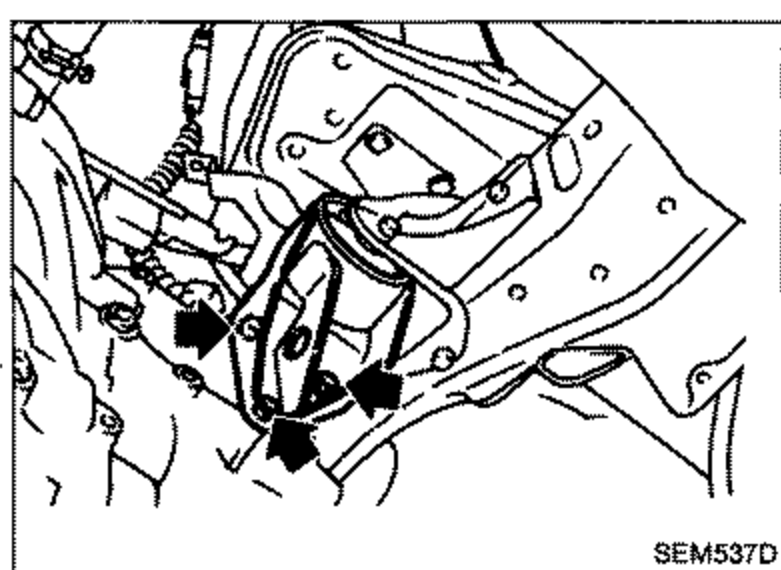

    Release lower left engine mounting.
    Illustration of the lower left engine mounting area viewed from below/front. Solid black arrows point to the mounting bracket bolt locations to be released. Bracket and surrounding chassis members are visible.
    SEM537D
  2. 22
    Remove center member from chassis.
    Illustration of the center member (front cross member) attached to the chassis. Four solid black arrows point to the center member fastening locations to be removed. Engine underside and transaxle visible above.
    SEM538D
  3. 23

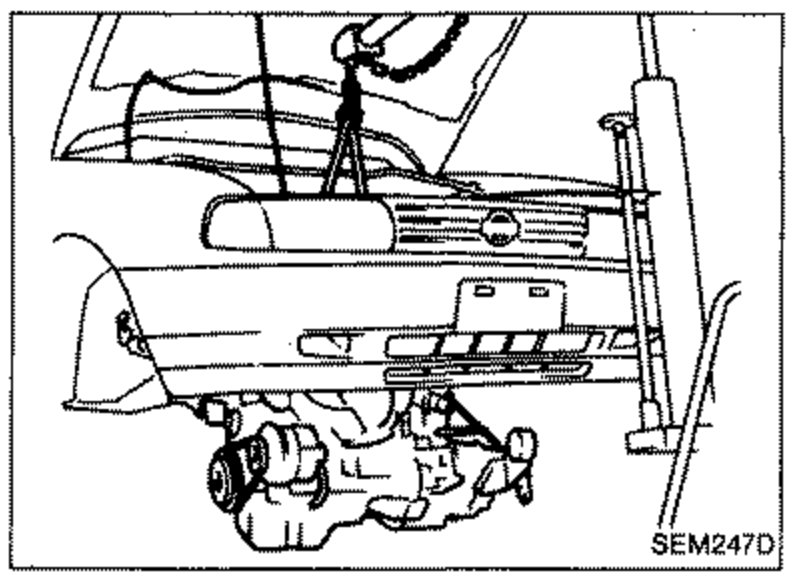

    Remove engine with transaxle as shown.
    Illustration of the engine with transaxle being lifted out of the engine bay using lifting equipment/chains attached overhead. Shows the engine assembly suspended above the front of the vehicle.
    SEM247D
