Turbocharger - Inspection (Cont'd)

EM-133prose procedure

SR20DET (turbocharged) engine only.

Continued from EM-132

Inspection (Cont'd)

Check for leaks at the wastegate valve actuator, compressor housing, center housing, turbine housing and rotor shaft as indicated in the figure.

OIL AND WATER TUBES

Check tubes for clogging.

Rotor Shaft

  1. 1

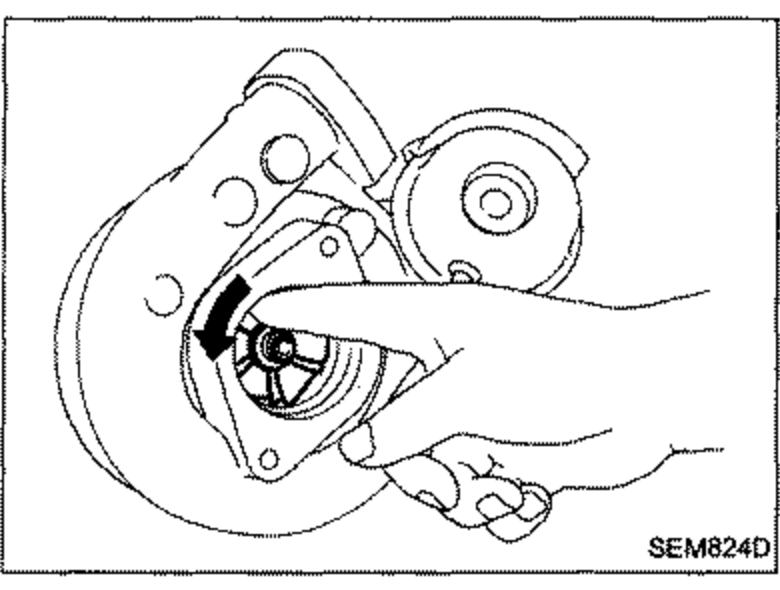

    Check rotor shaft for smooth rotation.
    Hand checking the rotor shaft for smooth rotation, with an arrow indicating the rotation direction.
    SEM824D
  2. 2

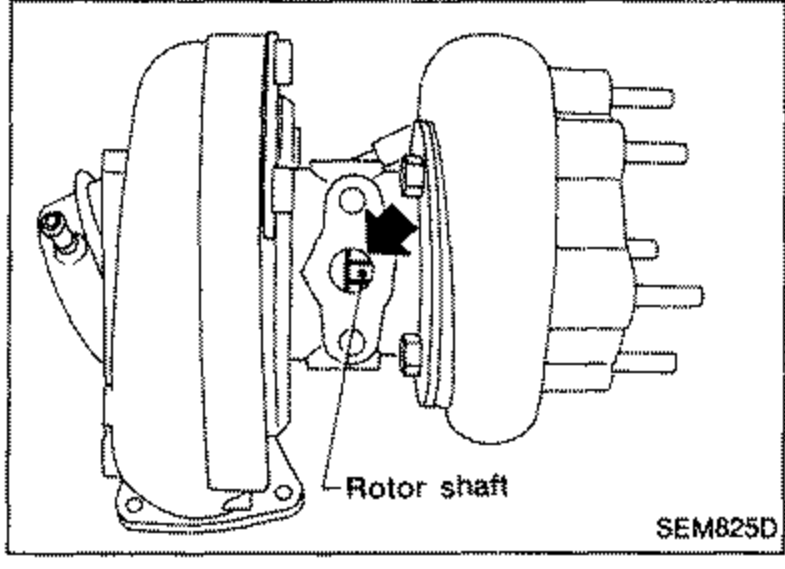

    Check rotor shaft for carbon deposits.
    Turbocharger showing the rotor shaft to be checked for carbon deposits, with an arrow pointing to the rotor shaft. Labeled 'Rotor shaft'.
    SEM825D
