Timing Chain - Installation (Cont'd)

EM-33prose procedure

Step 28 (apply liquid gasket to rocker cover) shown here is for engines Except for GA16DE.

Continued from EM-32

Installation (Cont'd)

  1. 27
    (2) Install rubber plugs, then move them with your fingers to uniformly spread the gasket on cylinder head surface.
    Rubber plugs should be installed flush with the surface.
    Do not start engine for 30 minutes after installing rocker cover.

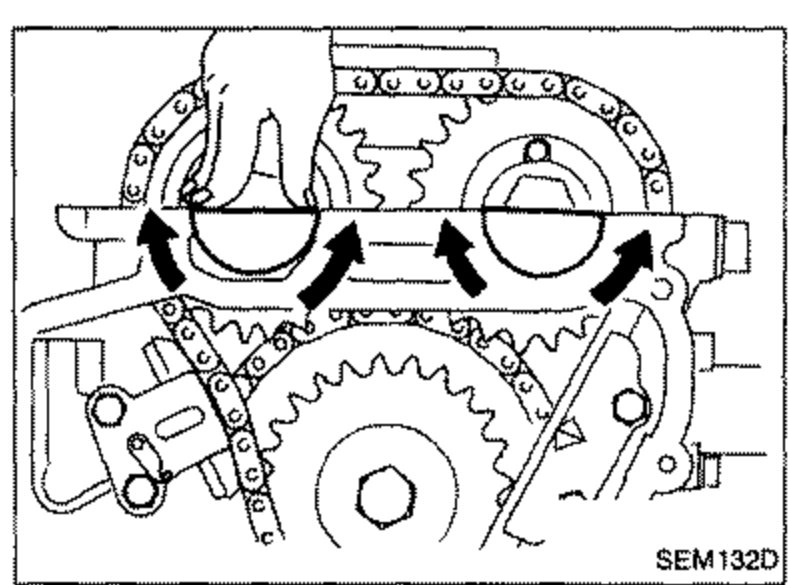

    Photo of the cylinder head front showing the rubber plug locations with arrows indicating where rubber plugs are installed and gasket is spread.
    SEM132D
  2. 28
    Apply liquid gasket to rocker cover (Except for GA16DE).

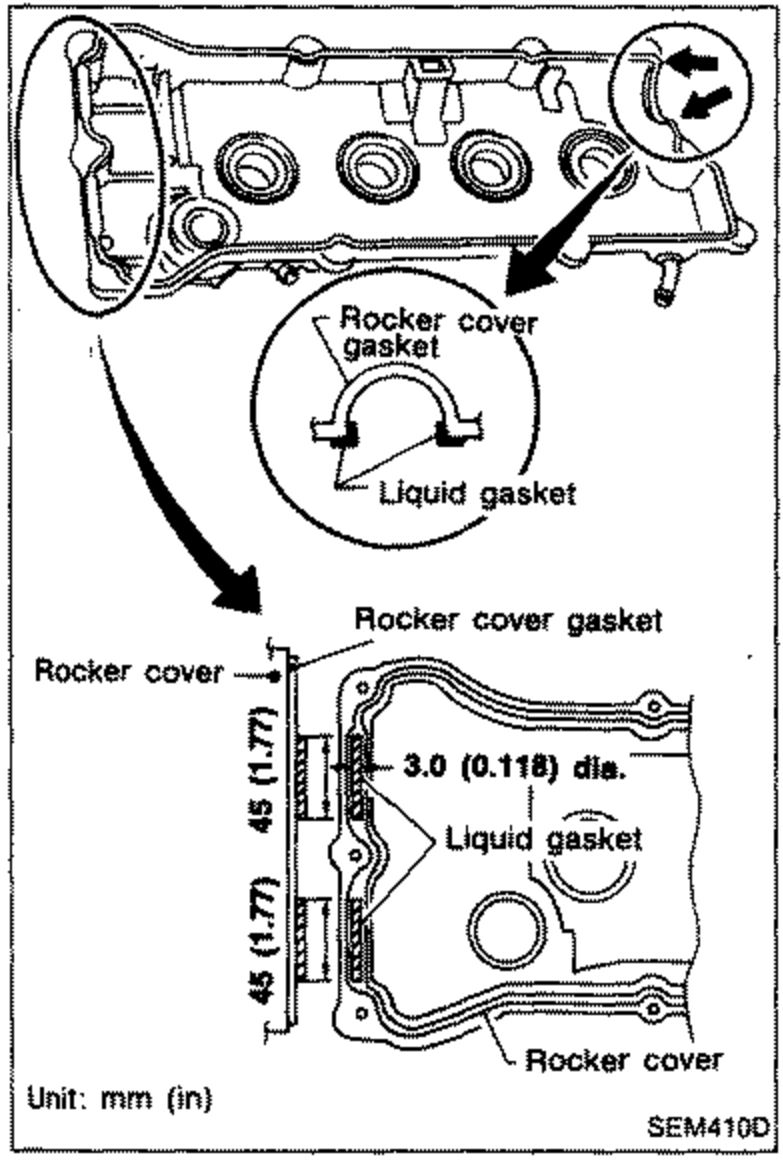

    Rocker cover installation diagram for engines except GA16DE. Shows the rocker cover gasket layout with liquid gasket applied at corners; a 3.0 mm (0.118 in) dia. bead and 45 mm (1.77 in) spacing dimensions are marked. Unit: mm (in).
    SEM410D
