Cylinder Block - Inspection (Cont'd) / Assembly

EM-152prose procedure
Continued from EM-151

Inspection (Cont'd)

Connecting Rod Bushing Clearance (Cont'd)

  1. 2
    Measure outer diameter "Dp" of piston pin.

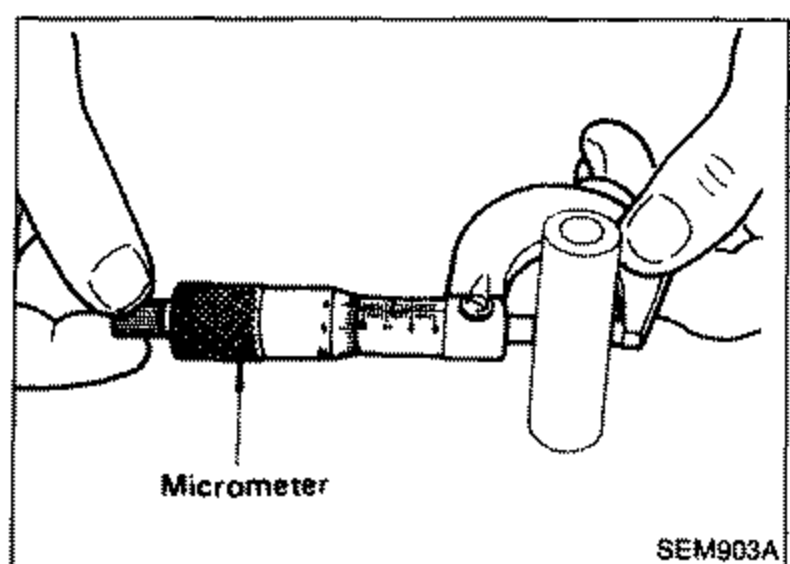

    Illustration of measuring the outer diameter 'Dp' of a piston pin with a micrometer. Callout: 'Micrometer'.
    SEM903A
  2. 3
    Calculate connecting rod bushing clearance. Connecting rod bushing clearance = C - Dp
    Standard: 0.005 - 0.017 mm (0.0002 - 0.0007 in)
    Limit: 0.023 mm (0.0009 in)
    If it exceeds the limit, replace connecting rod assembly or connecting rod bushing and/or piston set with pin.

Replacement of Connecting Rod Bushing (Small end)

  1. 1
    Drive in small end bushing until it is flush with end surface of rod.
    Be sure to align the oil holes.

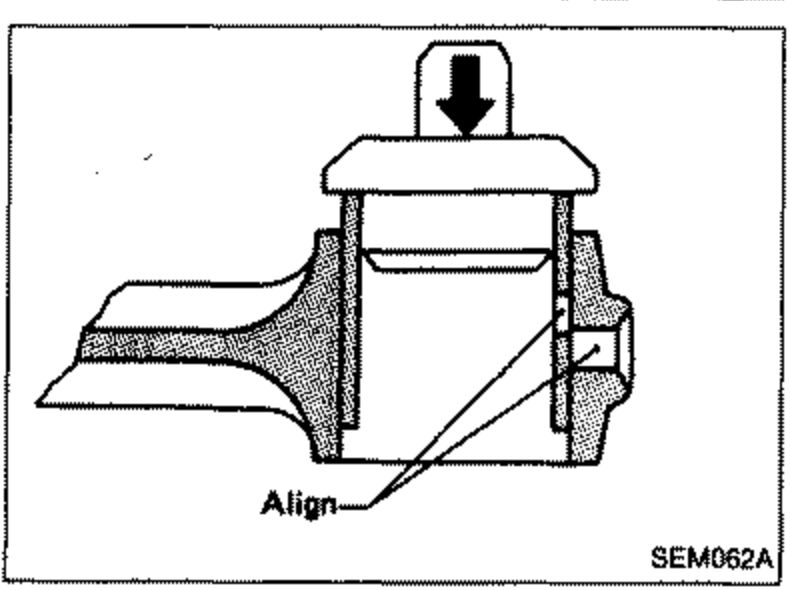

    Illustration of driving a small-end bushing into the connecting rod with a press tool until flush, with an arrow indicating press direction. Callout: 'Align' indicating oil hole alignment.
    SEM062A
  2. 2
    After driving in small end bushing, ream the bushing so that clearance between connecting rod bushing and piston pin is the specified value.
    Clearance between connecting rod bushing and piston pin: 0.005 - 0.017 mm (0.0002 - 0.0007 in)

FLYWHEEL RUNOUT

Runout (Total indicator reading)
Less than 0.10mm (0.0039 in)

Assembly

  1. 1
    Install timing chain oil jet.
    Drive oil jet into cylinder block with punchmark facing up.

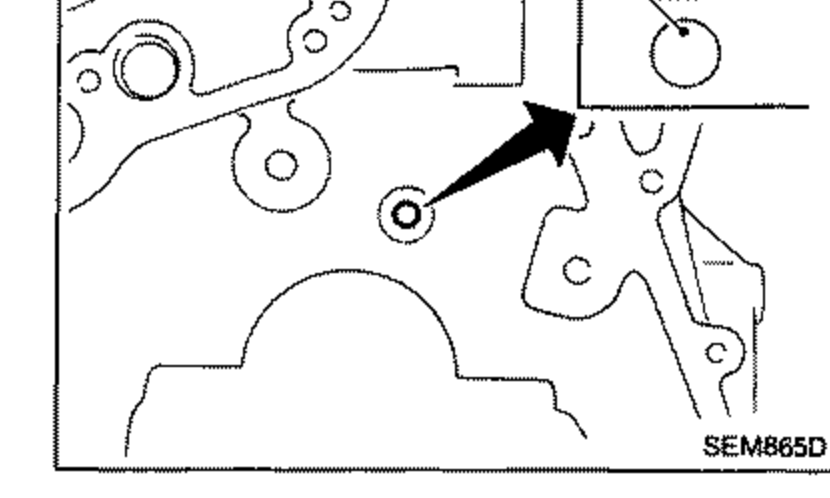

    View of the cylinder block showing installation of the timing chain oil jet, with an arrow and callout 'Punch-mark' indicating the oil jet should be driven in with the punchmark facing up.
    SEM865D
