Turbocharger - Removal (Cont'd) / Disassembly

EM-131prose procedure

SR20DET (turbocharged) engine only.

Continued from EM-130

Removal (Cont'd)

  1. 13
    Remove exhaust outlet cover.

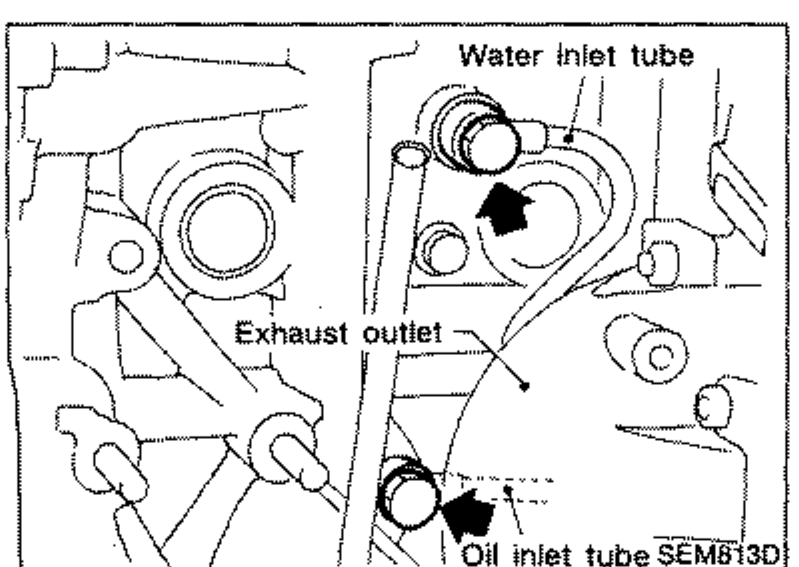

    Engine view showing the exhaust outlet cover, water inlet tube and oil inlet tube to be removed, with bold arrows pointing to fasteners. Labeled 'Water inlet tube', 'Exhaust outlet', 'Oil inlet tube'.
    SEM813D
  2. 14
    Remove water inlet tube and oil inlet tube.
  3. 15
    Remove oil return hose.

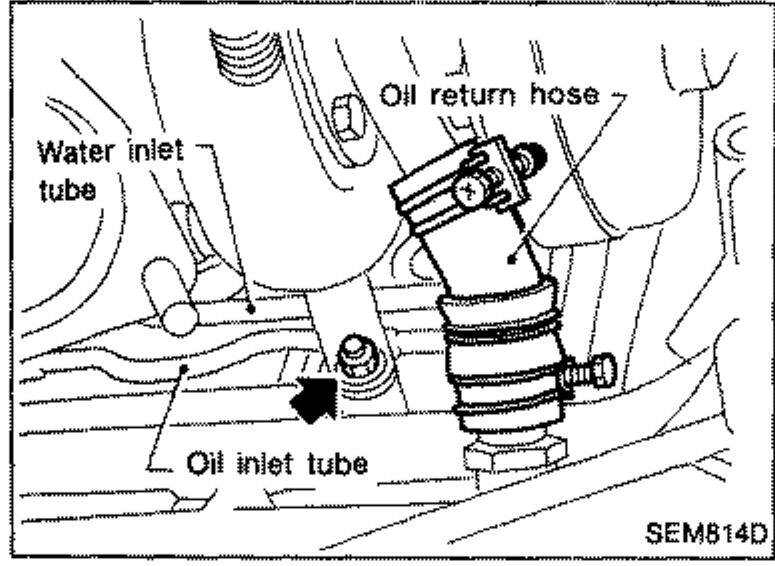

    Detail of the oil return hose, water inlet tube and oil inlet tube and the nut fixing both tubes. Labeled 'Oil return hose', 'Water inlet tube', 'Oil inlet tube'.
    SEM814D
  4. 16
    Remove nut fixing both water inlet tube and oil inlet tube.
  5. 17
    Remove exhaust manifold cover.

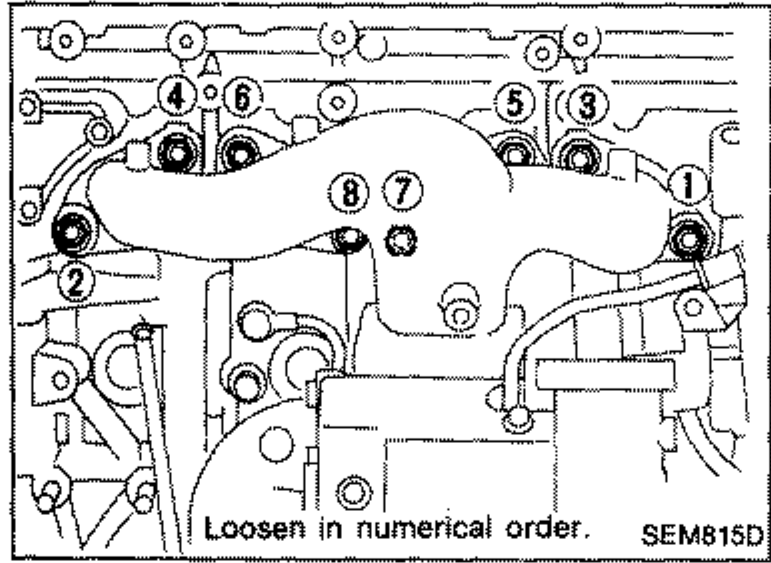

    Exhaust manifold cover and fixing nuts with numbered loosening sequence (callouts 1 through 9 and 8, 7). Labeled 'Loosen in numerical order.'
    SEM815D
  6. 18
    Remove exhaust manifold fixing nuts.
    Loosen in numerical order.
  7. 19
    Remove exhaust manifold with turbocharger unit.

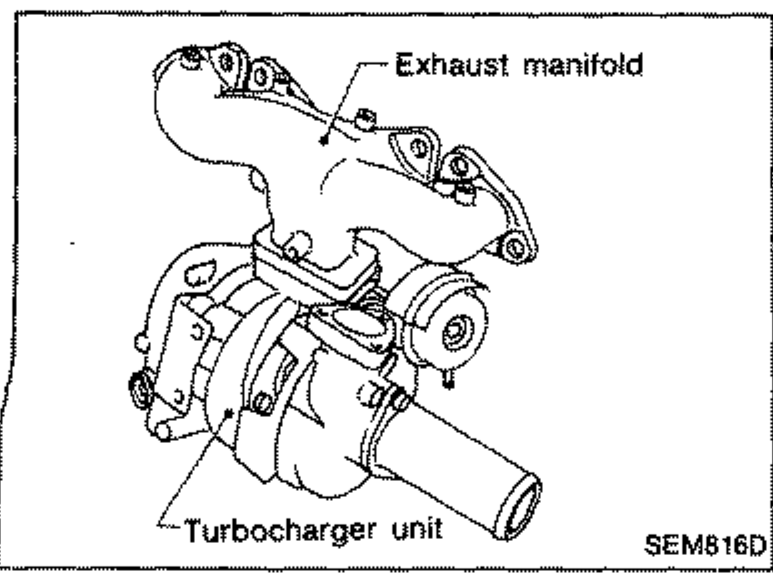

    View of the exhaust manifold with the turbocharger unit attached, to be removed together. Labeled 'Exhaust manifold', 'Turbocharger unit'.
    SEM816D

Disassembly

  1. 1
    Unbend locking plates for turbocharger unit fastening nuts.

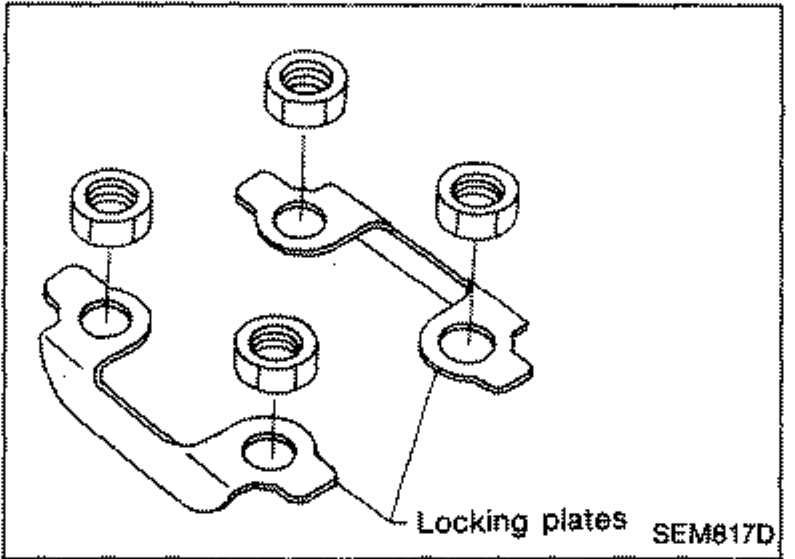

    Locking plates for the turbocharger unit fastening nuts being unbent. Labeled 'Locking plates'.
    SEM817D
