OIL PAN

EM-78prose procedure

Liquid gasket application path differs between 2WD models and 4WD models.

Continued from EM-77

Removal (Cont'd)

  1. 15

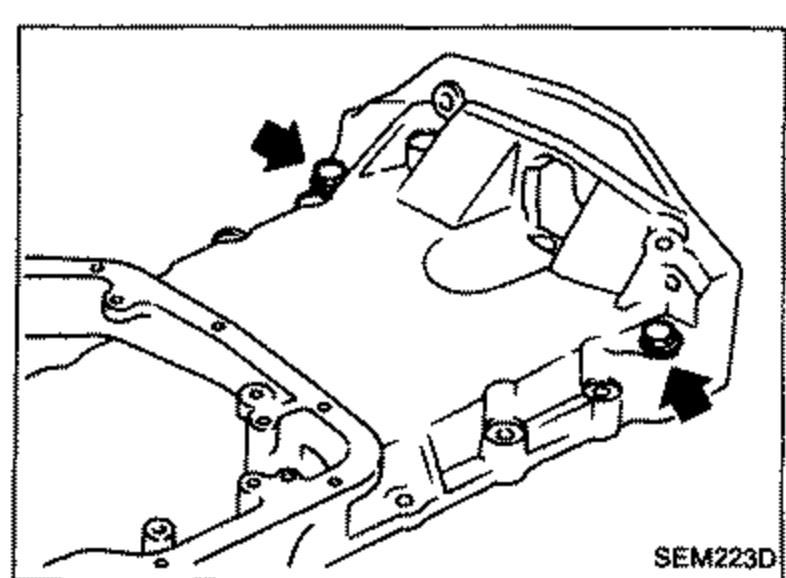

    Remove the two engine to transaxle bolts previously installed in aluminum oil pan.
    Aluminum oil pan with the two engine-to-transaxle bolts (previously installed for separation) being removed; arrows point to the bolt locations.
    SEM223D

Installation

  1. 1
    Install aluminum oil pan.
    Use Genuine Liquid Gasket or equivalent.
    For areas marked with "*", apply liquid gasket to the outer side of the bolt hole.
    1. (1)

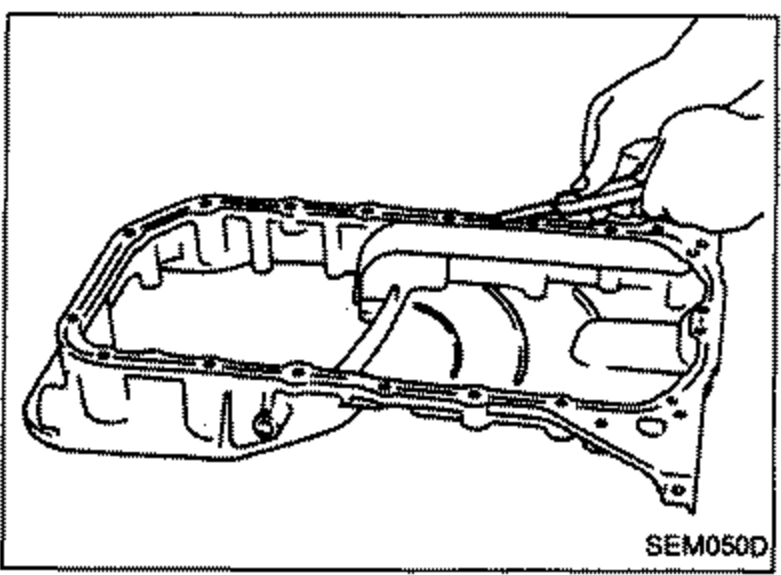

      Before installing aluminum oil pan, remove all traces of liquid gasket from mating surfaces using a scraper. Also remove traces of liquid gasket from mating surface of cylinder block and front cover.
      Removing traces of old liquid gasket from the aluminum oil pan mating surface using a scraper.
      SEM050D
    2. (2)

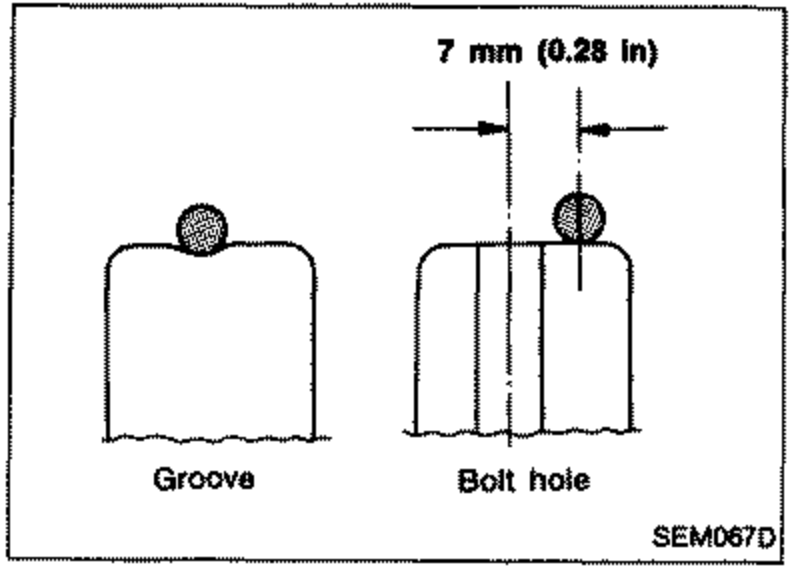

      Apply a continuous bead of liquid gasket to mating surface of aluminum oil pan.
      Cross-section detail showing how to apply a 7 mm (0.28 in) bead of liquid gasket at a groove and around a bolt hole. Labeled 'Groove' and 'Bolt hole'.
      SEM067D
Liquid gasket bead diameter (groove/bolt hole detail)aluminum oil pan
7mm (0.28 in)
Liquid gasket bead width2WD and 4WD models
4.0 - 5.0mm (0.157 - 0.197 in)
