Nissan 100NX N14 silhouetteN14

Timing Belt - Removal (Cont'd)

EM-163prose procedure
Continued from EM-162

Removal (Cont'd)

  1. 3

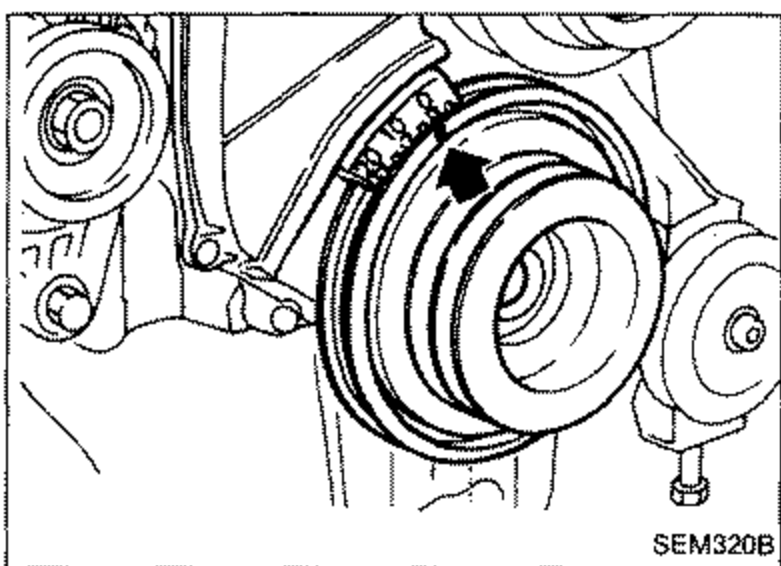

    Set No. 1 cylinder at top dead center (T.D.C.) on its compression stroke.
    Crankshaft pulley area showing setting No. 1 cylinder at top dead center (T.D.C.) on its compression stroke by aligning timing marks.
    SEM320B
  2. 4

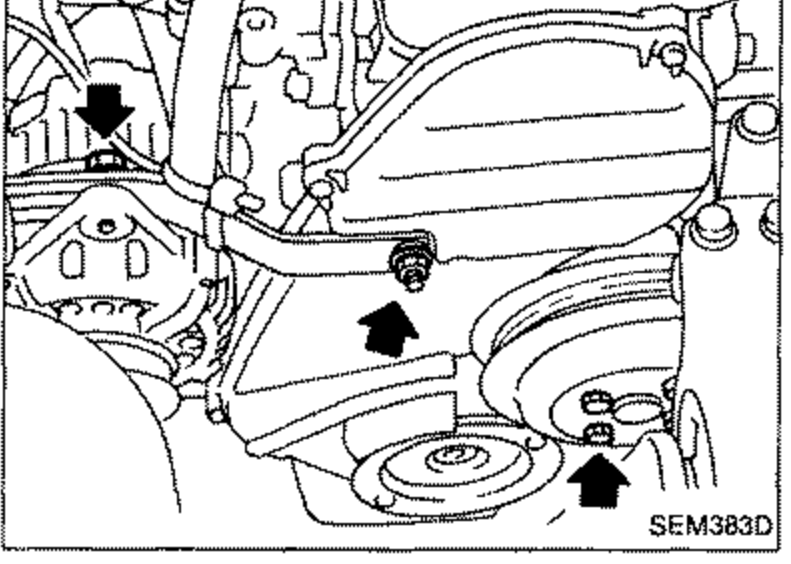

    Remove the following parts.
    Alternator adjusting bar
    Water pump pulley
    Crankshaft pulley
    Front of engine showing alternator adjusting bar, water pump pulley and crankshaft pulley to be removed. Solid arrows point to the fasteners/parts.
    SEM383D
  3. 5

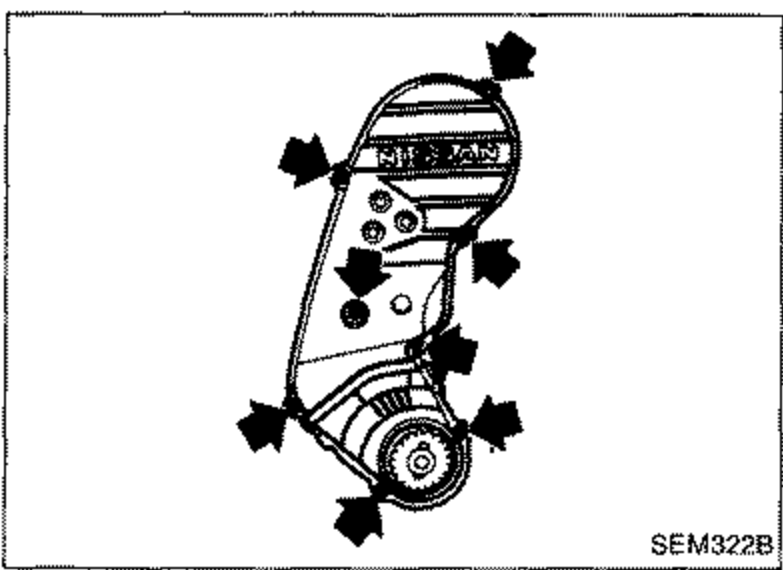

    Remove upper and lower dust covers. Use a torx wrench.
    Upper and lower dust covers being removed using a torx wrench. Solid arrows mark the torx fastener locations.
    SEM322B
  4. 6

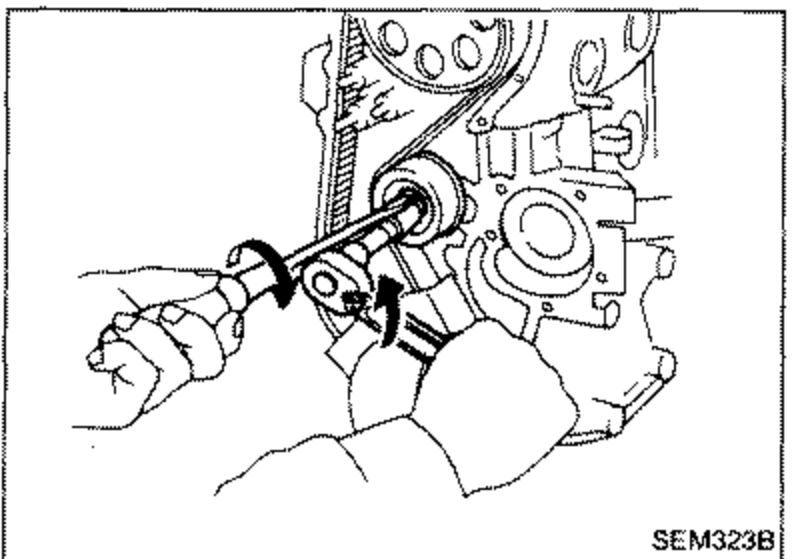

    Loosen timing belt tension lock nut and rotate tension clockwise. Then tighten tensioner lock nut.
    Mark rotating direction mark on timing belt.
    Loosening the timing belt tension lock nut and rotating tension; wrench engaging the tensioner.
    SEM323B
  5. 7
    Remove timing belt.
  6. 8
    Remove belt tensioner and return spring.
