Nissan 100NX N14 silhouetteN14

Timing Chain - Removal (Cont'd)

EM-87prose procedure

SR20DE/SR20DET engine timing chain removal procedure.

Continued from EM-86

Removal (Cont'd)

  1. 34

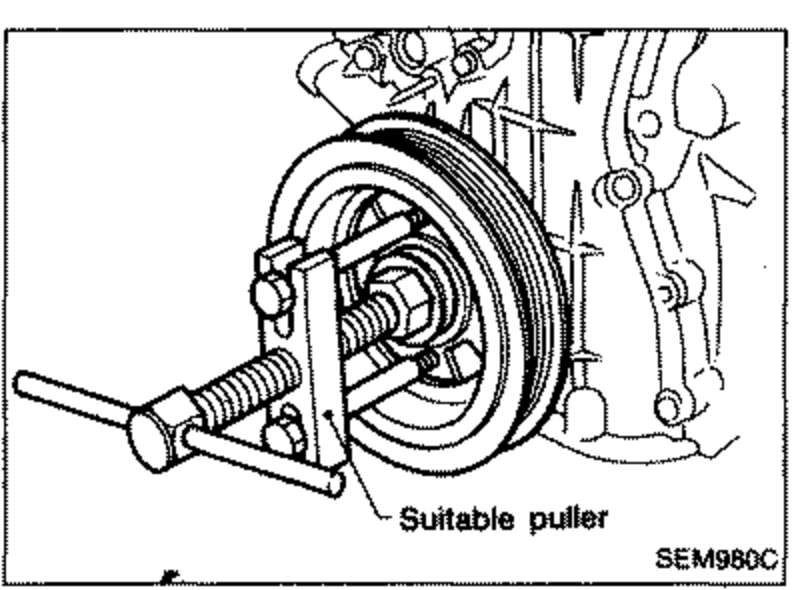

    Remove crankshaft pulley.
    Crankshaft pulley being removed with a puller tool. Labelled callout 'Suitable puller'.
    SEM980C
  2. 35

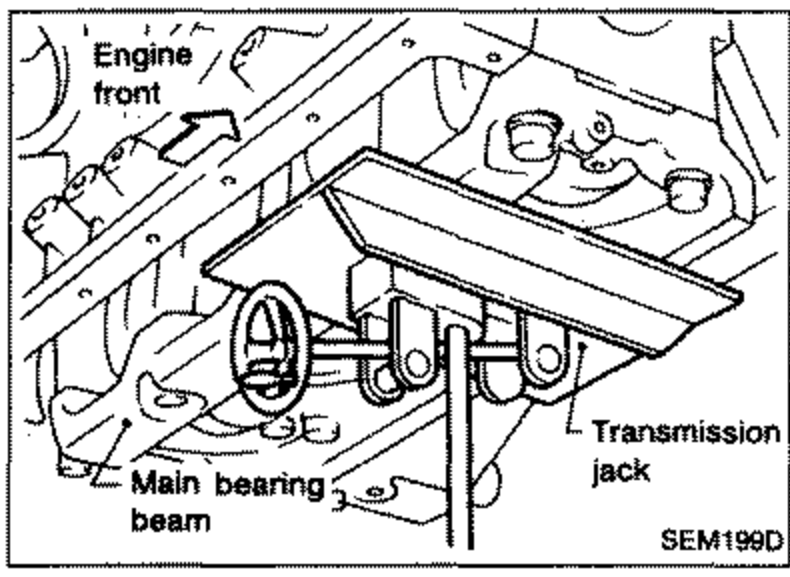

    Set a suitable transmission jack under main bearing beam.
    Transmission jack set under the main bearing beam. Labels: 'Engine front', 'Main bearing beam', 'Transmission jack'.
    SEM199D
  3. 36

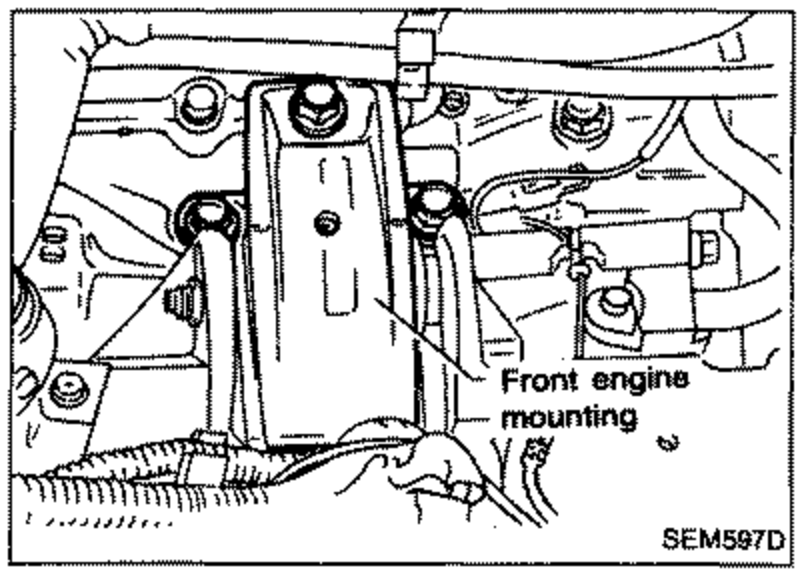

    Remove front engine mounting.
    Engine view showing the front engine mounting removal, with a labelled callout 'Front engine mounting'.
    SEM597D
  4. 37

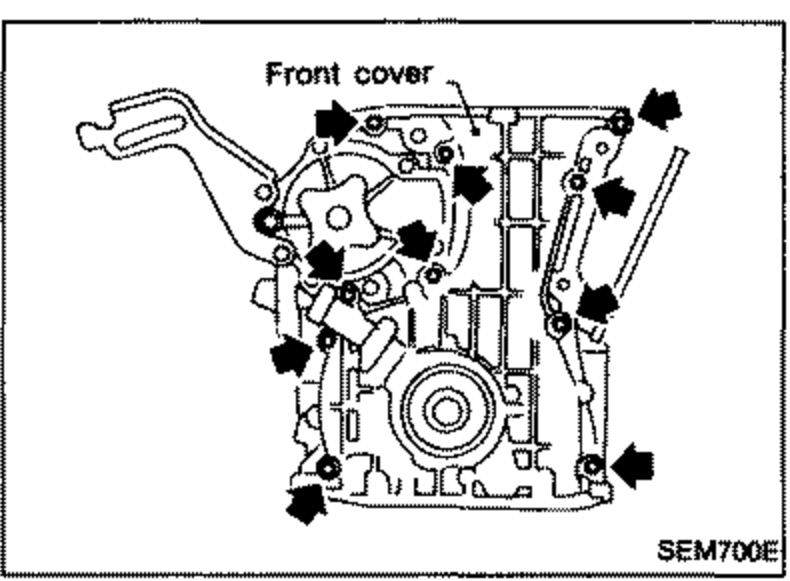

    Remove front cover.
    Front cover with arrows pointing to bolt locations for removal. Labelled callout 'Front cover'.
    SEM700E
  5. 38

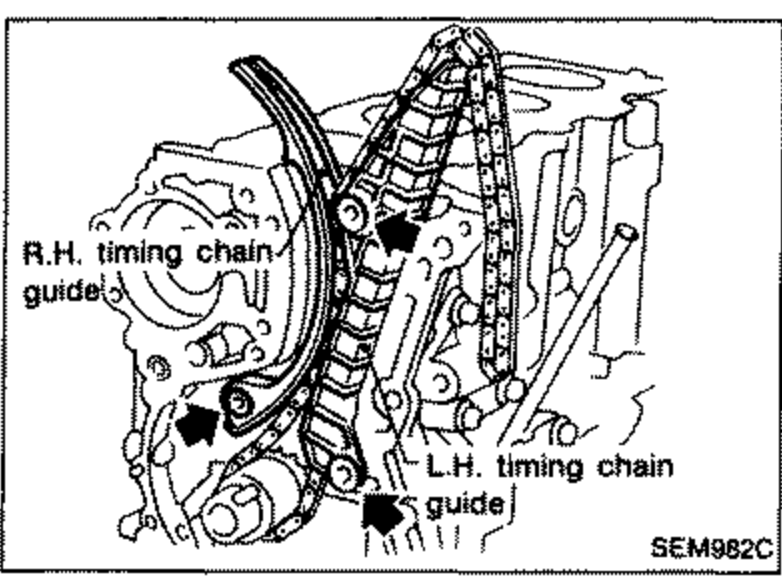

    Remove timing chain guides and timing chain.
    Timing chain guides and timing chain being removed. Labels: 'R.H. timing chain guide' and 'L.H. timing chain guide' with arrows.
    SEM962C
