THROTTLE CHAMBERS (SR20DET)
EM-107prose procedureApplies to SR20DET.
Installation

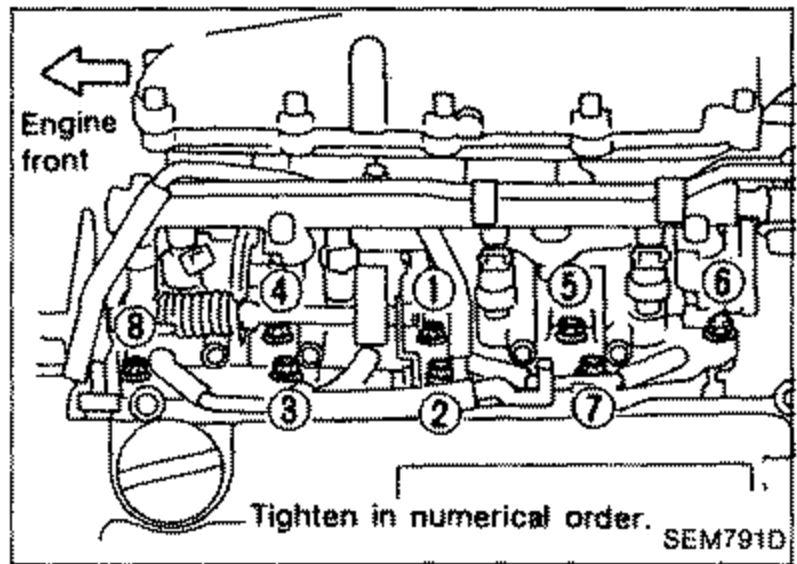

Throttle Chamber Installation
- 1Install throttle chamber assembly.Tighten in numerical order.
SEM791D
Adjustment
IMPORTANT
Adjust throttle chambers whenever any of the following parts (new or old) are installed.
Throttle chambers; Adjusting rods. The above adjustment is made to equalize the four throttle valve positions.
Throttle chamber adjustments
When old throttle chamber assembly is reused.
Parts to be adjustedRear adjusting rod*
When throttle chamber assembly is replaced with a new one.
Parts to be adjustedRear adjusting rod*
When rear throttle chamber or rear adjusting rod is replace with a new one.
Parts to be adjustedRear adjusting rod*
When rear adjusting rod is replaced with a new one.
Parts to be adjustedFront adjusting rod
When front throttle chamber is replaced with a new one.
Parts to be adjustedFront and rear adjusting rods
NOTE
*: Front adjusting rod is adjusted at the factory and normally requires no adjustment in the field.
